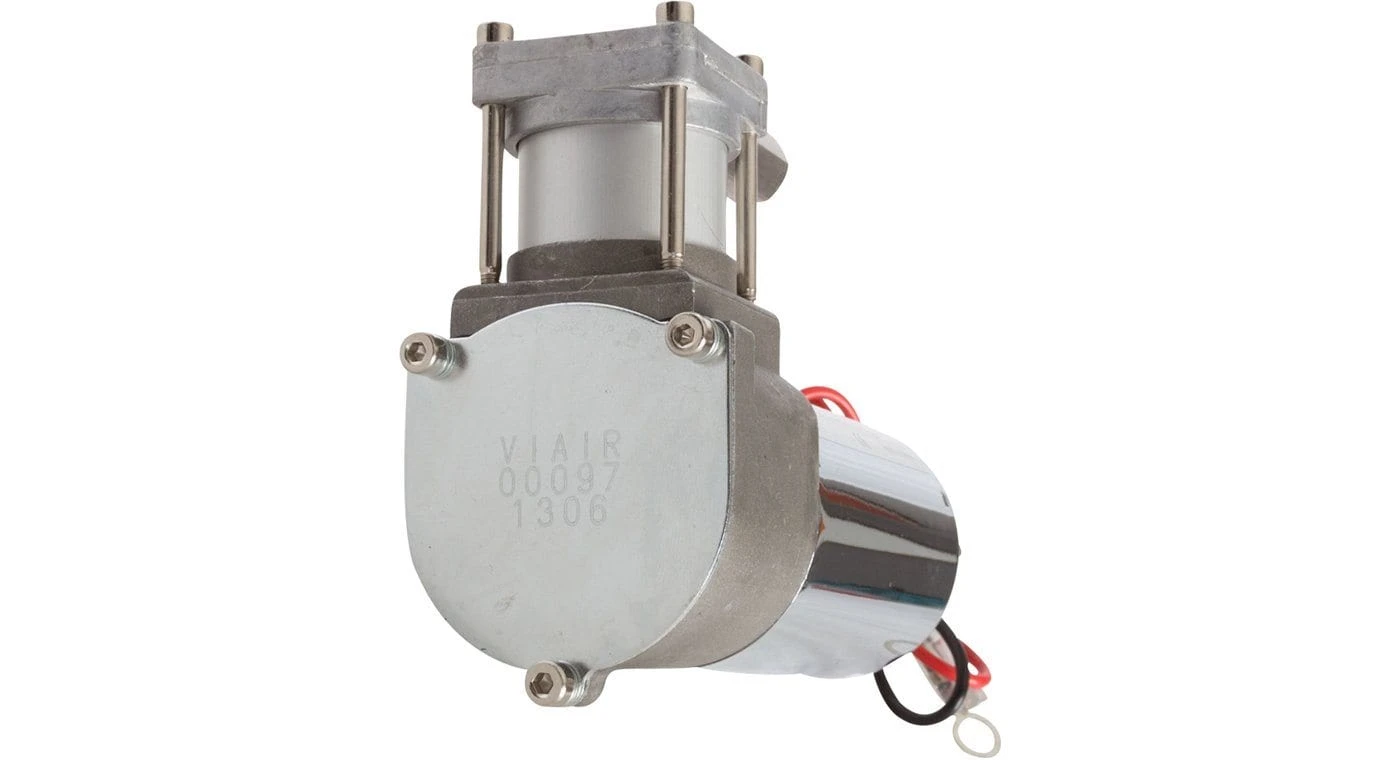

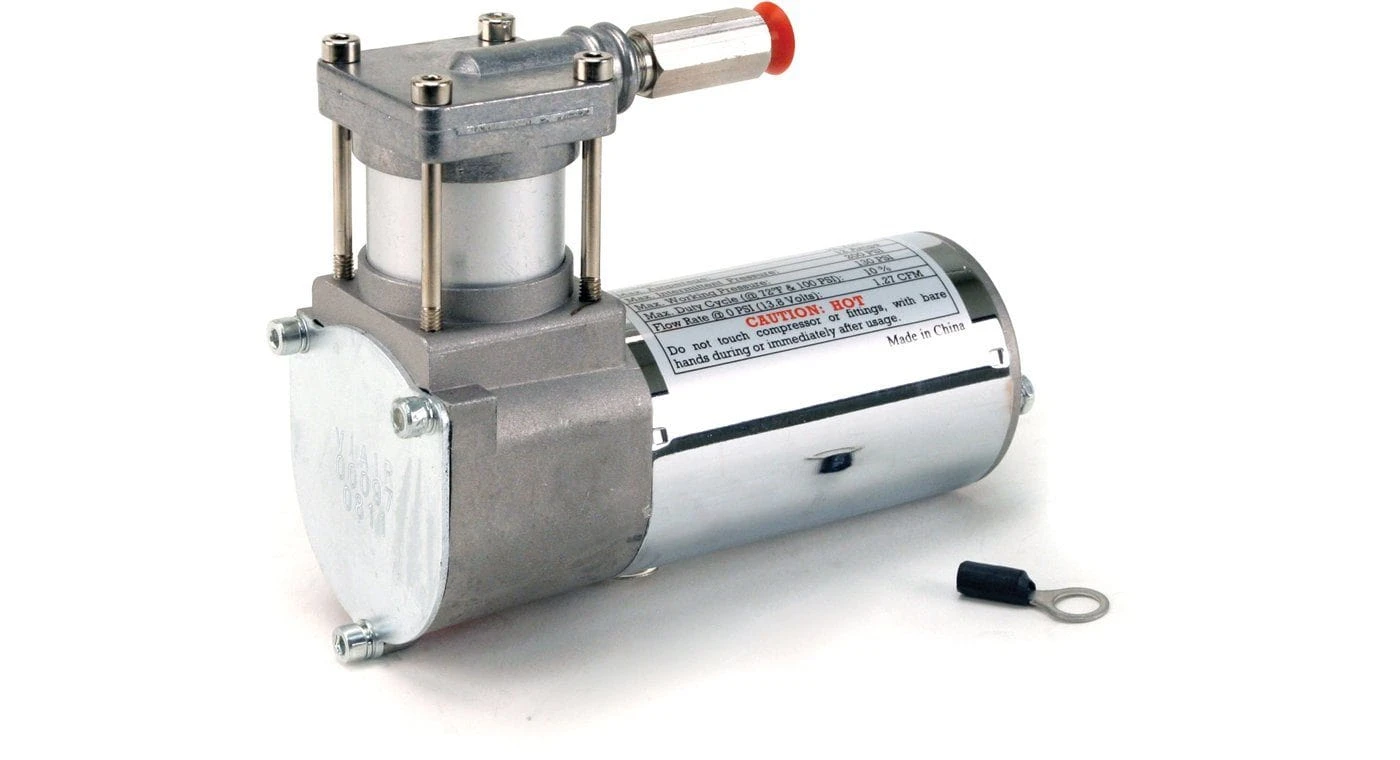

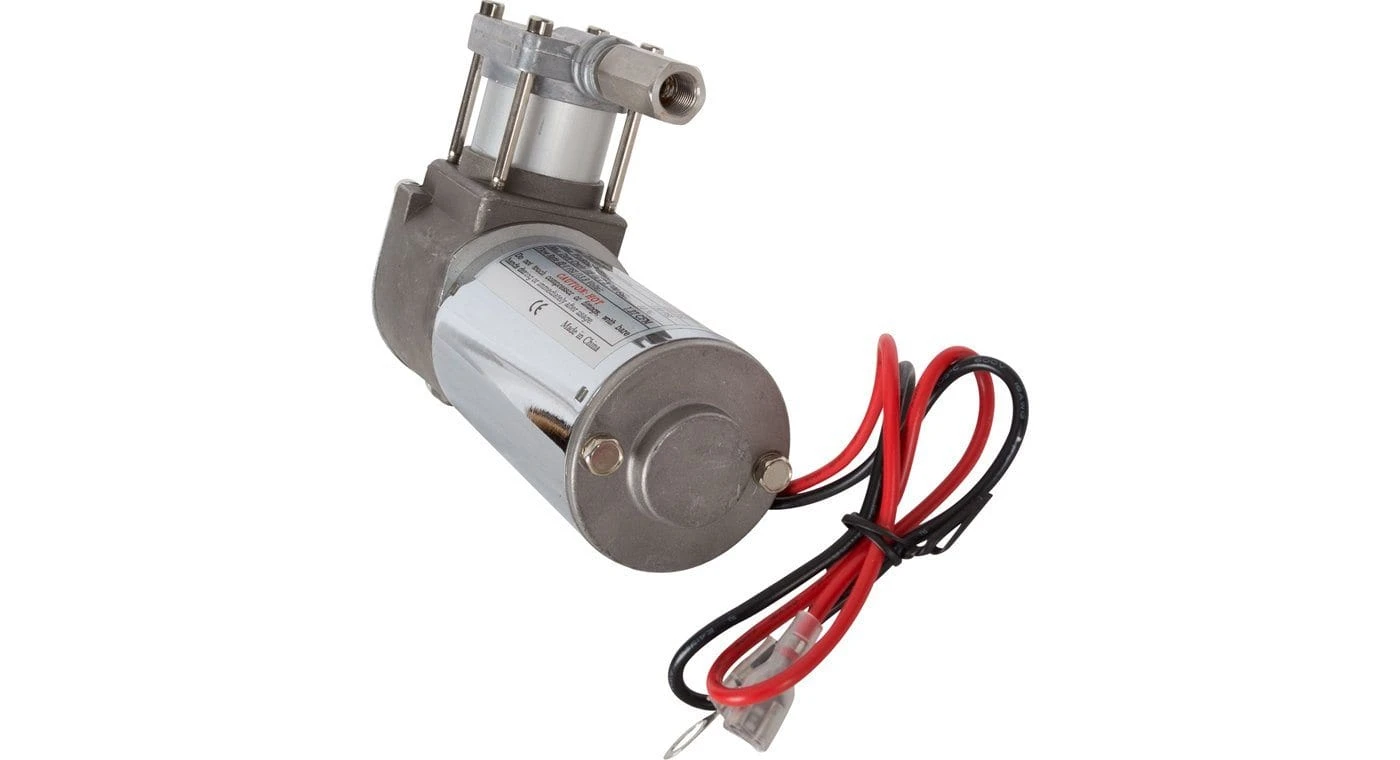

Viair 97C Silver Air Compressor

SIZE ISN’T EVERYTHING.

You won’t find a more cost-effective light-duty air compressor for your 1-gallon tank. The Viair 97C Silver Air Compressor delivers world-class performance in an unbelievably compact package, providing 1.53 CFM, able to recharge a 1-gallon tank from 90-130 PSI in only 45 seconds while only pulling 12 amps! The Viair 97C’s output and small installation footprint make it ideal for light pneumatic use, such as motorcycle suspension and air lockers. The Viair 97C features stainless steel internals, a well-balanced durable motor, rubber-isolated mounting feet as well as insulated electric terminals.

**To ensure the longevity and proper function of the air compressor, it is recommended to install it in a sheltered area, away from exposure to weather conditions and the elements.**

• Permanent Magnetic Motor
• Oil-less Design
• High-Performance PTFE Piston Ring
• Stainless Steel Valves
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates with Vibration Isolators
• Remote Mountable Intake Filter Assembly
• Insulated Wiring with Connectors

**24-volt compressors should always be wired to a 24-volt electrical system. Failure to do so can cause serious damage and void your warranty.**

12-VOLT COMPRESSOR
PSI	CFM	A	BAR	LPM	A
0	1.53	7	0	43.5	7
10	1.00	9	1.0	28.0	9
20	0.95	10	2.0	25.5	11
30	0.90	11	3.0	22.7	11
40	0.85	11	4.0	20.7	12
50	0.77	12	5.0	18.3	12
60	0.72	12	6.0	16.3	12
70	0.65	12	7.0	13.7	12
80	0.60	12	8.0	11.7	12
90	0.54	12	9.0	10.0	11
100	0.48	12
110	0.44	12
120	0.39	12
130	0.35	11

* Supply Voltage: 13.8 Volts

12-VOLT COMPRESSOR
0.5 GALLON TANK	FILL RATE
0 to 105 PSI	50 sec. (± 05 sec.)
85 to 105 PSI	15 sec. (± 03 sec.)
0 to 120 PSI	1 min. 05 sec. (± 05 sec.)
90 to 120 PSI	21 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 40 sec. (± 10 sec.)
85 to 105 PSI	30 sec. (± 05 sec.)
0 to 120 PSI	2 min. 10 sec. (± 10 sec.)
90 to 120 PSI	45 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

24-VOLT COMPRESSOR
PSI	CFM	A	BAR	LPM	A
0	1.27	4	0	36.0	4
10	1.09	5	1.0	28.5	5
20	1.03	5	2.0	26.5	5
30	0.96	5	3.0	24.7	6
40	0.90	6	4.0	21.7	6
50	0.83	6	5.0	19.7	7
60	0.76	6	6.0	17.0	7
70	0.70	6	7.0	14.3	7
80	0.63	7	8.0	11.7	7
90	0.56	7	9.0	8.7	6
100	0.51	7
110	0.42	7
120	0.35	7
130	0.31	6

* Supply Voltage: 28.0 Volts

24-VOLT COMPRESSOR
0.5 GALLON TANK	FILL RATE
0 to 105 PSI	50 sec. (± 05 sec.)
85 to 105 PSI	15 sec. (± 03 sec.)
0 to 120 PSI	1 min. 03 sec. (± 05 sec.)
90 to 120 PSI	20 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 40 sec. (± 05 sec.)
85 to 105 PSI	30 sec. (± 05 sec.)
0 to 120 PSI	2 min. 05 sec. (± 05 sec.)
90 to 120 PSI	45 sec. (± 05 sec.)

 * Supply Voltage: 28.0 Volts

• Viair 97C Air Compressor Manual
• Viair 97C Air Compressor Wiring Diagram
• Viair 97C Air Compressor Dimensional Drawing

• Viair 97c Air Compressor
• Mounting Hardware
• Installation Instructions

• Part Number: AC-97
• Manufacturers Part Number: 00097
• Voltage: 12 Volts DC
• Max Amperage: 12 Amps
• Maximum Duty Cycle: 10% @ 100 PSI
• Maximum Pressure: 130 PSI
• Max Tank Size: 1 Gallon
• CFM @ 0 PSI: 1.03 CFM
• CFM @ 100 PSI: 0.39 CFM
• Length: 5.6″ (139.5 mm)
• Width: 2.2″ (56 mm)
• Height: 4.4″ (112.5 mm)
• Weight: 2.50 lb (1.13 Kg)

• Part Number: AC-97-24
• Manufacturers Part Number: 02495
• Voltage: 24 Volts DC
• Max Amperage: 7 Amps
• Maximum Duty Cycle: 10% @ 100 PSI
• Maximum Pressure: 130 PSI
• Max Tank Size: 1 Gallon
• CFM: 1.27 CFM
• Length: 5.6″ (139.5 mm)
• Width: 2.2″ (56 mm)
• Height: 4.4″ (112.5 mm)
• Weight: 2.50 lb (1.13 Kg)
