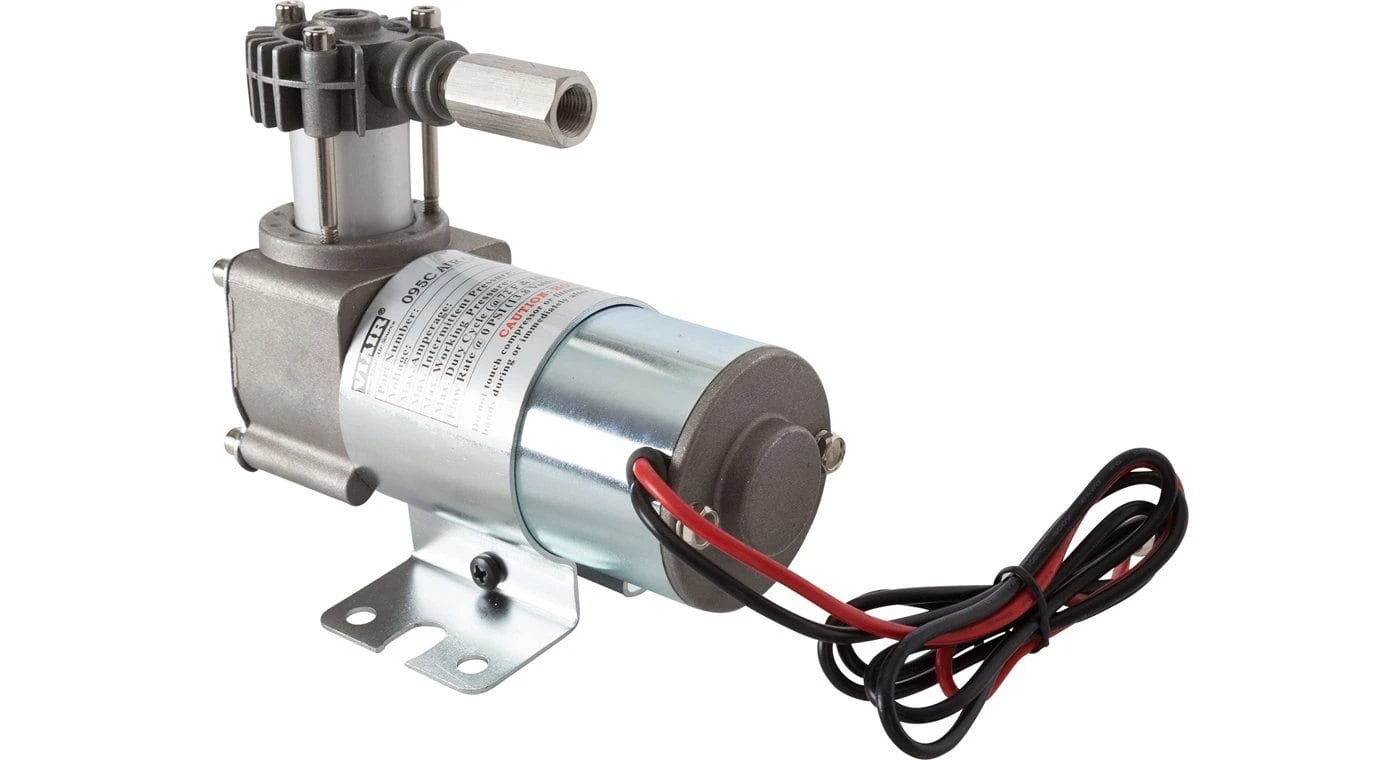

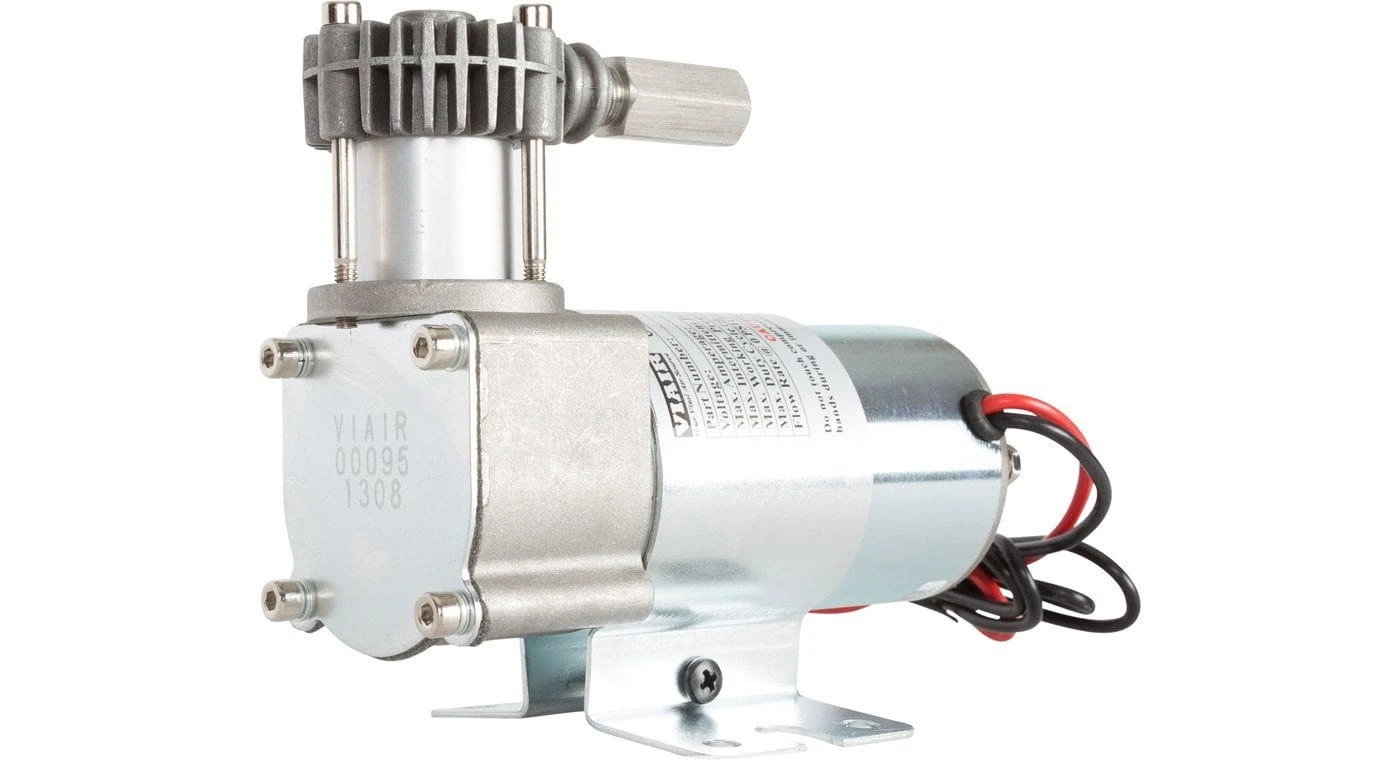

Viair 95C Silver Air Compressor

MINI MEANS MIGHTY.

If you’re looking for a small but formidable air compressor, look no further than the Viair 95C silver. This little wonder can handle your motorcycle air suspension and air lockers with ease, delivering 120 PSI of pure force. It can fill up a 1-gallon tank in less than a minute, and it won’t drain your battery with its low amp draw. The Viair 95C comes with an Omega Bracket for easy installation, and you can choose between 12-volt and 24-volt options. The Viair 95C is the ultimate mobile air solution for your big adventures.

**To ensure the longevity and proper function of the air compressor, it is recommended to install it in a sheltered area, away from exposure to weather conditions and the elements.**

• Permanent Magnetic Motor
• Oil-less Design
• High-Performance PTFE Piston Ring
• Stainless Steel Valves
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Remote Mountable Intake Filter Assembly
• Insulated Wiring with Connectors

**24-volt compressors should always be wired to a 24-volt electrical system. Failure to do so can cause serious damage and void your warranty.**

#12Volt

12-VOLT COMPRESSOR
PSI	CFM	A	BAR	LPM	A
0	1.03	7	0	29.0	7
10	0.71	8	1.0	19.0	8
20	0.67	8	2.0	18.0	9
30	0.64	9	3.0	16.5	9
40	0.60	9	4.0	15.0	10
50	0.57	9	5.0	13.5	10
60	0.53	10	6.0	12.5	10
70	0.48	10	7.0	11.0	10
80	0.45	10	8.0	10.0	9
90	0.43	10
100	0.39	9
110	0.36	9
120	0.34	9

* Supply Voltage: 13.8 Volts

12-VOLT COMPRESSOR
0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 08 sec. (± 05 sec.)
85 to 105 PSI	16 sec. (± 03 sec.)
0 to 120 PSI	1 min. 23 sec. (± 05 sec.)
90 to 120 PSI	27 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 20 sec. (± 10 sec.)
85 to 105 PSI	35 sec. (± 05 sec.)
0 to 120 PSI	3 min. 04 sec. (± 10 sec.)
90 to 120 PSI	54 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

#24Volt

24-VOLT COMPRESSOR
PSI	CFM	A	BAR	LPM	A
0	1.03	4	0	29.0	4
10	0.71	4	1.0	19.0	4
20	0.67	4	2.0	18.0	4
30	0.64	4	3.0	16.5	5
40	0.60	5	4.0	15.0	5
50	0.57	5	5.0	13.5	5
60	0.53	5	6.0	12.5	5
70	0.48	5	7.0	11.0	5
80	0.45	5	8.0	10.0	5
90	0.43	5
100	0.39	5
110	0.36	5
120	0.34	5

* Supply Voltage: 28.0 Volts

24-VOLT COMPRESSOR
0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 05 sec. (± 05 sec.)
85 to 105 PSI	15 sec. (± 03 sec.)
0 to 120 PSI	1 min. 20 sec. (± 05 sec.)
90 to 120 PSI	25 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 10 sec. (± 10 sec.)
85 to 105 PSI	31 sec. (± 05 sec.)
0 to 120 PSI	2 min. 40 sec. (± 10 sec.)
90 to 120 PSI	50 sec. (± 05 sec.)

 * Supply Voltage: 28.0 Volts

• Viair 95C Air Compressor Manual
• Viair 95C Air Compressor Wiring Diagram
• Viair 95C Air Compressor Dimensional Drawing

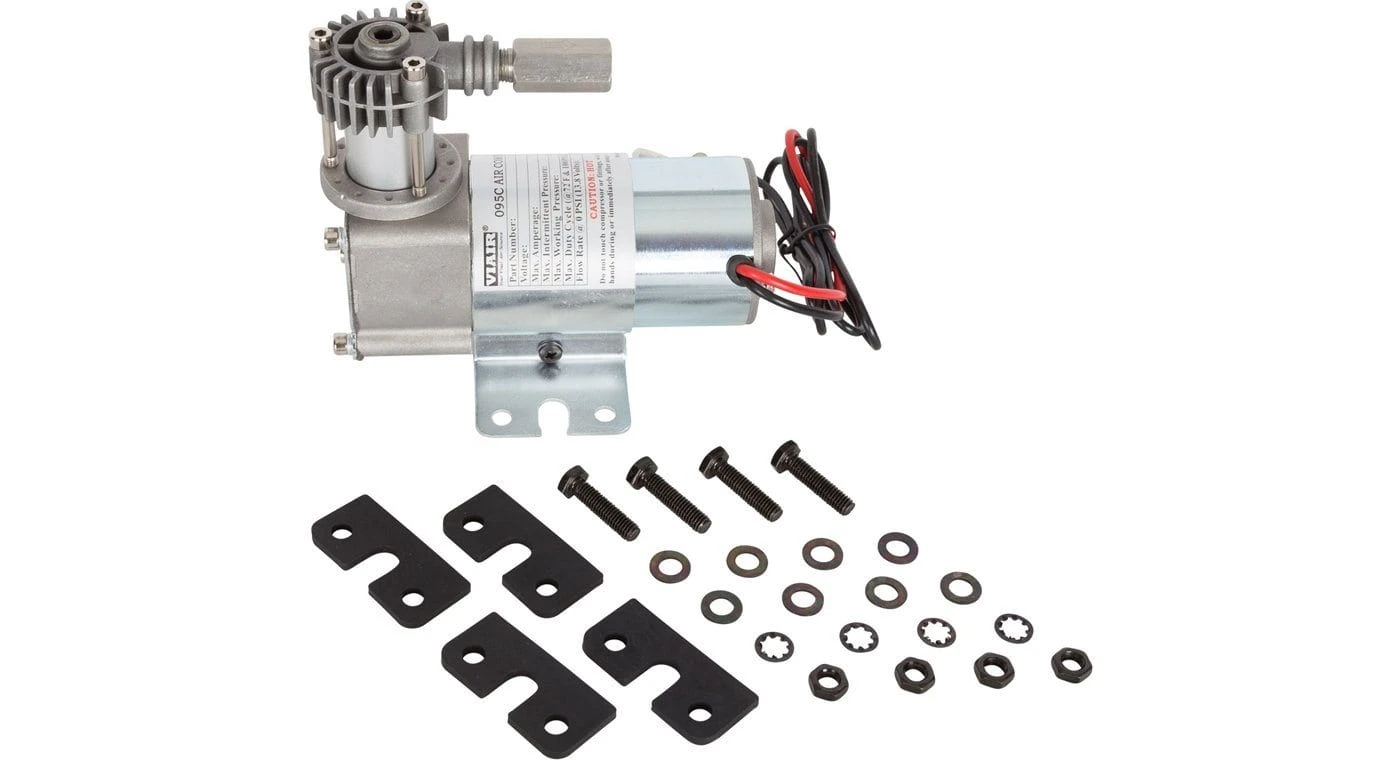

• Viair 95c Air Compressor
• Mounting Hardware
• Omega Style Mounting Bracket
• Installation Instructions
• Direct Mount Air Filter Assembly

#12Volt

• Part Number: AC-95
• Manufacturers Part Number: 00095
• Voltage: 12 Volts DC
• Max Amperage: 10 Amps
• Duty Cycle: 9% @ 100 PSI
• Maximum Pressure: 120 PSI
• Ingress Protection Rating: IP54
• Max Tank Size: 1 Gallon
• CFM @ 0 PSI: 1.03 CFM
• CFM @ 100 PSI: 0.39 CFM
• Length: 5.4″ (137.16 mm)
• Width: 3.1″ (78.74 mm)
• Height: 4.6″ (116.84 mm)
• Weight: 2.50 lb (1.13 Kg)

#24Volt

• Part Number: AC-95-24
• Manufacturers Part Number: 02495
• Voltage: 24 Volts DC
• Max Amperage: 5 Amps
• Duty Cycle: 9% @ 100 PSI
• Maximum Pressure: 120 PSI
• Ingress Protection Rating: IP54
• Max Tank Size: 1 Gallon
• CFM @ 0 PSI: 1.03 CFM
• CFM @ 100 PSI: 0.39 CFM
• Length: 5.4″ (137.16 mm)
• Width: 3.1″ (78.74 mm)
• Height: 4.6″ (116.84 mm)
• Weight: 2.50 lb (1.13 Kg)
