Description

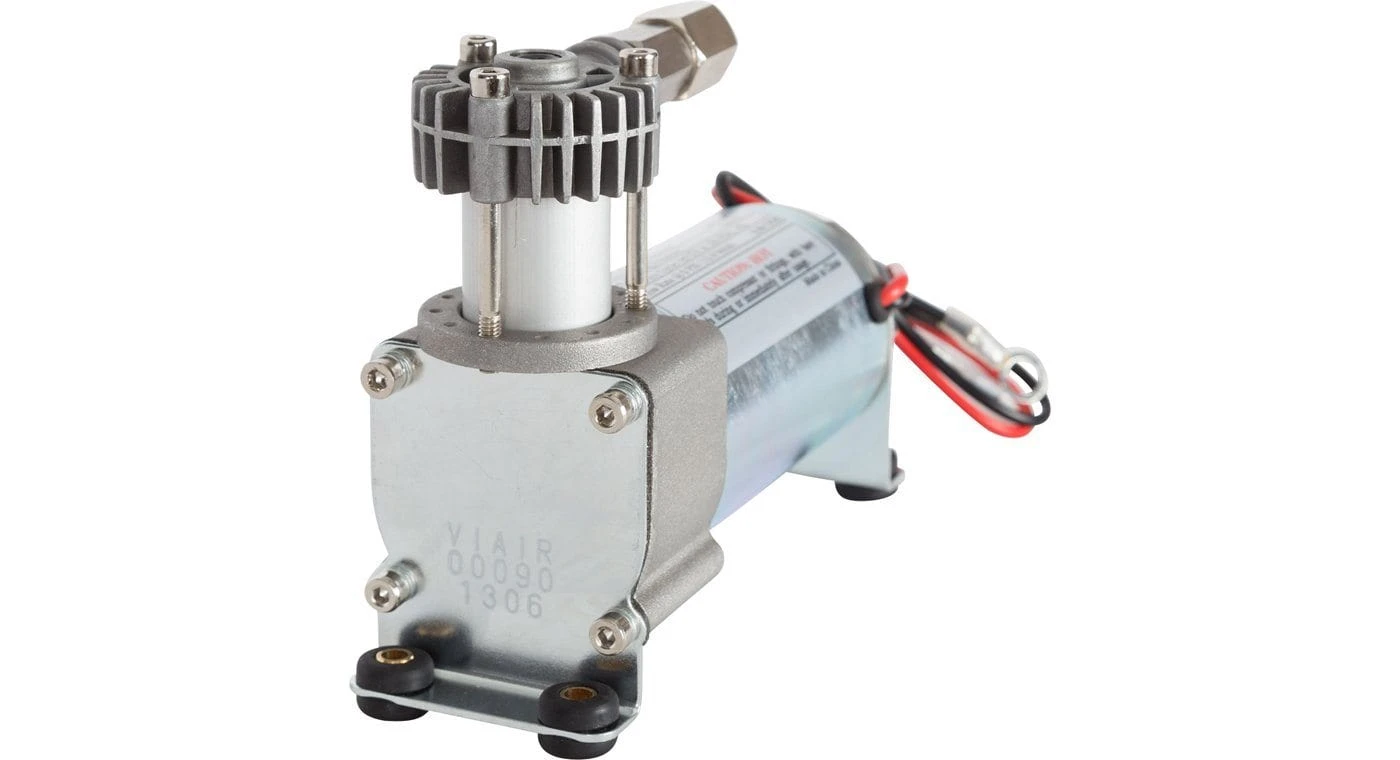

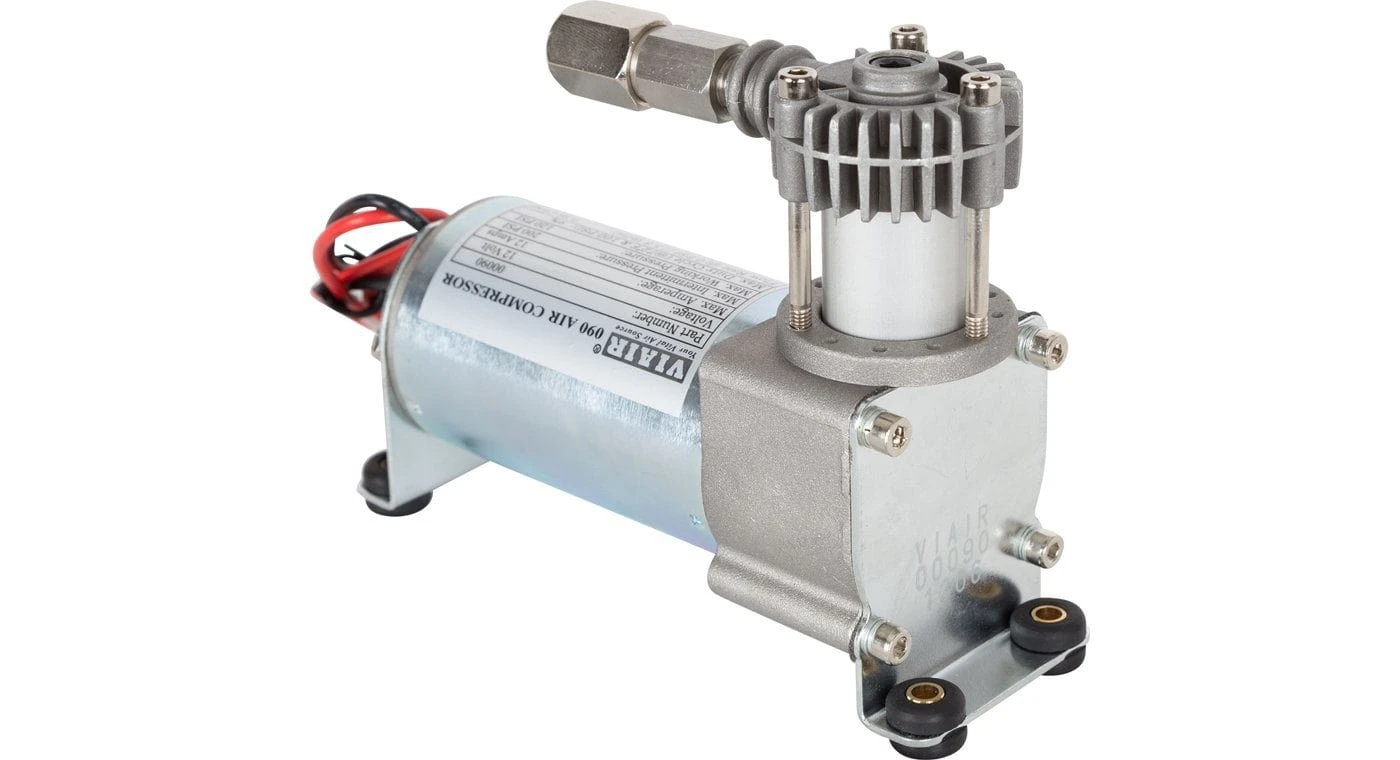

THE ITSY BITSY AIR BOSS.
The little powerhouse that packs a wallop! The Viair 90C is the perfect air solution for those who have limited space but big air needs. Whether you’re pumping up your motorcycle’s suspension or powering robots at a robotics competition, this compact air compressor will get the job done quickly. Don’t be fooled by its small size, the Viair 90C is a mini marvel that’s always ready to inflate!
**To ensure the longevity and proper function of the air compressor, it is recommended to install it in a sheltered area, away from exposure to weather conditions and the elements.**
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Remote Mountable Intake Filter Assembly
- Insulated Wiring with Connectors
![]()
Performance Data & Fill Rates
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.03 | 7 | 0 | 29.0 | 9 |
| 10 | 0.71 | 8 | 1.0 | 19.0 | 10 |
| 20 | 0.67 | 11 | 2.0 | 18.0 | 11 |
| 30 | 0.64 | 11 | 3.0 | 16.5 | 12 |
| 40 | 0.60 | 12 | 4.0 | 15.0 | 13 |
| 50 | 0.57 | 12 | 5.0 | 13.5 | 12 |
| 60 | 0.53 | 13 | 6.0 | 12.5 | 12 |
| 70 | 0.48 | 13 | 7.0 | 11.0 | 12 |
| 80 | 0.45 | 12 | 8.0 | 10.0 | 12 |
| 90 | 0.43 | 12 | |||
| 100 | 0.39 | 12 | |||
| 110 | 0.36 | 12 | |||
| 120 | 0.34 | 12 |
* Supply Voltage: 13.8 Volts
| 0.5 Gallon Tank | Fill Rate |
|---|---|
| 0 to 105 PSI | 1 min. 08 sec. (± 05 sec.) |
| 85 to 105 PSI | 16 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 23 sec. (± 05 sec.) |
| 90 to 120 PSI | 27 sec. (± 03 sec.) |
| 1.0 Gallon Tank | Fill Rate |
| 0 to 105 PSI | 2 min. 20 sec. (± 10 sec.) |
| 85 to 105 PSI | 35 sec. (± 05 sec.) |
| 0 to 120 PSI | 3 min. 04 sec. (± 10 sec.) |
| 90 to 120 PSI | 54 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
Diagrams & Manuals
- Viair 90C Air Compressor Manual
- Viair 90C Air Compressor Wiring Diagram
- Viair 90C Air Compressor Dimensional Drawing

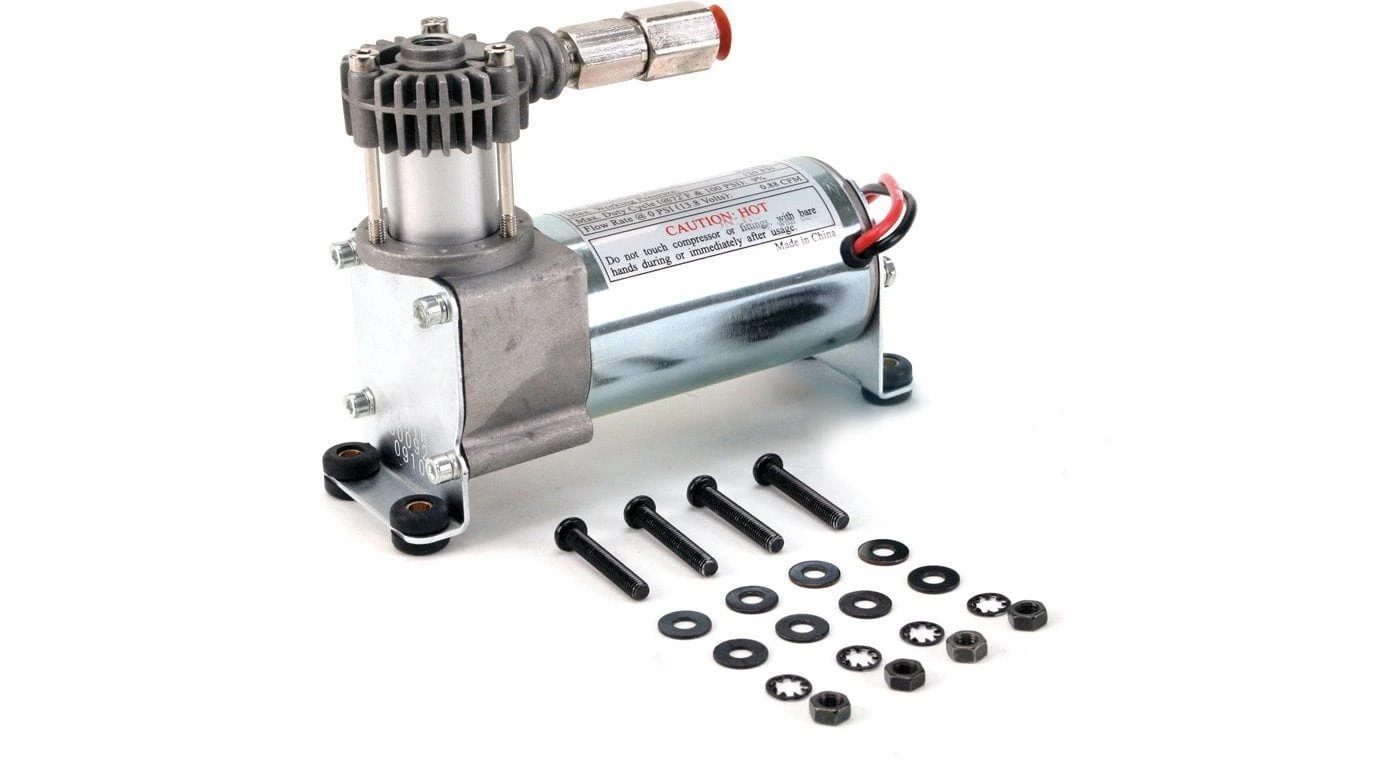

Includes
- Viair 90c Air Compressor
- Mounting Hardware
- Installation Instructions
Specifications
- Part Number: AC-90
- Manufacturers Part Number: 00090
- Voltage: 12 Volts DC
- Max Amperage: 10 Amps
- Duty Cycle: 9% @ 100 PSI
- Maximum Pressure: 120 PSI
- Ingress Protection Rating: IP54
- Max Tank Size: 1.0 Gallon
- CFM @ 0 PSI: 1.03 CFM
- CFM @ 100 PSI: 0.39 CFM
- Length: 5.9″ (151 mm)
- Width: 2.1″ (53.6 mm)
- Height: 4.5″ (115 mm)
- Weight: 2.50 lb (1.13 Kg)
