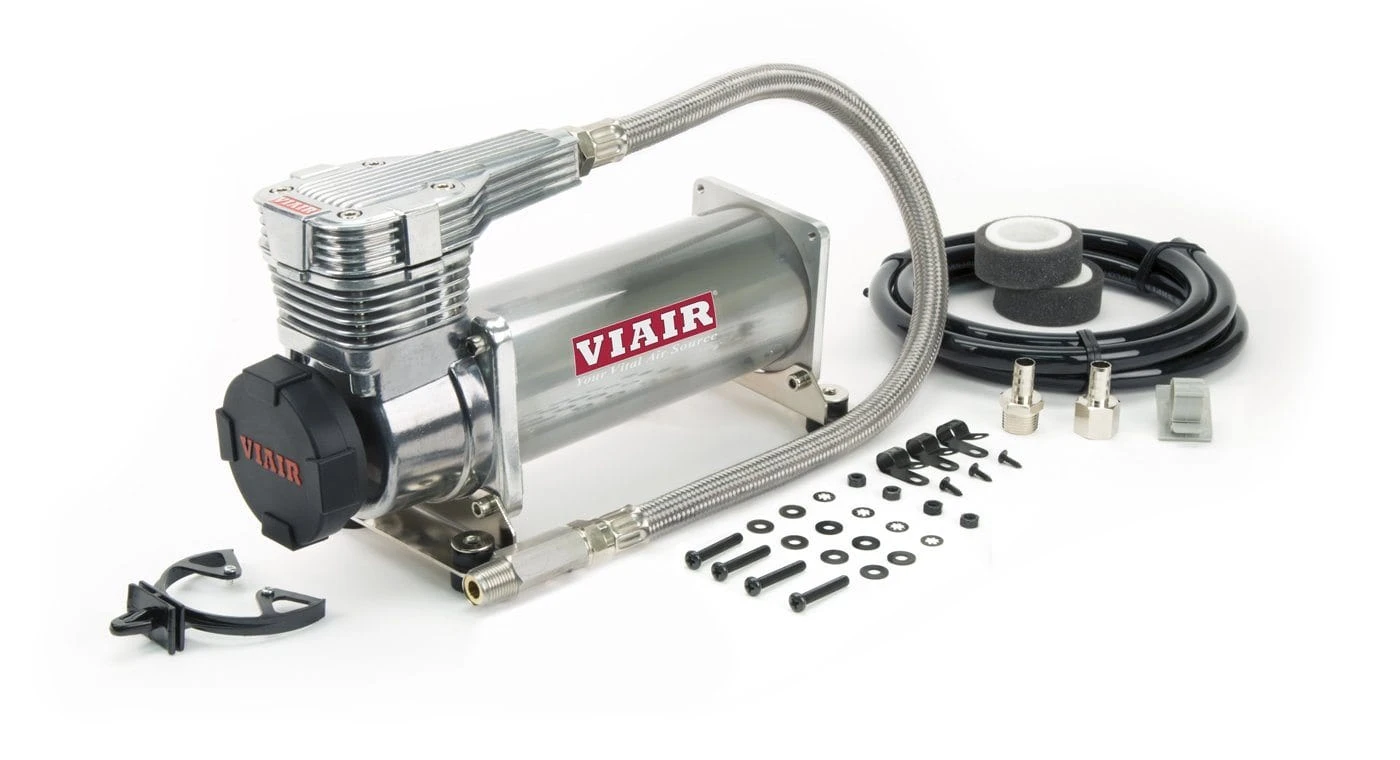

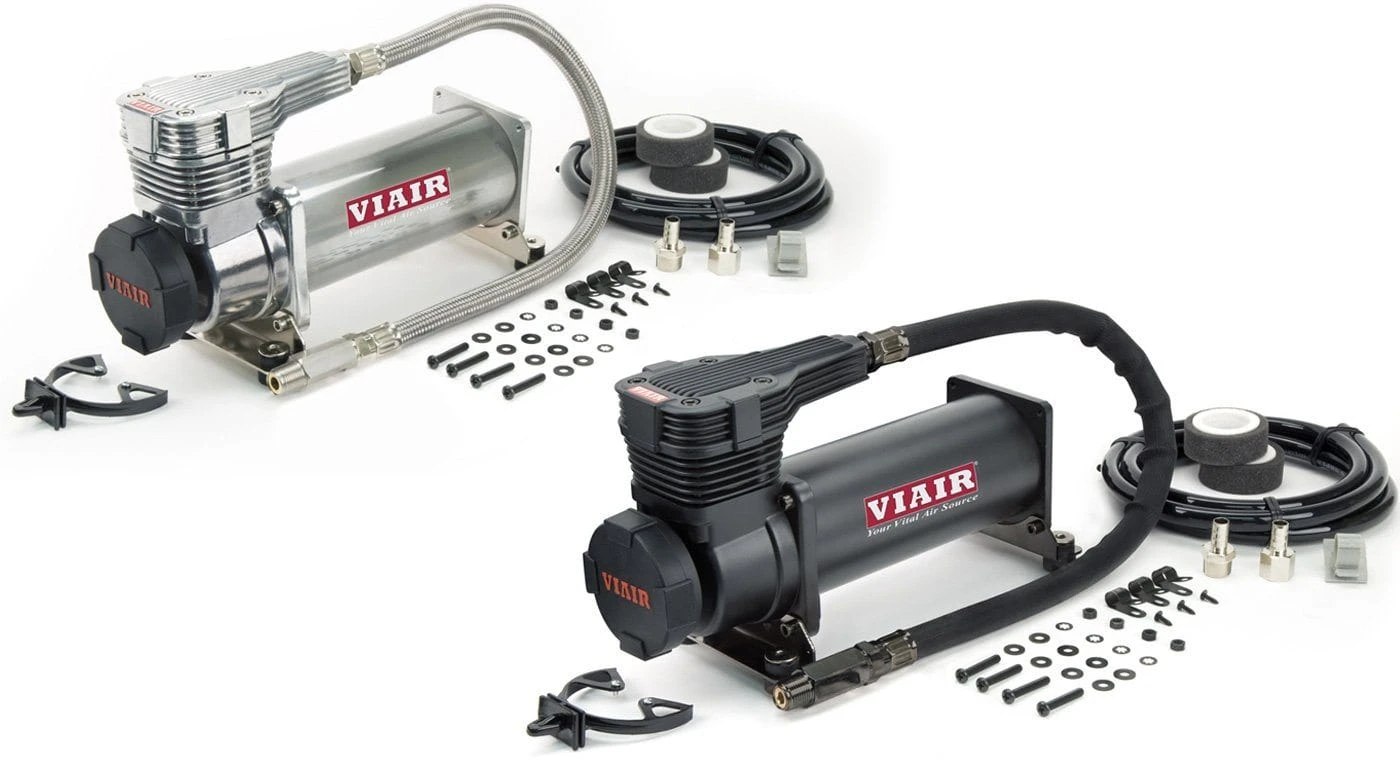

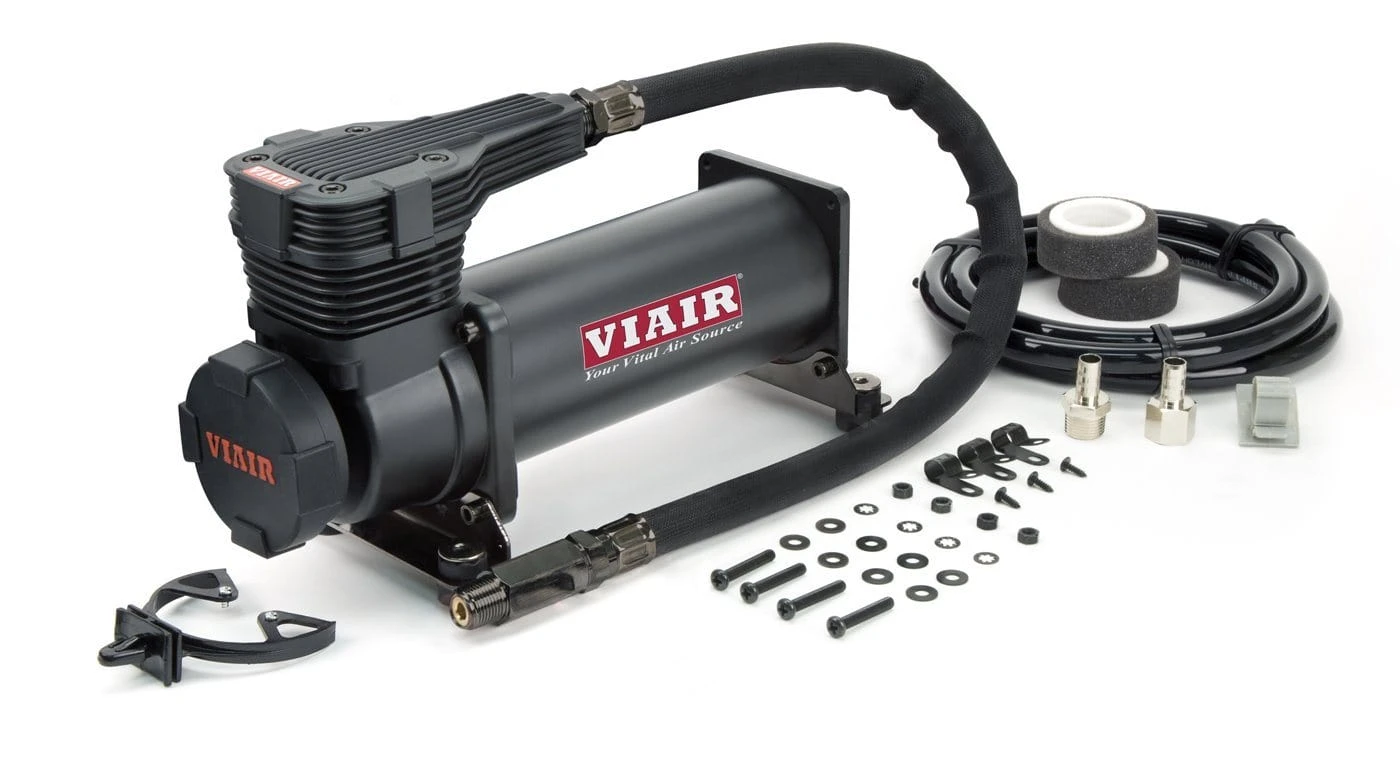

Viair 485C Air Compressor

FILL YOUR NEED FOR SPEED.

Step into the future of pneumatic technology with the Viair 485C Air Compressor—a beacon of innovation, reliability, and unmatched performance. Tailored for those who refuse to compromise, this unit delivers exceptional speed, backed by robust and consistent operations, making it the choice for enthusiasts and professionals alike.

• Unmatched Performance: Operating at a 100% duty cycle up to 200 PSI, the Viair 485C is versatile and dynamic—whether you’re fueling horns, powering air suspension, using air tools, or inflating tires, it’s the go-to compressor.
• Rapid Recharge Times: Recover a 2.5-gallon tank from 165-200 PSI in just 1 minute and 15 seconds. Need to handle a 5-gallon tank? Go from 165-200 PSI in under 2.5 minutes. That’s efficiency at its best.
• Complete Installation Kit: Comes with a remote mountable intake filter assembly for positioning up to 6 feet away, ensuring protection against moisture and debris, stainless steel braided leader hose with check valve, and insulated wiring for a hassle-free setup.
• Premium Build Quality: Expect nothing short of excellence with features like a permanent magnetic motor, high-performance PTFE piston ring, stainless steel valves, gearless direct drive motor, anodized aluminum alloy cylinder, and automatic reset thermal overload protector.
• Enhanced Safety & Durability: The compressor is engineered to be moisture and dirt-resistant, featuring mounting plates with vibration isolators for minimized noise and a remote mount intake filter assembly for optimal filtration.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

 * Supply Voltage: 13.8 Volts

* Supply Voltage: 13.8 Volts

• Viair 485C Air Compressor Manual
• Viair 485C Air Compressor Wiring Diagram
• Viair 485C Air Compressor Dimensional Drawing

• Viair 485C Air Compressor
• 3/8″ NPT Braided Leader Hose & Check Valve
• Remote Mount Two-Stage Air Filter
• Replacement Filter Elements
• 1 Year ManufactureR’s Defect Warranty
• Mounting Hardware

• Part Number: AC-485K / AC-485L
• Manufacturers Part Number: 48502 / 48500
• Voltage: 12 Volts DC
• Max Amperage: 23 amps
• Maximum Duty Cycle: 100% @ 200 PSI
• Maximum Pressure: 200 PSI
• Max Tank Size: 5 Gallons
• CFM @ 0 PSI: 2.24 CFM
• Compressor Length: 10.63″ (270 mm)
• Compressor Width: 4.1″ (104.14 mm)
• Compressor Height: 6.44″ (163.57 mm)
• Weight: 11.10 lb (5.01 Kg)
