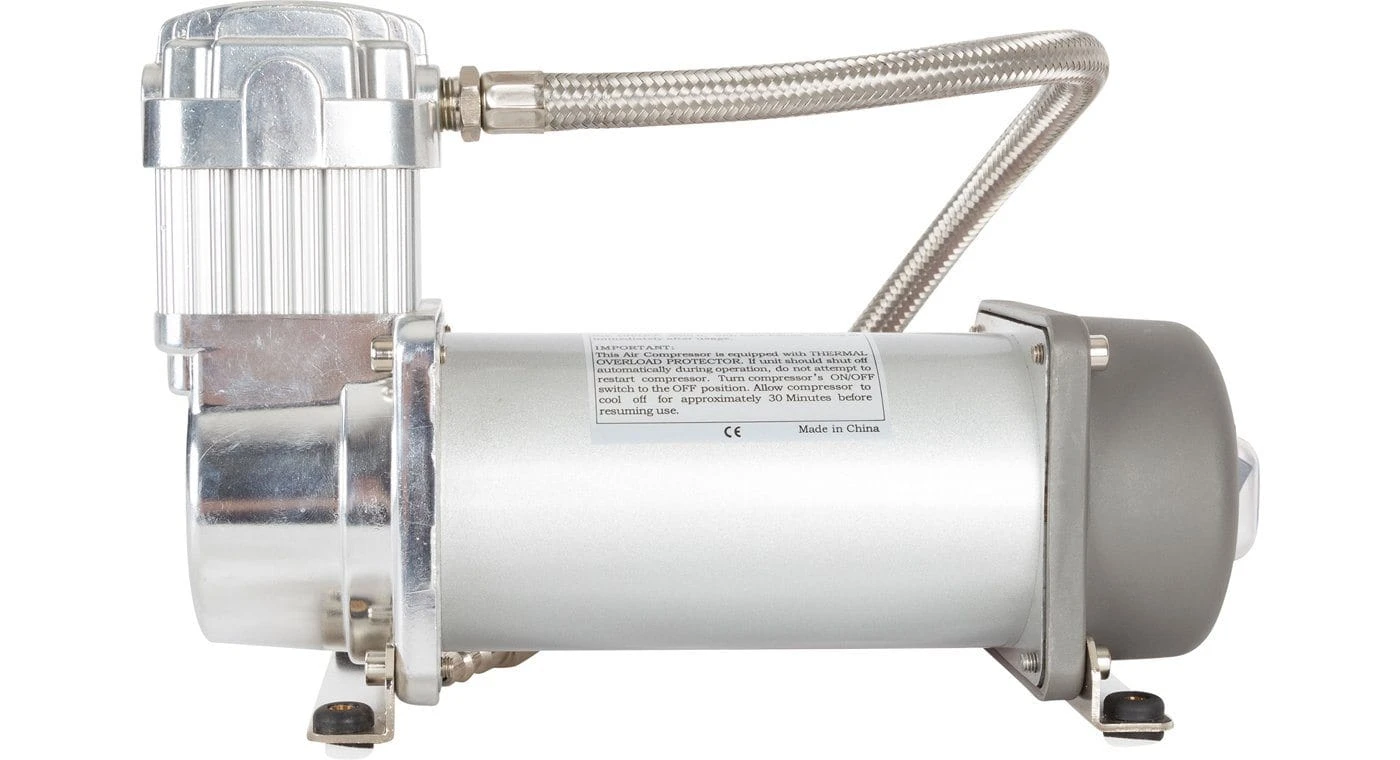

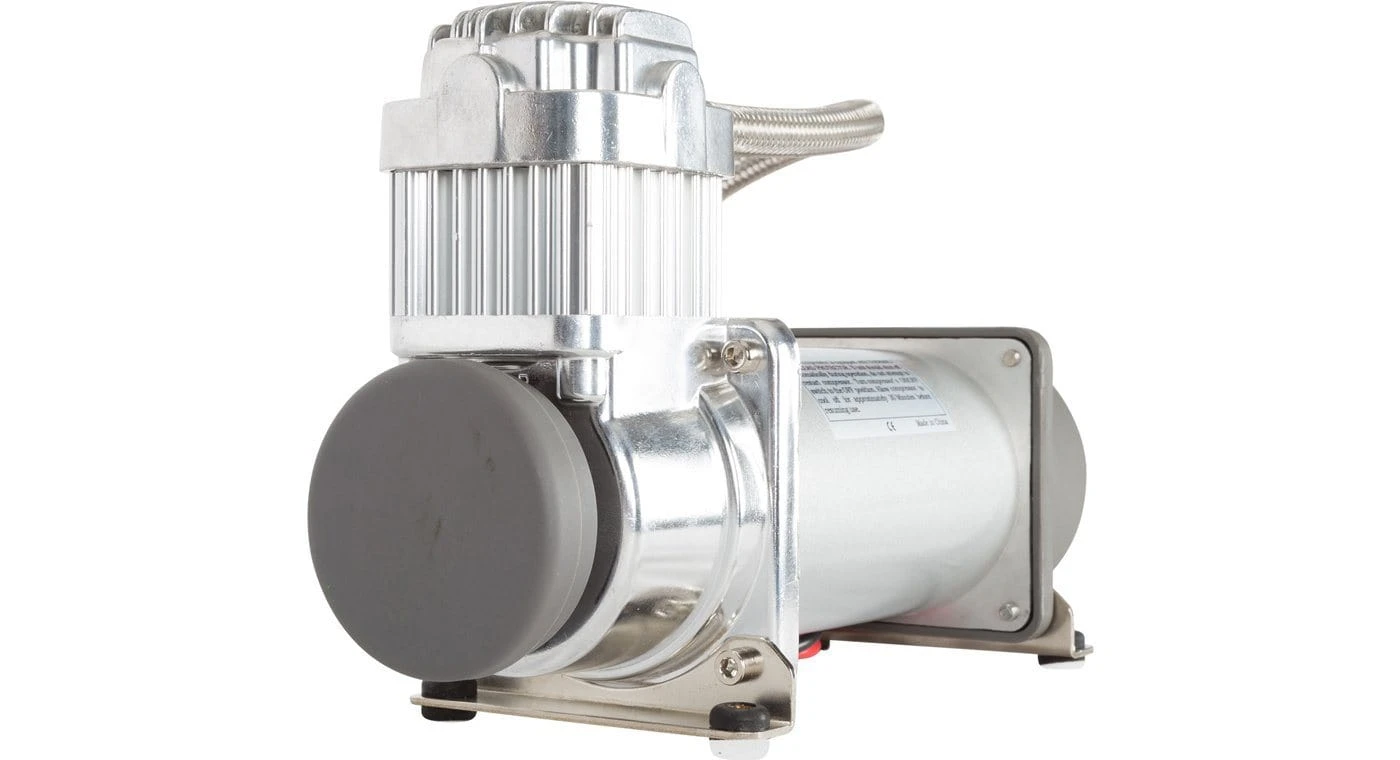

Viair 400H Hardmount Air Compressor

35″ TIRES DON’T STAND A CHANCE!

Want to be able to air up your tires without having to worry about installing an entire onboard air system? With the Viair 400H Hardmount Air Compressor, you get the on-demand air that you need straight from the compressor. No tank needed! Fill up directly from an air chuck attached to the included 1/4″ Quick Connect Stud. Producing a massive 2.3 CFM flow at zero PSI head pressure, Viair 400H easily fills a 35” X 12.5” tire from empty to full in under five and a half minutes.

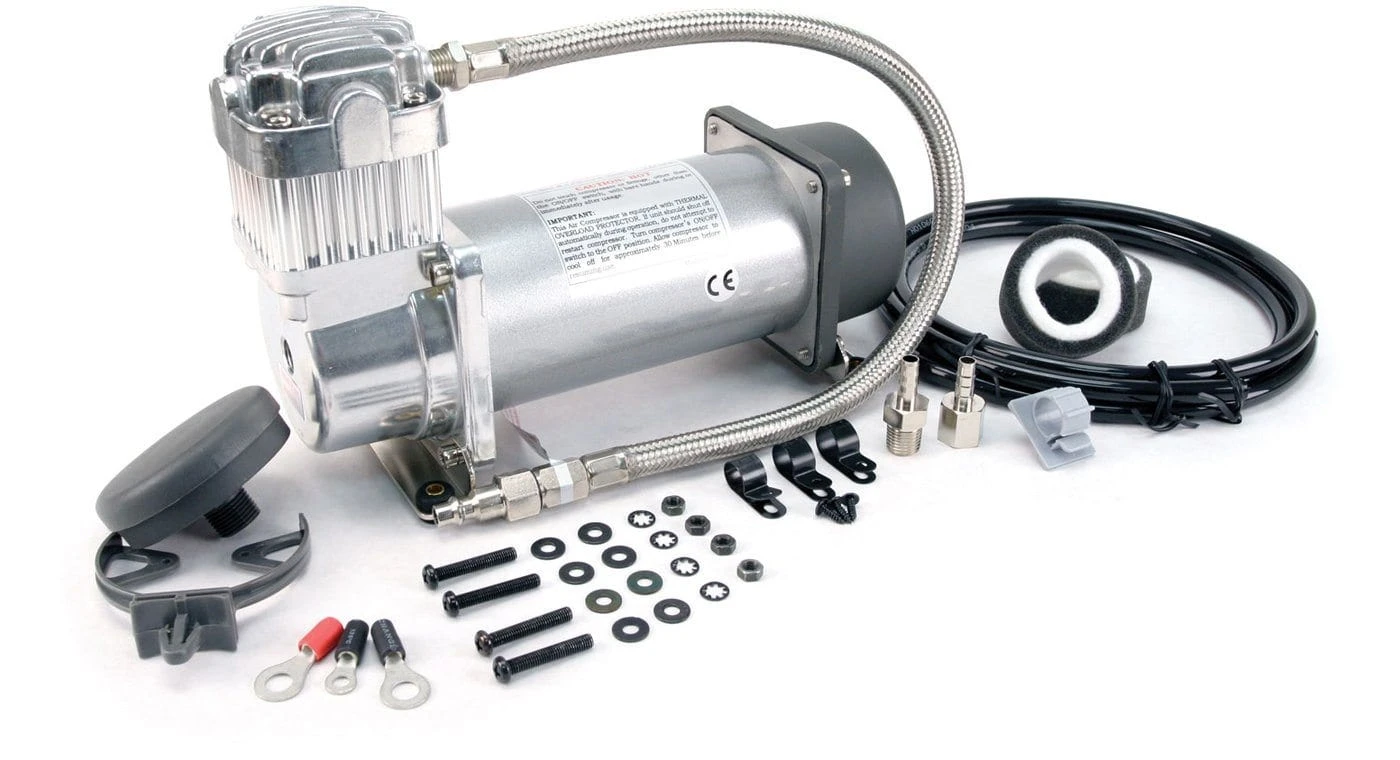

The Viair 400H comes with a built-in, moisture resistant ON/OFF power switch, remote mount air filter assembly, heavy-duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose, and insulated wiring for simple installation.

• Revolutionary Heat Dissipation Head Design
• Industrial Grade & CE Spec.
• Permanent Magnetic Motor
• Oil-less Design
• High-Performance PTFE Piston Ring
• Stainless Steel Valves
• Moisture & Dirt Resistant
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates with Vibration Isolators
• Stainless Steel 1/4″ Braided Leader Hose
• Remote Mountable Intake Filter Assembly
• Insulated Wiring with Connectors

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

* Supply Voltage: 13.8 Volts

 * Supply Voltage: 13.8 Volts

• Viair 400H Hardmount Air Compressor Manual
• Viair 400H Hardmount Air Compressor Wiring Diagram
• Viair 400H Hardmount Air Compressor Dimensional Drawing

• Viair 400H Air Compressor
• 1/4″ NPT Braided Leader Hose & Check Valve
• Two-Stage Air Filter
• Replacement Filter Elements
• 1-Year Manufacturer’s Defect Warranty
• Mounting Hardware

• Part Number: AC-400H
• Manufacturers Part Number: 40042
• Voltage: 12 Volts DC
• Max Amperage: 30 Amps
• Maximum Duty Cycle: 33% @ 100 PSI
• Maximum Pressure: 150 PSI
• Max Tank Size: 5 Gallons
• CFM @ 0 PSI: 2.3 CFM
• Length: 10.08″ (217 mm)
• Width: 3.94″ (100 mm)
• Height: 6.75″ (171.5 mm)
• Weight: 6.95 lb (3.15 Kg)
