Viair 400C Air Compressor

Original price was: $262.46.Current price is: $99.99.

Free Shipping over $25
Fast & reliable delivery options
Enjoy top quality items for less
Multiple safe payment methods

Description

FASTER THAN A LOOTER WITH A TV

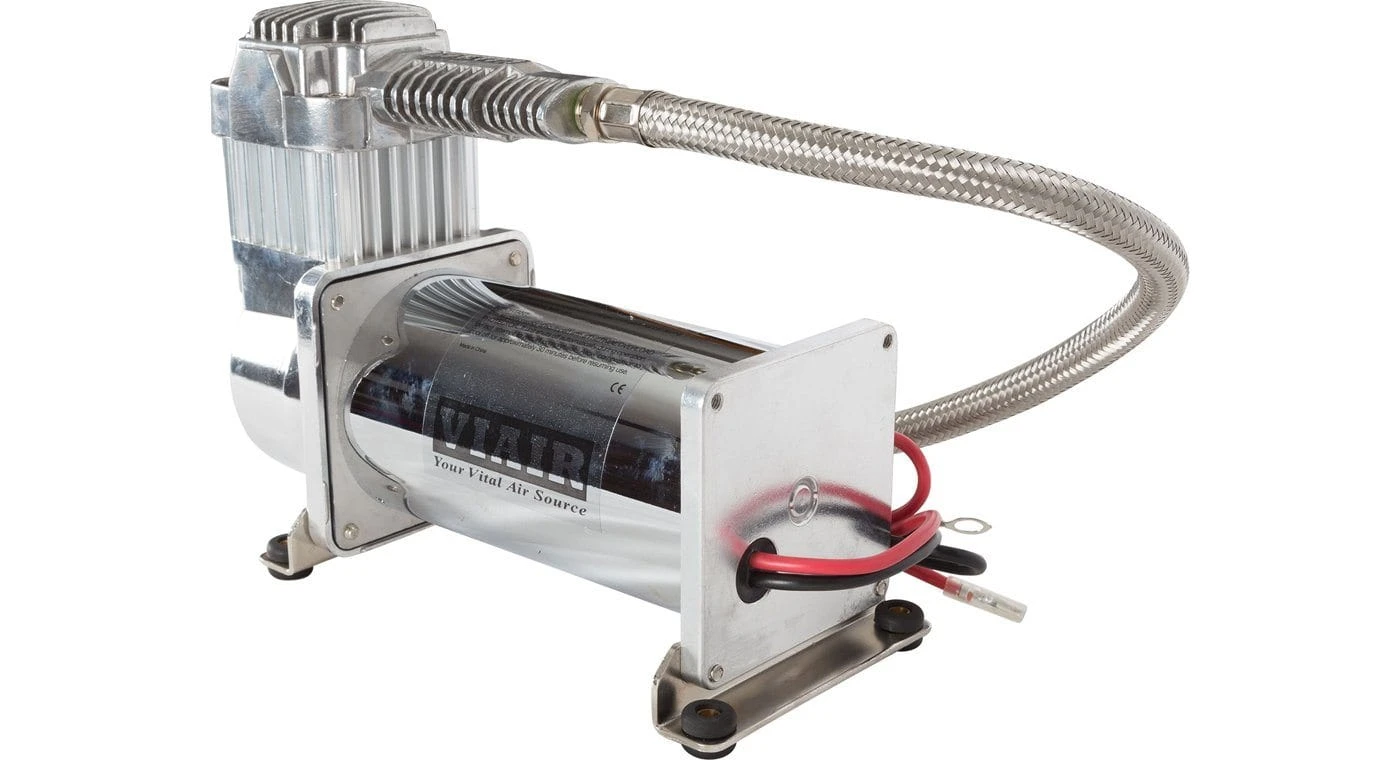

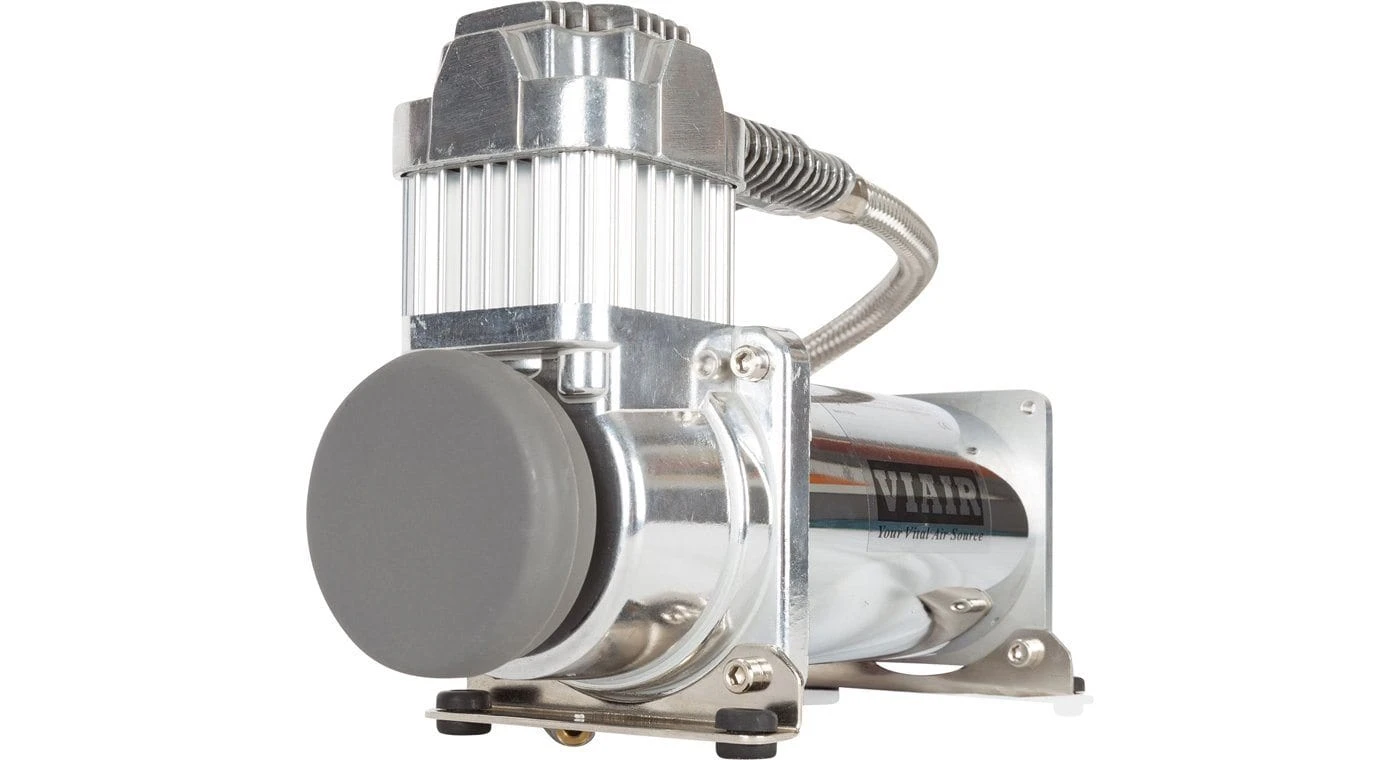

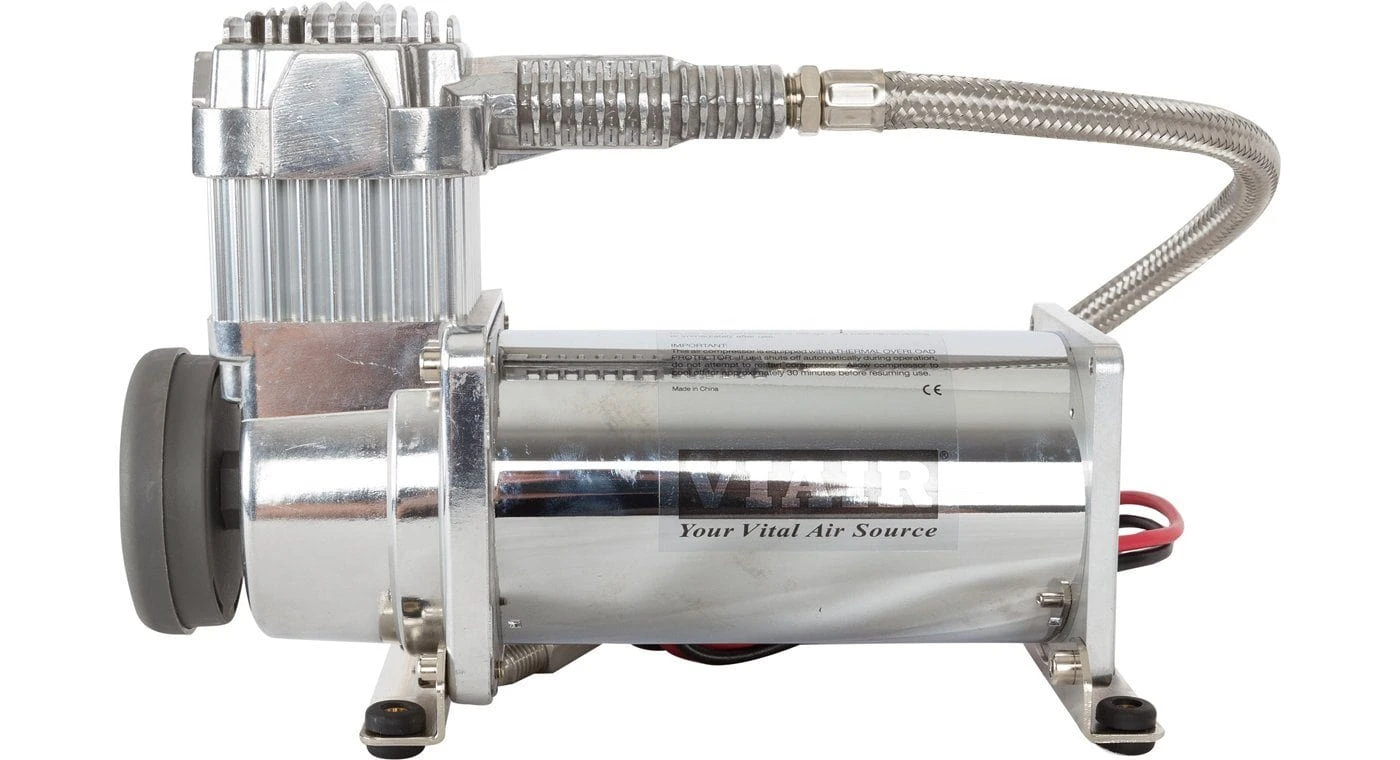

Speed meets efficiency with the Viair 400C Air Compressor. Ideal for powering train horns, air horns, and even light tire inflation, this compressor packs a punch with a fast 2.62 CFM and only 28 amps of power draw. Recharge your 2.5-gallon tank from 110-150 PSI in just 48 seconds or your 5-gallon tank in 1 minute and 40 seconds.

Permanent Magnetic Motor
Oil-less Design
High-Performance PTFE Piston Ring
Stainless Steel Valves
Moisture & Dirt Resistant
Gearless Direct Drive Motor
Anodized Aluminum Alloy Cylinder
Automatic Reset Thermal Overload Protector
Mounting Plates with Vibration Isolators
Stainless Steel 1/4″ Braided Leader Hose
Remote Mountable Intake Filter Assembly
Insulated Wiring with Connectors

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

Performance Data & Fill Rates

PSI	CFM	A	BAR	LPM	A
0	2.62	16	0	74.0	16
10	2.39	18	1.0	65.0	20
20	2.21	20	2.0	60.0	23
30	2.11	22	3.0	56.0	25
40	2.01	24	4.0	53.0	27
50	1.93	25	5.0	49.0	28
60	1.84	26	6.0	46.0	28
70	1.73	27	7.0	42.0	28
80	1.65	27	8.0	38.0	28
90	1.52	27	9.0	35.0	27
100	1.45	27	10.0	31.0	27
110	1.35	27
120	1.26	27
130	1.19	27
140	1.08	27
150	1.01	26

* Supply Voltage: 13.8 Volts

2.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 27 sec. (± 05 sec.)
85 to 105 PSI	21 sec. (± 03 sec.)
0 to 145 PSI	2 min. 20 sec. (± 05 sec.)
110 to 145 PSI	48 sec. (± 03 sec.)
5.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 55 sec. (± 10 sec.)
85 to 105 PSI	45 sec. (± 05 sec.)
0 to 145 PSI	4 min. 50 sec. (± 10 sec.)
110 to 145 PSI	1 min. 40 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

Diagrams & Manuals

Viair 400C Air Compressor Manual
Viair 400C Air Compressor Wiring Diagram
Viair 400C Air Compressor Dimensional Drawing

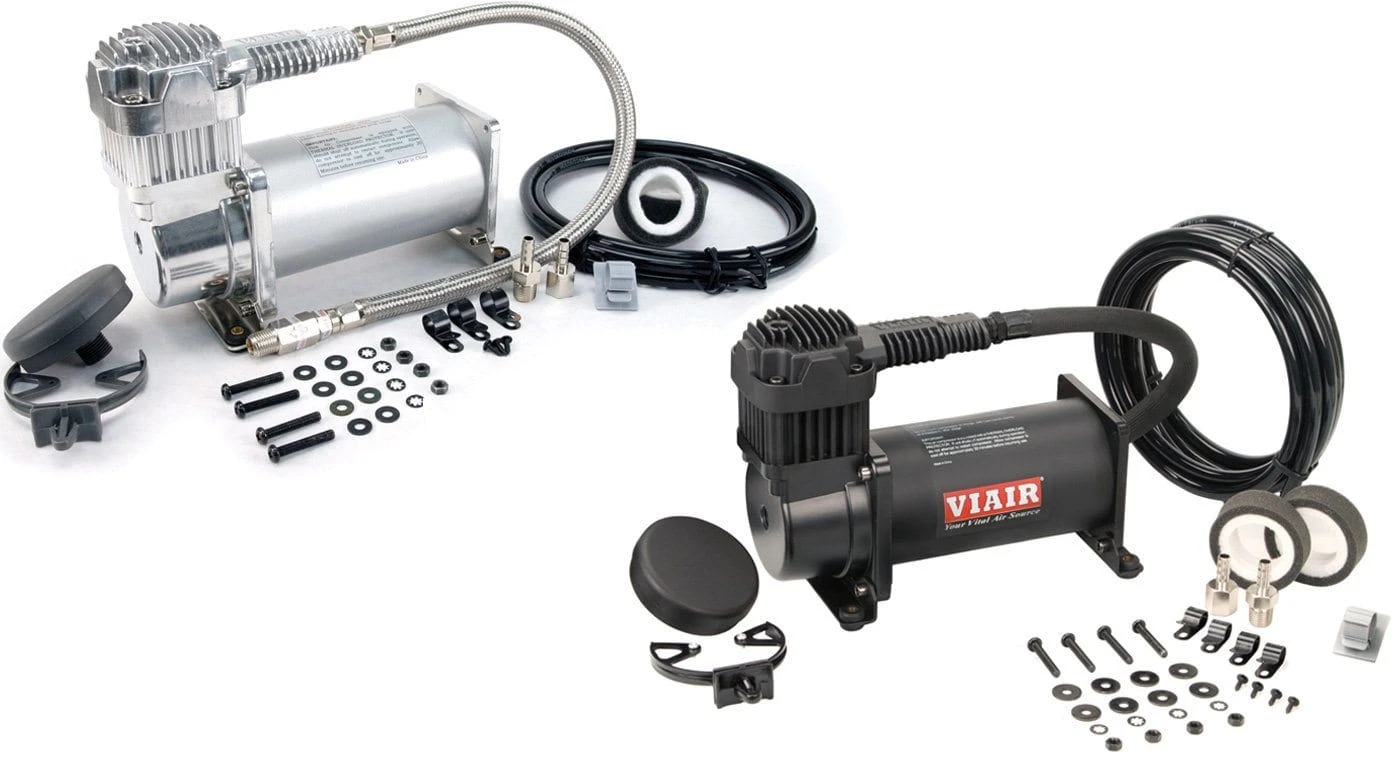

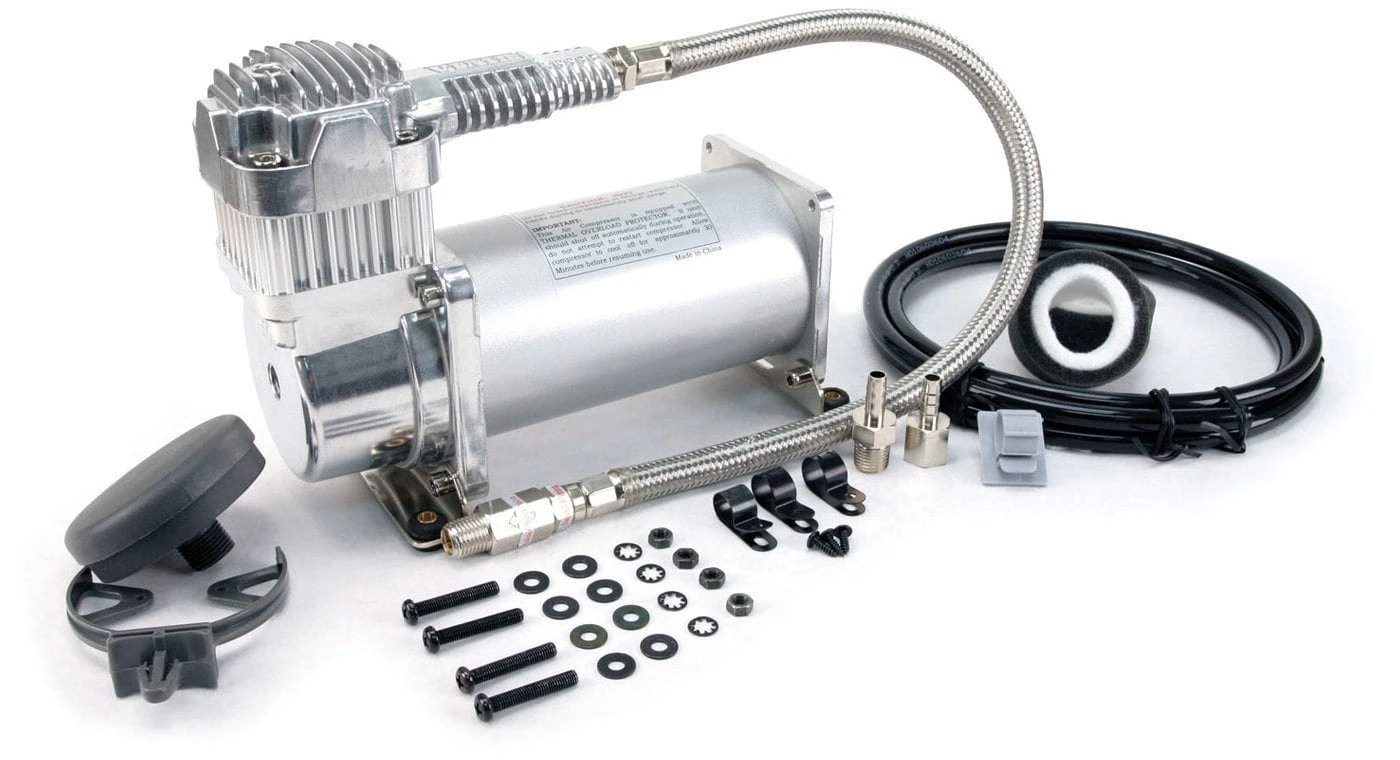

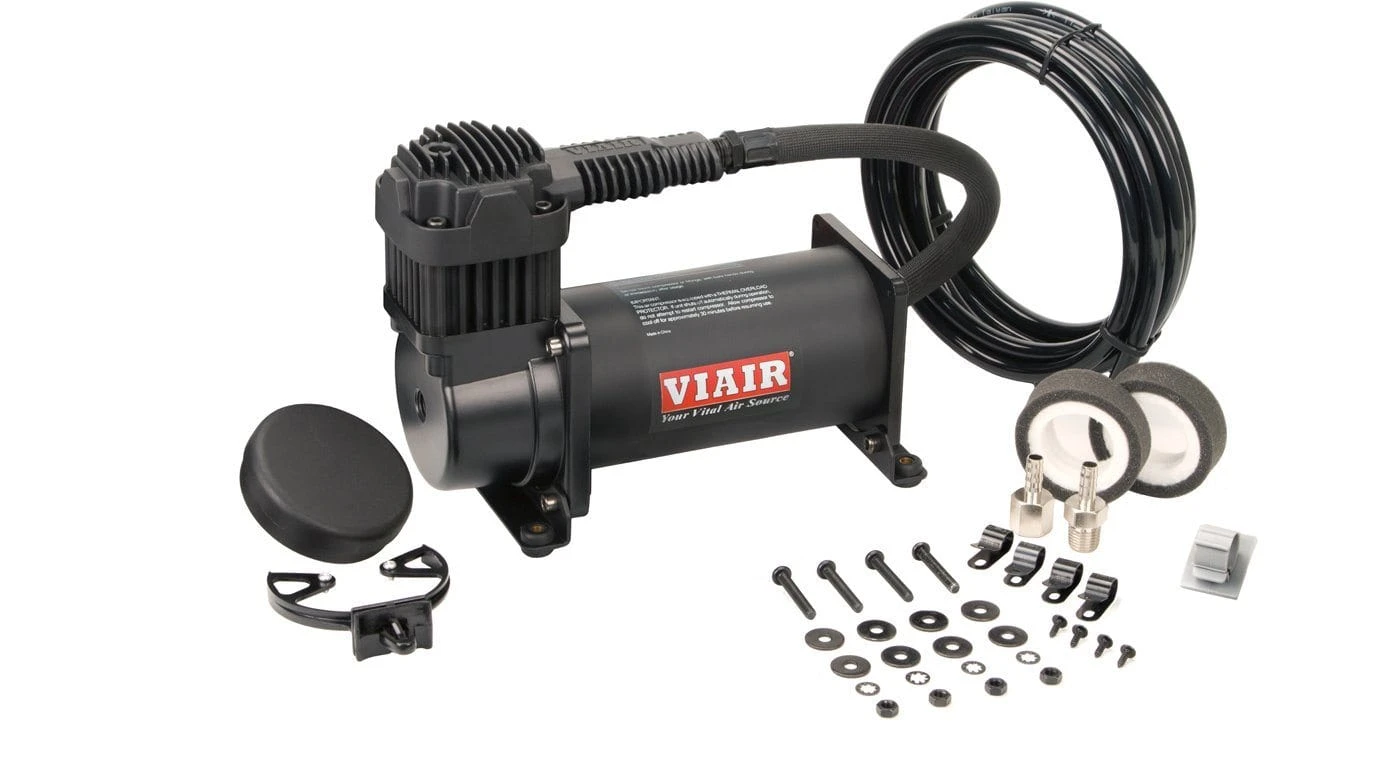

Includes

Viair 400c Air Compressor
1/4″ NPT Braided Leader Hose & Check Valve
Remote Mountable Two-Stage Air Filter
Replacement Filter Elements
1 Year ManufactureR’s Defect Warranty
Mounting Hardware

Specifications

Part Number: AC-400C, AC-400K
Manufacturers Part Number: 40040, 40048
Voltage: 12 Volts DC
Max Amperage: 28 Amps
Maximum Duty Cycle: 33% @ 100 PSI
Maximum Pressure: 150 PSI
Max Tank Size: 5 Gallons
CFM @ 0 PSI: 2.62 CFM
Length: 9″ (228.6 mm)
Width: 4″ (101.6 mm)
Height: 6.75″ (171.5 mm)
Weight: 6.95 lb (3.15 Kg)
