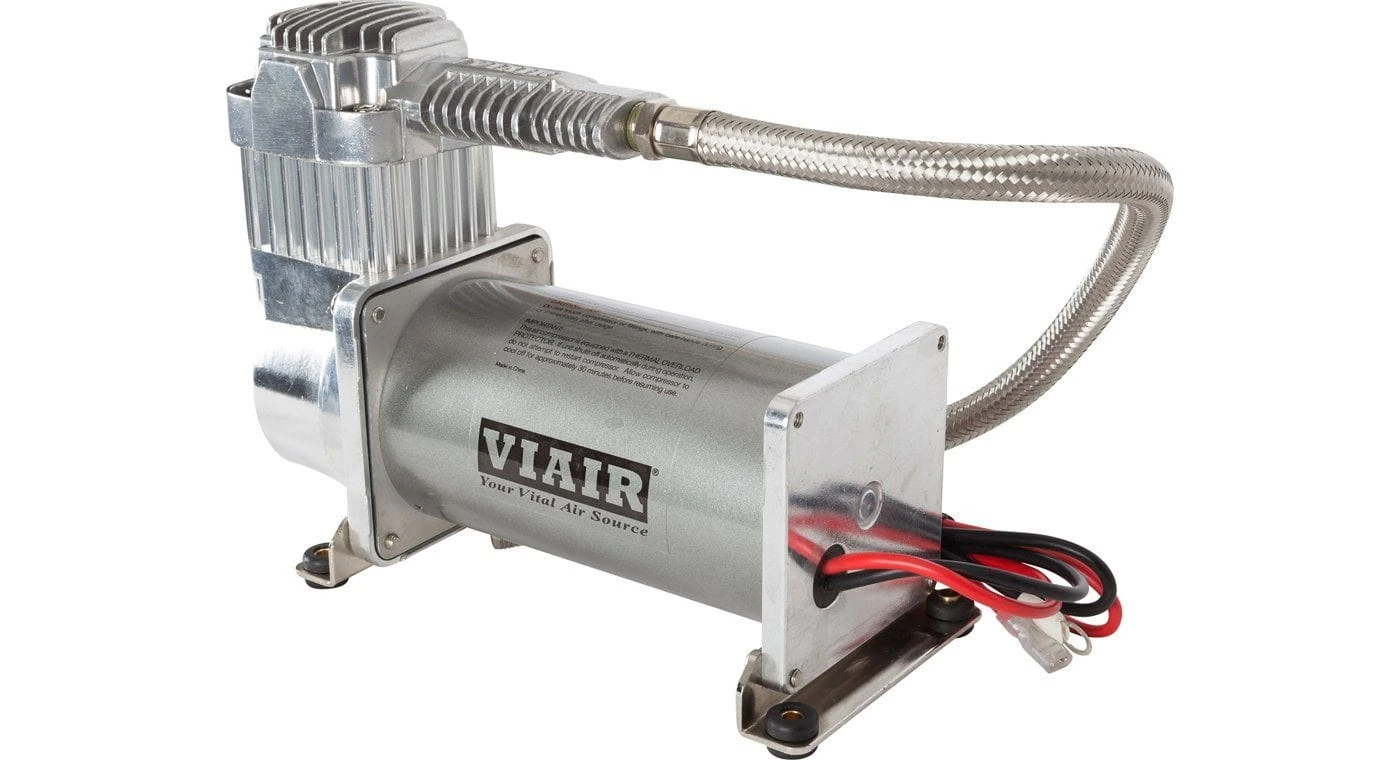

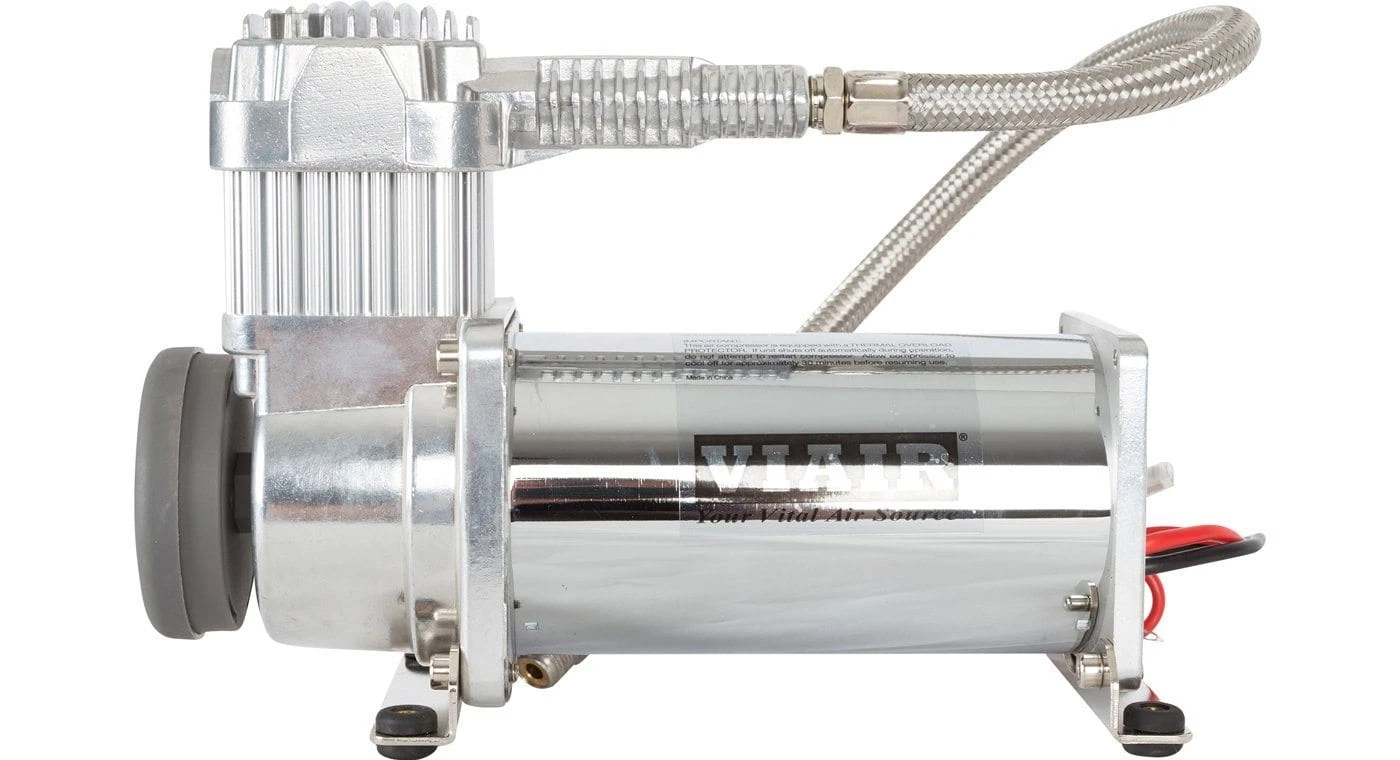

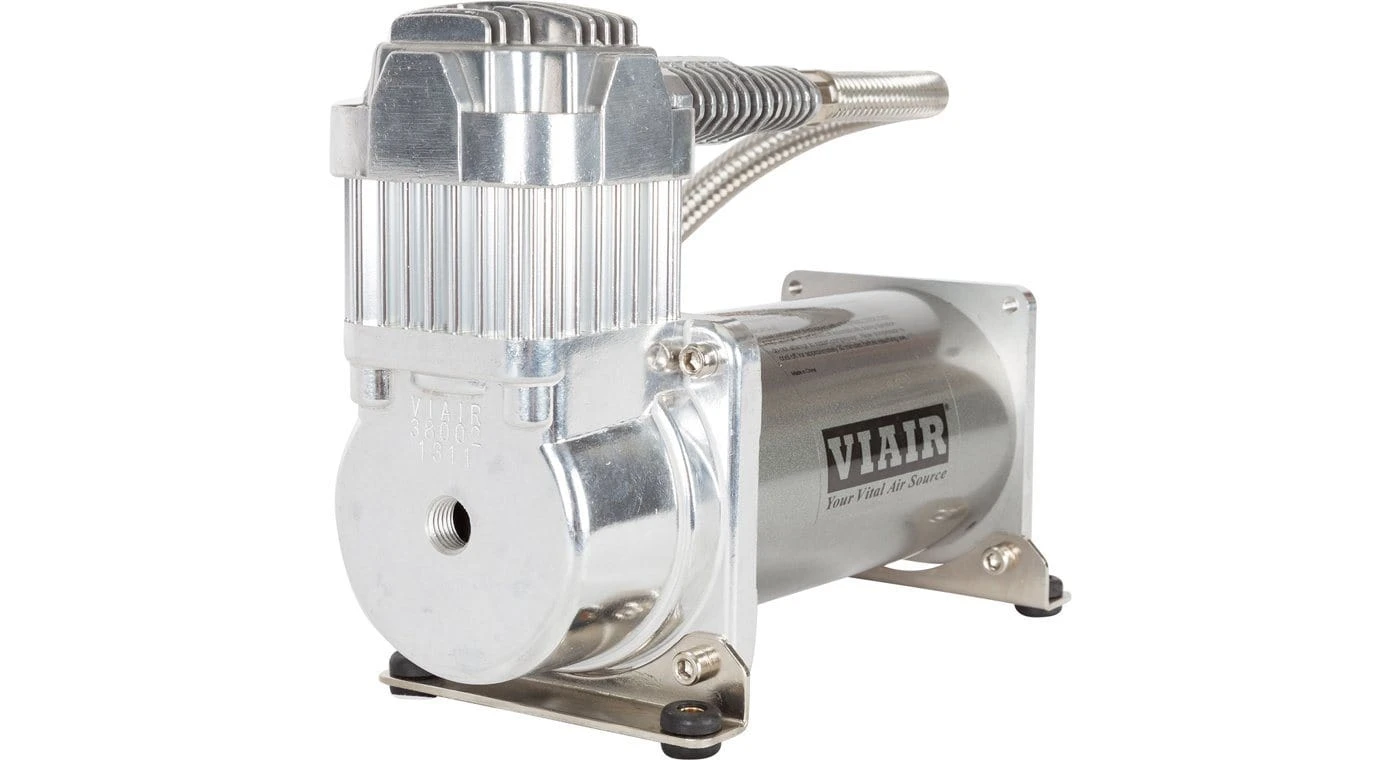

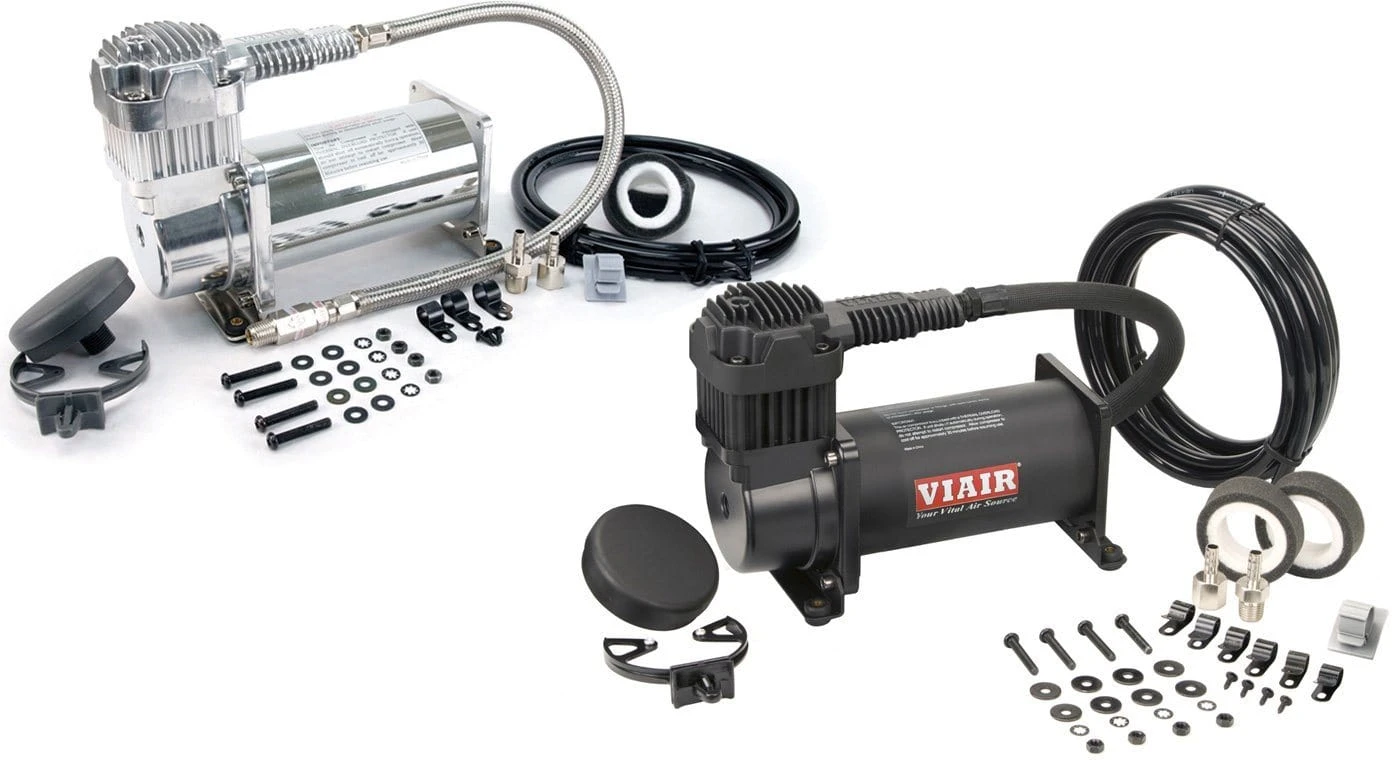

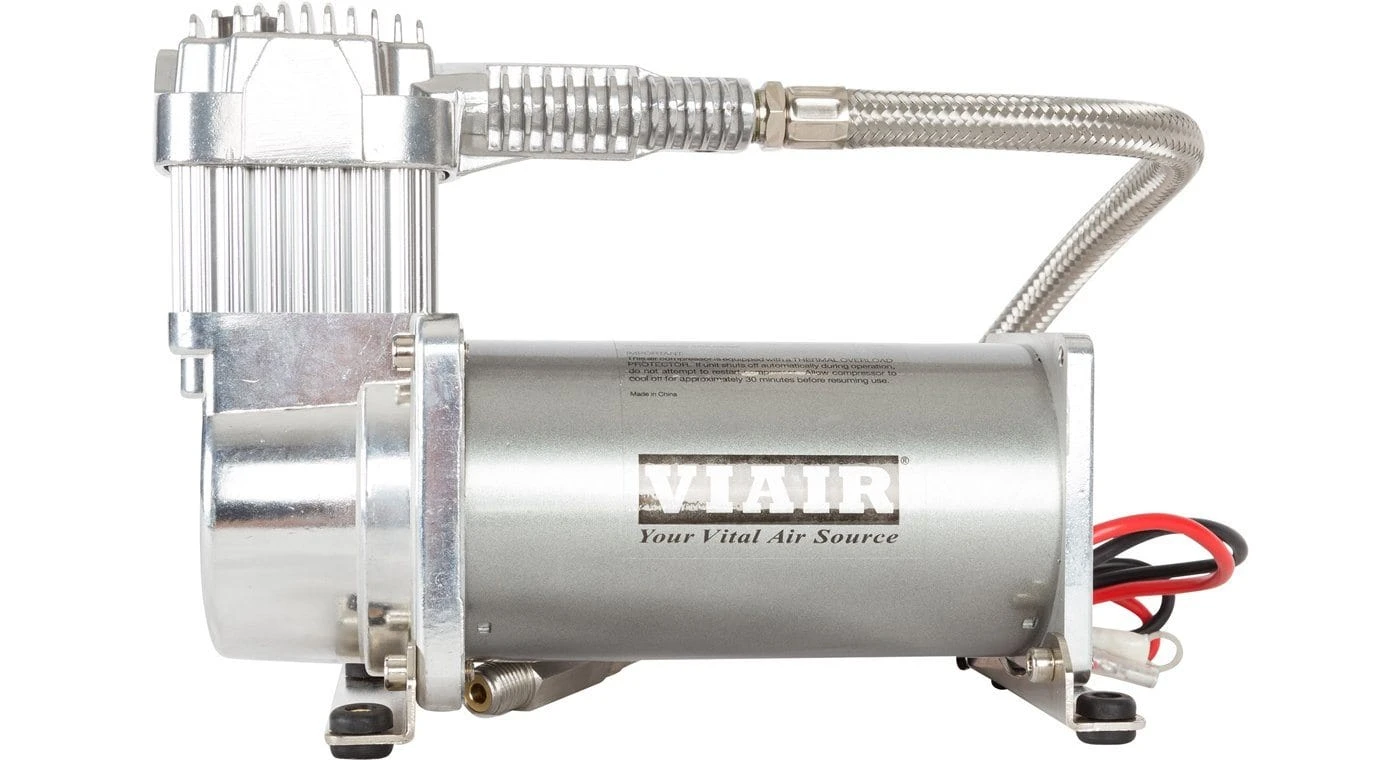

Viair 380C Air Compressor

Original price was: $246.71.Current price is: $97.99.

Free Shipping over $25
Fast & reliable delivery options
Enjoy top quality items for less
Multiple safe payment methods

Description

THE LITTLE COMPRESSOR THAT COULD

Get the best of both value and performance with the Viair 380C air compressor. This budget-friendly compressor can fill a 5-gallon tank to 200 PSI with ease, thanks to its constant duty cycle of 100% at 100 PSI. Ideal for pneumatic applications such as tire inflation, powering an air locker, and air suspension, the Viair 380C is both durable and fast. It can recharge a 2.5-gallon tank from 110-150 PSI in just 1 minute and 10 seconds, and refill a 5-gallon tank from 110-150 PSI in under 2 minutes and 25 seconds.

This compressor does come with the option to add our 40 Amp Air Compressor Wiring Kit to it as well!

Permanent Magnetic Motor
Oil-less Design
High-Performance PTFE Piston Ring
Stainless Steel Valves
Moisture & Dirt Resistant
Gearless Direct Drive Motor
Anodized Aluminum Alloy Cylinder
Automatic Reset Thermal Overload Protector
Mounting Plates with Vibration Isolators
Stainless Steel 1/4″ Braided Leader Hose
Remote Mountable Intake Filter Assembly
Insulated Wiring with Connectors

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

Performance Data & Fill Rates

PSI	CFM	A	BAR	LPM	A
0	1.58	12	0	44.7	12
10	1.45	13	1.0	38.1	13
20	1.22	14	2.0	33.3	15
30	1.17	15	3.0	30.6	16
40	1.09	16	4.0	29.1	17
50	1.06	17	5.0	27.1	18
60	1.02	17	6.0	25.3	19
70	0.97	18	7.0	24.0	20
80	0.92	18	8.0	22.4	21
90	0.88	19	9.0	21.0	23
100	0.85	20	10.0	19.5	21
110	0.81	21	11.0	18.2	20
120	0.78	22	12.0	16.7	19
130	0.74	23	13.0	15.2	19
140	0.71	21	14.0	13.5	18
150	0.67	20
160	0.64	20
170	0.60	19
180	0.57	19
190	0.53	19
200	0.49	18

* Supply Voltage: 13.8 Volts

2.5 GALLON TANK	FILL RATE
0 to 145 PSI	3 min. 30 sec. (± 10 sec.)
110 to 145 PSI	1 min. 10 sec. (± 05 sec.)
0 to 200 PSI	6 min. 05 sec. (± 10 sec.)
165 to 200 PSI	1 min. 40 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 145 PSI	7 min. 20 sec. (± 10 sec.)
110 to 145 PSI	2 min. 25 sec. (± 05 sec.)
0 to 200 PSI	13 min. 25 sec. (± 15 sec.)
165 to 200 PSI	3 min. 39 sec. (± 10 sec.)

* Supply Voltage: 13.8 Volts

Diagrams & Manuals

Viair 380C Air Compressor Manual
Viair 380C Air Compressor Wiring Diagram
Viair 380C Air Compressor Dimensional Drawing

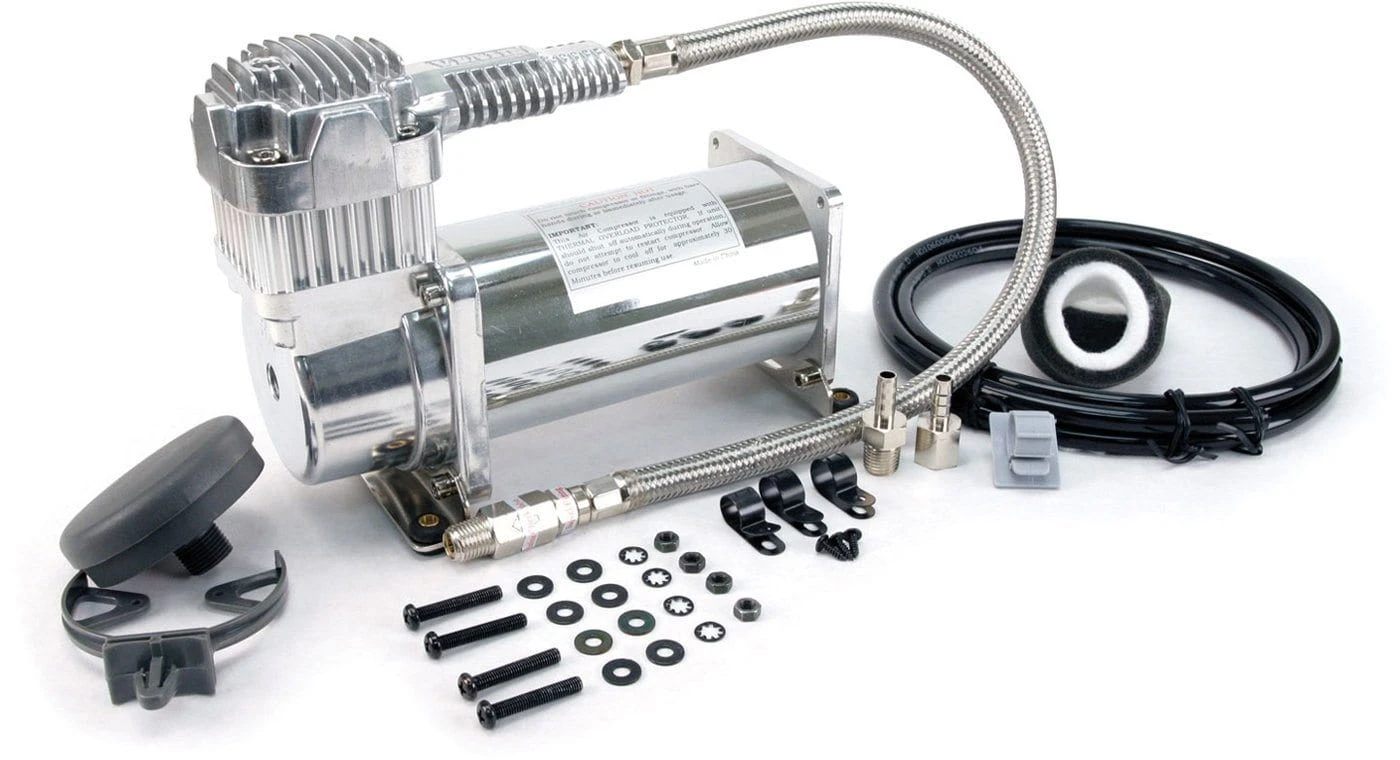

Includes

Viair 380c Air Compressor
1/4″ NPT Braided Leader Hose & Check Valve
Remote Mountable Two-Stage Air Filter
Replacement Filter Elements
1 Year ManufactureR’s Defect Warranty
Mounting Hardware

Specifications

Part Number: AC-380, AC-380C, AC-380B
Manufacturers Part Number: 38002 / 38003 / 38036
Voltage: 12 Volts DC
Max Amperage: 23 Amps
Maximum Duty Cycle: 100% @ 100 PSI
Maximum Pressure: 200 PSI
CFM @ 0 PSI: 1.58 CFM
Length: 9″ (228.6 mm)
Width: 4″ (101.6 mm)
Height: 6.75″ (171.5 mm)
Weight: 6.95 lb (3.15 Kg)
