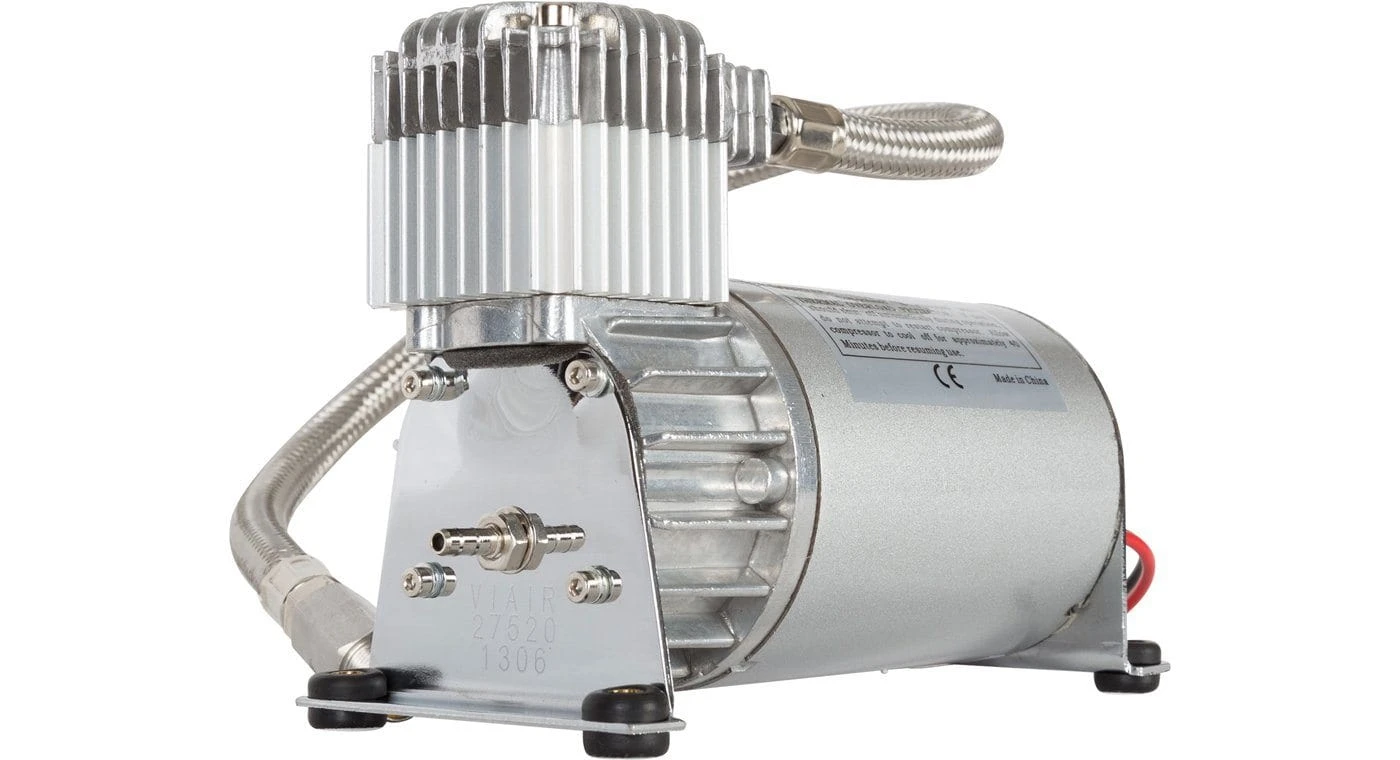

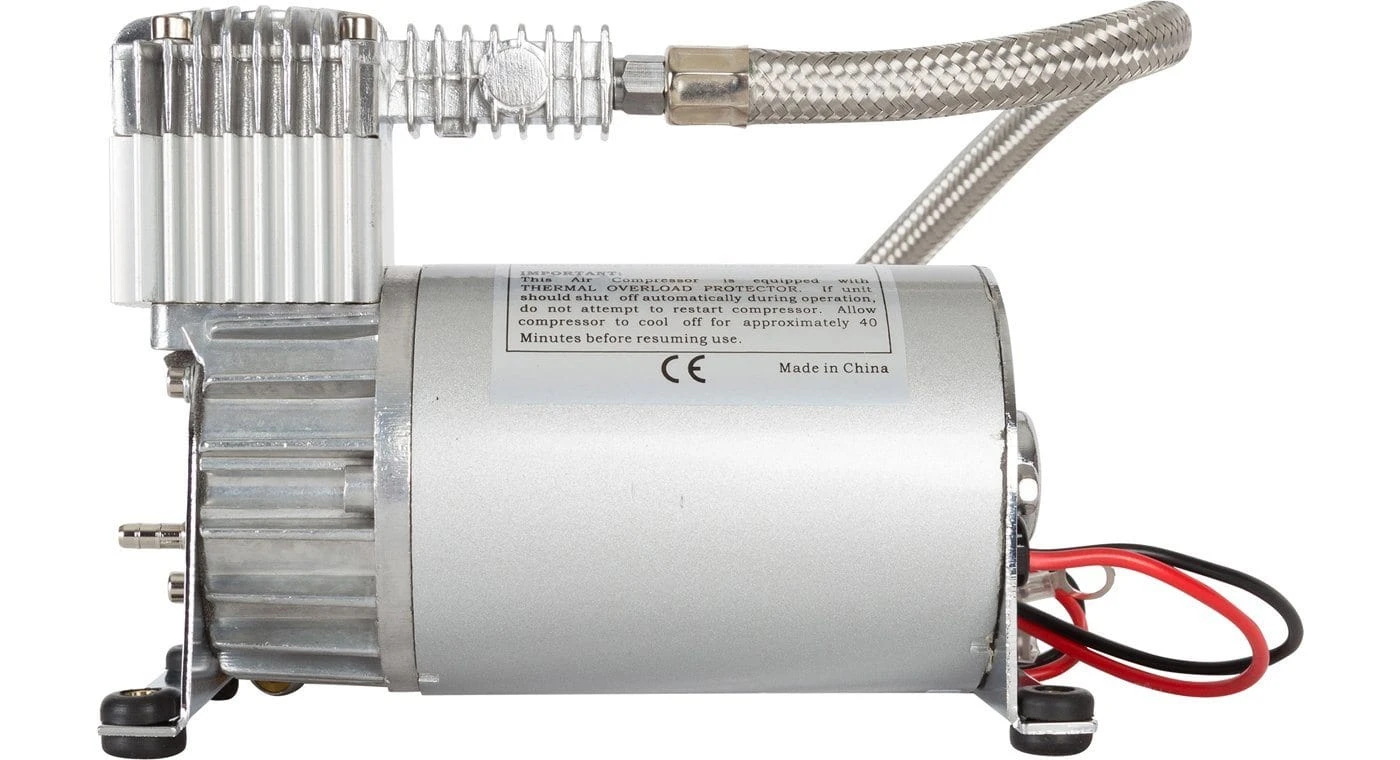

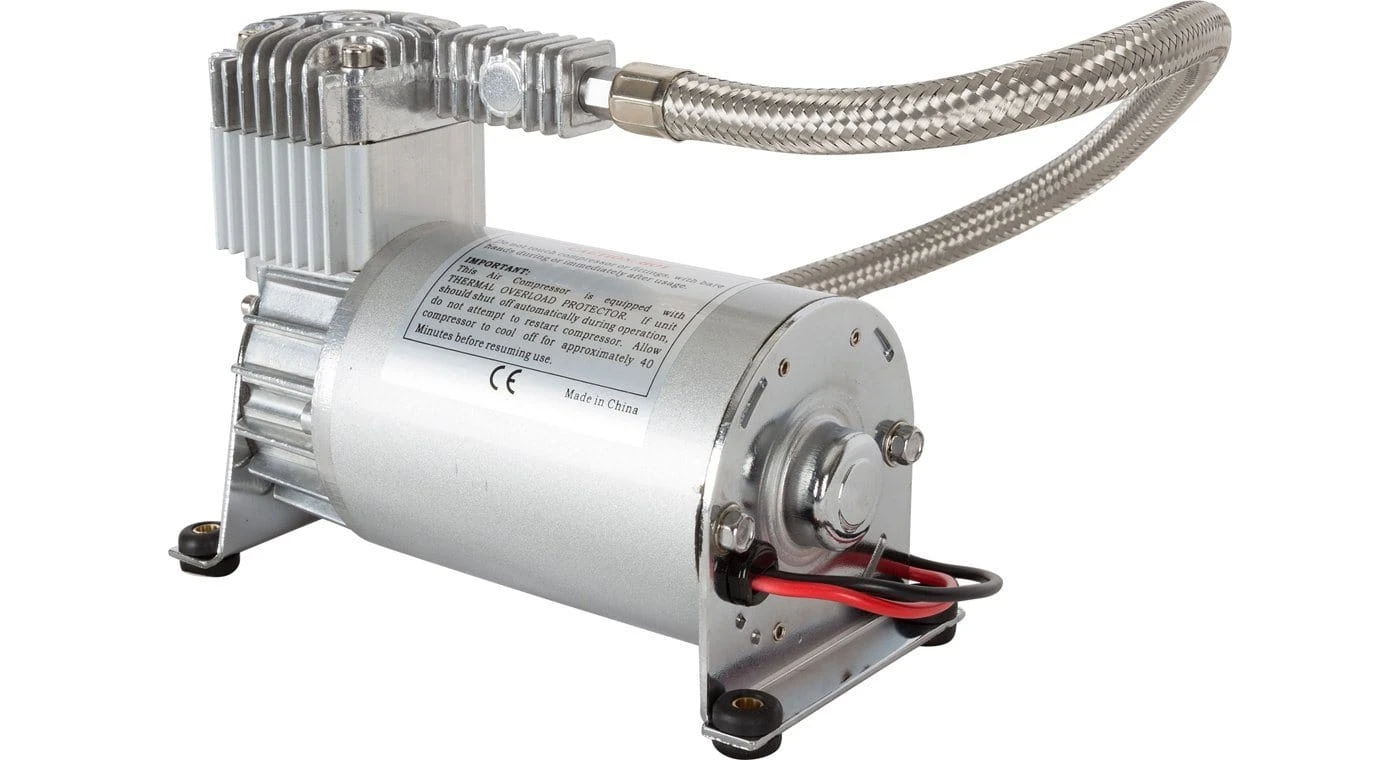

Viair 275C Silver Air Compressor

LITTLE. SHINY. EFFECTIVE.

Turn up the volume on your ride with the Viair 275C Silver Air Compressor! This pocket-sized powerhouse packs a punch, delivering 2.03 CFM of fast-fill power in a compact design. Perfect for light pneumatic use, like powering air lockers, motorcycle suspension, and even air horns, this quarter-duty compressor recharges a 2.5-gallon tank from 110-150 PSI in just 90 seconds while only sipping 18 amps. Upgrade your onboard air system without breaking the bank.

• Permanent Magnetic Motor
• Oil-Less Design
• High-Performance PTFE Piston Ring
• Stainless Steel Valves
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Mounting Plates with Vibration Isolators
• Stainless Steel 1/4″ Braided Leader Hose
• Remote Mountable Intake Filter Assembly
• Insulated Wiring with Connectors

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

 * Supply Voltage: 13.8 Volts

* Supply Voltage: 13.8 Volts

• Viair 275C Air Compressor Manual
• Viair 275C Air Compressor Wiring Diagram
• Viair 275C Air Compressor Dimensional Drawing

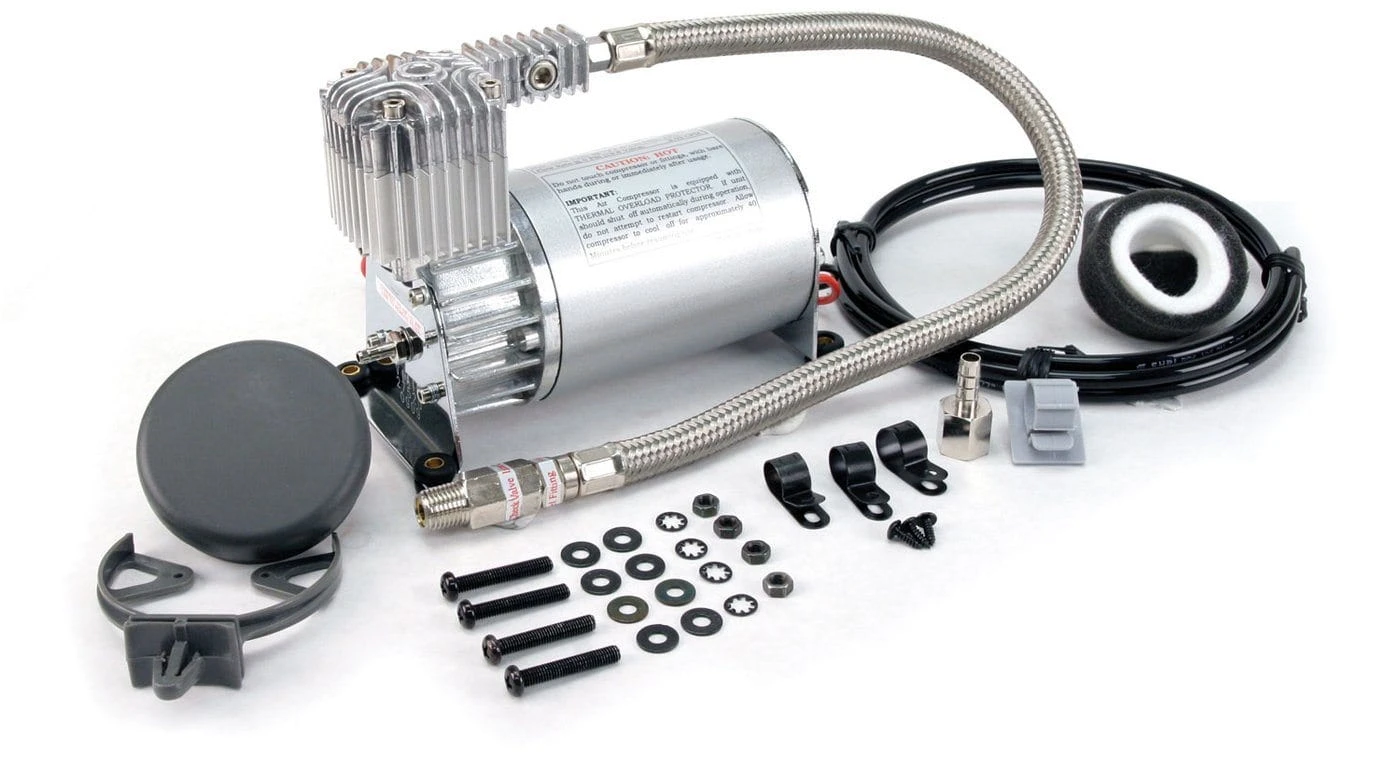

• Viair 275c 12 Volt Air Compressor
• 1/4″ NPT Braided Leader Hose & Check Valve
• Two-Stage Air Filter
• Replacement Filter Elements
• 1 Year ManufactureR’s Defect Warranty
• Mounting Hardware

• Part Number: AC-275
• Manufacturers Part Number: 27520
• Voltage: 12 Volts DC
• Max Amperage: 18 Amps
• Maximum Duty Cycle: 25% @ 100 PSI
• Maximum Pressure: 150 PSI
• Max Tank Size: 2.5 Gallons
• CFM @ 0 PSI: 2.03 CFM
• Length: 6.5″ (165.1 mm)
• Width: 3.5″ (88.9 mm)
• Height: 4.5″ (114.3 mm)
• Weight: 5.1 lb (2.31 Kg)
