Viair 200 PSI High-Pressure Bolt-On Platform With Jeep Bracket – 30005

Original price was: $381.00.Current price is: $97.99.

SKU: AG9YB 93567742737884 Categories: COMPONENTS, COMPRESSORS & AIR SOURCE UNITS Tags: 30005, Air Source Unit, Air Source Units, Cn:prop65-lead, Constant Duty, Leasable, Mounted Air Compressors, Spo-default, Spo-disabled

Free Shipping over $25
Fast & reliable delivery options
Enjoy top quality items for less
Multiple safe payment methods

Description
Reviews (0)

Overview

JUST EXPECT EXCELLENT PERFORMANCE

Upgrade your Jeep with the Viair 200 PSI High Flow Bolt-On Platform featuring a Jeep Bracket. Equipped with dual Viair 380C Air Compressors for rapid recharge times, this compact system caters to all your mobile air requirements. Experience effortless installation and enjoy the included extras, making your Jeep a powerful air machine that’ll leave dirt and debris in the dust!

This kit also includes a cross member mounting bracket for 2007-2011 Jeep Wranglers (JK). If you don’t need this bracket, the universal bolt-on platform can be found here.

Automatic Compressor Cycling
0-200 PSI Pressure Regulator
BSP Adapters for Air Lockers

Performance Data & Fill Rates

PSI	CFM	A	BAR	LPM	A
0	2.54	28	0	72.0	28
10	2.42	29	1.0	67.0	30
20	2.30	31	2.0	61.7	33
30	2.17	33	3.0	57.5	34
40	2.07	34	4.0	53.5	36
50	1.95	35	5.0	49.8	37
60	1.87	36	6.0	46.4	39
70	1.78	37	7.0	43.3	41
80	1.70	38	8.0	40.3	43
90	1.61	39	9.0	37.2	44
100	1.54	41	10.0	34.5	42
110	1.46	42	11.0	31.8	41
120	1.40	43	12.0	29.2	40
130	1.32	44	13.0	26.6	38
140	1.25	43	14.0	23.7	37
150	1.19	42
160	1.12	41
170	1.06	40
180	0.99	39
190	0.93	38
200	0.86	37

* Supply Voltage: 13.8 Volts

2.0 GALLON TANK	FILL RATE
0 to 200 PSI	2 min. 35 sec. (± 10 sec.)
165 to 200 PSI	40 sec. (± 05 sec.)
37″ X 12.5″	FILL RATE
0 to 30 PSI	5 min. 00 sec. (± 15 sec.)
15 to 30 PSI	2 min. 30 sec. (± 10 sec.)
40″ X 15.5″	FILL RATE
0 to 30 PSI	5 min. 25 sec. (± 15 sec.)
15 to 30 PSI	2 min. 40 sec. (± 10 sec.)

* Supply Voltage: 13.8 Volts

Diagrams / Manuals

Viair 200 PSI High-Pressure Bolt-On Platform With Jeep Bracket Manual
Viair 200 PSI High-Pressure Bolt-On Platform With Jeep Bracket Wiring Diagram
Viair 200 PSI High-Pressure Bolt-On Platform With Jeep Bracket Dimensional Drawing

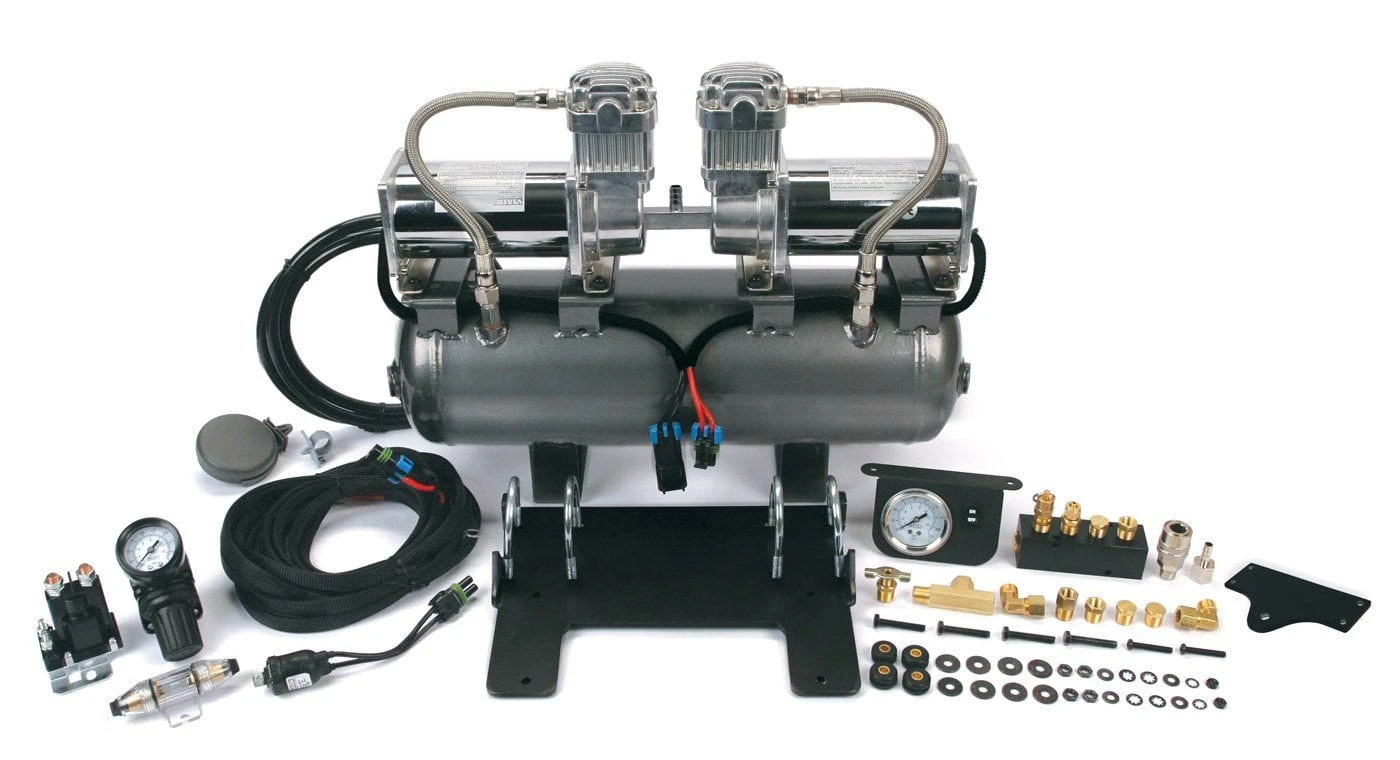

Includes

Dual Viair 380c Air Compressors
Viair 2 Gallon 150 PSI Rated Tank
Viair 165-200 PSI Pressure Switch
Viair 0-200 PSI Pressure Regulator
BSP Adapters for Air Lockers
80 Amp Heavy Duty Relay
Remote Air Source Relocation Kit
Installation Instructions

Specifications

Part Number: BO-238VJ
Manufacturer: Viair
Model: 30005
Air Source Kit
Operating Pressure: 200 PSI
Length: 18.5″ (469.9 mm)
Width: 5.9″ (149.86 mm)
Height: 13.5″ (342.9 mm)
Weight: 20.30 lb (9.21 Kg)
Volume:2.0 gal (7.5 L)
1/4″ NPT Ports: 4
1/8″ NPT Ports: 1
Air Source Compressors
Voltage: 12 Volts
Max Amperage: 44 Amps
Max Output: 2.98 CFM
Maximum Duty Cycle: 33% @ 100 PSI
Maximum Working Pressure: 200 PSI
