Viair 200 PSI High-Pressure Bolt On Platform

Original price was: $383.00.Current price is: $98.99.

SKU: AG9YB 935677420993229 Categories: COMPONENTS, COMPRESSORS & AIR SOURCE UNITS Tags: 30018, Air Source Unit, Air Source Units, Cn:prop65-lead, Constant Duty, Leasable, Mounted Air Compressors, Review, Spo-default, Spo-disabled, Viair 30018

Free Shipping over $25
Fast & reliable delivery options
Enjoy top quality items for less
Multiple safe payment methods

Description
Reviews (0)

Overview

A PRE-BUILT POWERHOUSE!

Need a powerful and dependable onboard air system? Look no further than the Viair 200 PSI High-Pressure Bolt-On Platform! Featuring dual constant duty compressors and a 2-gallon tank, it’s perfect for air horns, train horns, suspension systems, air locking differentials, air seats, and even inflating tires up to 40 inches.

With a 100% duty cycle at 100 PSI and a 50% duty cycle at 200 PSI, the Viair 30018 bolt-on platform delivers performance you can count on. Plus, installation is a breeze with pre-wired and pre-plumbed components, a wiring harness, relay, fuses, and more. Get yours today and take the guesswork out of onboard air systems!

Automatic Compressor Cycling
0-200 PSI Pressure Regulator

Performance Data & Fill Rates

PSI	CFM	A	BAR	LPM	A
0	2.54	28	0	72.0	28
10	2.42	29	1.0	67.0	30
20	2.30	31	2.0	61.7	33
30	2.17	33	3.0	57.5	34
40	2.07	34	4.0	53.5	36
50	1.95	35	5.0	49.8	37
60	1.87	36	6.0	46.4	39
70	1.78	37	7.0	43.3	41
80	1.70	38	8.0	40.3	43
90	1.61	39	9.0	37.2	44
100	1.54	41	10.0	34.5	42
110	1.46	42	11.0	31.8	41
120	1.40	43	12.0	29.2	40
130	1.32	44	13.0	26.6	38
140	1.25	43	14.0	23.7	37
150	1.19	42
160	1.12	41
170	1.06	40
180	0.99	39
190	0.93	38
200	0.86	37

* Supply Voltage: 13.8 Volts

2.0 GALLON TANK	FILL RATE
0 to 200 PSI	2 min. 35 sec. (± 10 sec.)
165 to 200 PSI	40 sec. (± 05 sec.)
37″ X 12.5″	FILL RATE
0 to 30 PSI	5 min. 00 sec. (± 15 sec.)
15 to 30 PSI	2 min. 30 sec. (± 10 sec.)
40″ X 15.5″	FILL RATE
0 to 30 PSI	5 min. 25 sec. (± 15 sec.)
15 to 30 PSI	2 min. 40 sec. (± 10 sec.)

* Supply Voltage: 13.8 Volts

Diagrams / Manuals

Viair 200 PSI High Pressure Bolt On Platform Manual
Viair 200 PSI High Pressure Bolt On Platform Wiring Diagram
Viair 200 PSI High Pressure Bolt On Platform Dimensional Drawing

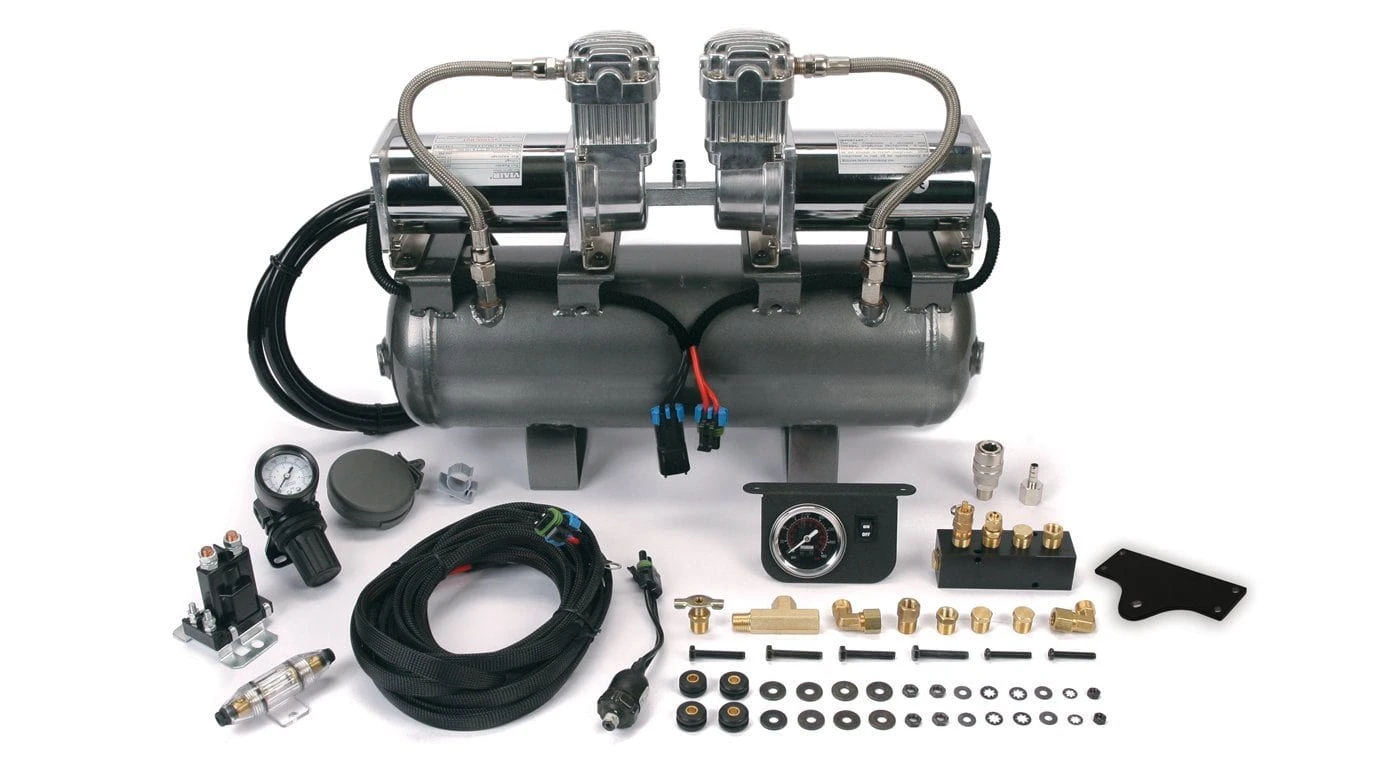

Includes

Dual Viair 380c Air Compressors
Viair 2 Gallon 150 PSI Rated Tank
Viair 165-200 PSI Pressure Switch
Viair 0-200 PSI Pressure Regulator
80 Amp Heavy Duty Relay
Remote Air Source Relocation Kit
Installation Instructions

Specifications

Part Number: BO-380
Manufacturers Part Number: 30018
Air Source Kit
Operating Pressure: 200 PSI
Air Source Length: 18.5″ (469.9 mm)
Air Source Width: 5.9″ (149.86 mm)
Air Source Height: 13.5″ (342.9 mm)
Weight: 20.30 lb (9.21 Kg)
Tank Volume: 2.0 gal (7.5 L)
1/4″ NPT Ports: 4
1/8″ NPT Ports: 1
Air Source Compressors
Voltage: 12 Volts
Max Amperage: 44 Amps
Max Output: 2.98 CFM
Maximum Duty Cycle: 33% @ 100 PSI
Maximum Working Pressure: 200 PSI
