Shocker S6 5485 Nightmare Edition Train Horn Kit

BIG, LOUD AND FULL OF HONK

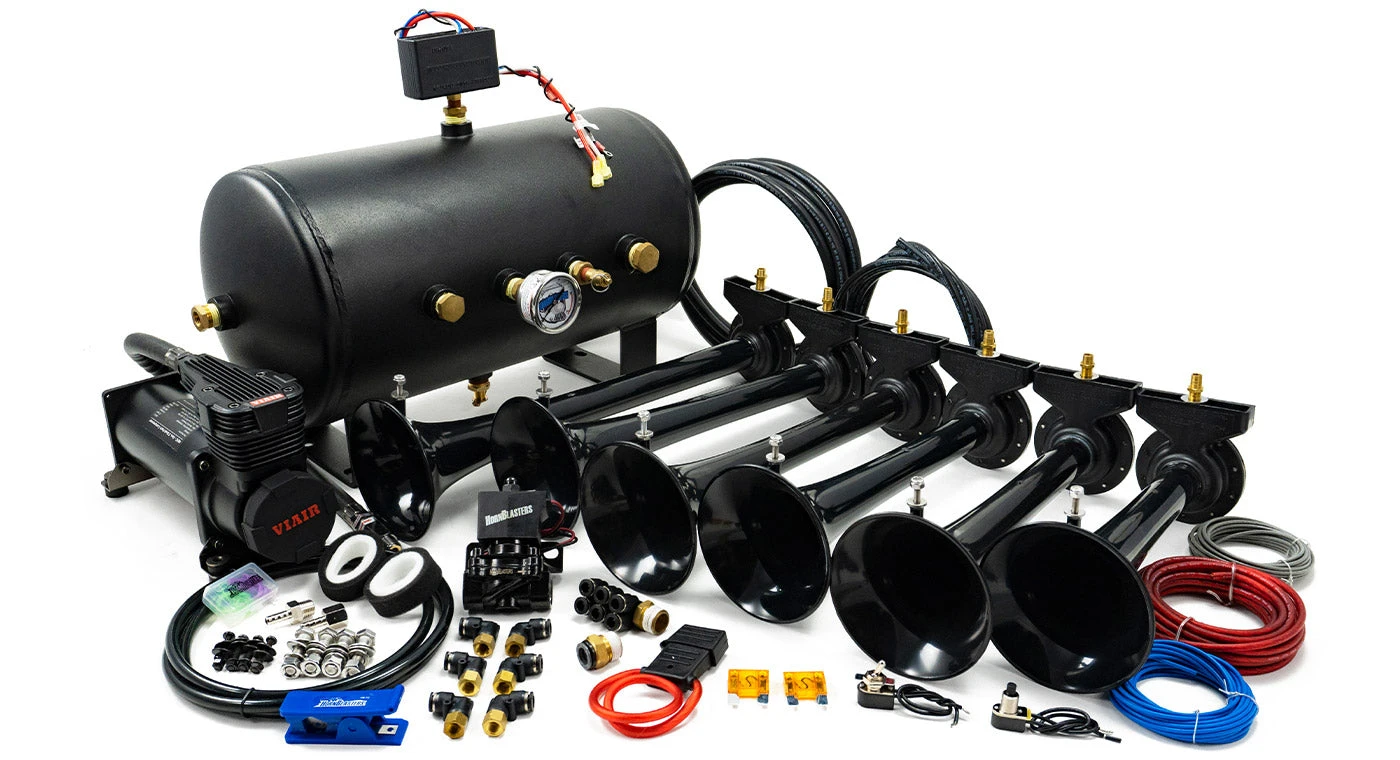

Get the ultimate train horn experience with the Shocker S6 5485K train horn kit. This complete kit features our loudest Shocker S6 train horns, paired with our powerful 5485K onboard air system. With the Shocker S6 horns, you’ll get four original Shocker XL train horns plus two additional bells for extra punch. These fiberglass-reinforced ABS bells are durable and easy to install, backed by our Limited Lifetime Warranty.

The kit includes the powerful Viair 485K air compressor, offering a constant duty cycle of 100% and a fast recharge time. With a 5-gallon 8-port air tank, you’ll have ample air for pneumatic tasks and plenty of honk time for your S6 Shocker horns.

• Unprecedented Volume: The Shocker S6 boasts four of the original Shocker XL horns plus an additional two, providing an unmatched, deafening train horn experience that can be heard from miles.
• Powerful Meets Performance: Equipped with a robust Viair 485K air compressor, enjoy a 100% duty cycle, and a swift recovery rate.
• Versatility on Demand: A 5-gallon 8-port air tank ensures 5-7 seconds of continuous honking, while also facilitating pneumatic tasks like tire inflation.
• Built to Last: Fiberglass-reinforced ABS bells ensure durability, backed by a Limited Lifetime Warranty, and paired with stainless steel internals.
• Turnkey Installation: An all-inclusive train horn solution with standard mounting hardware ensures you’re set to shock the neighborhood straight out of the box.

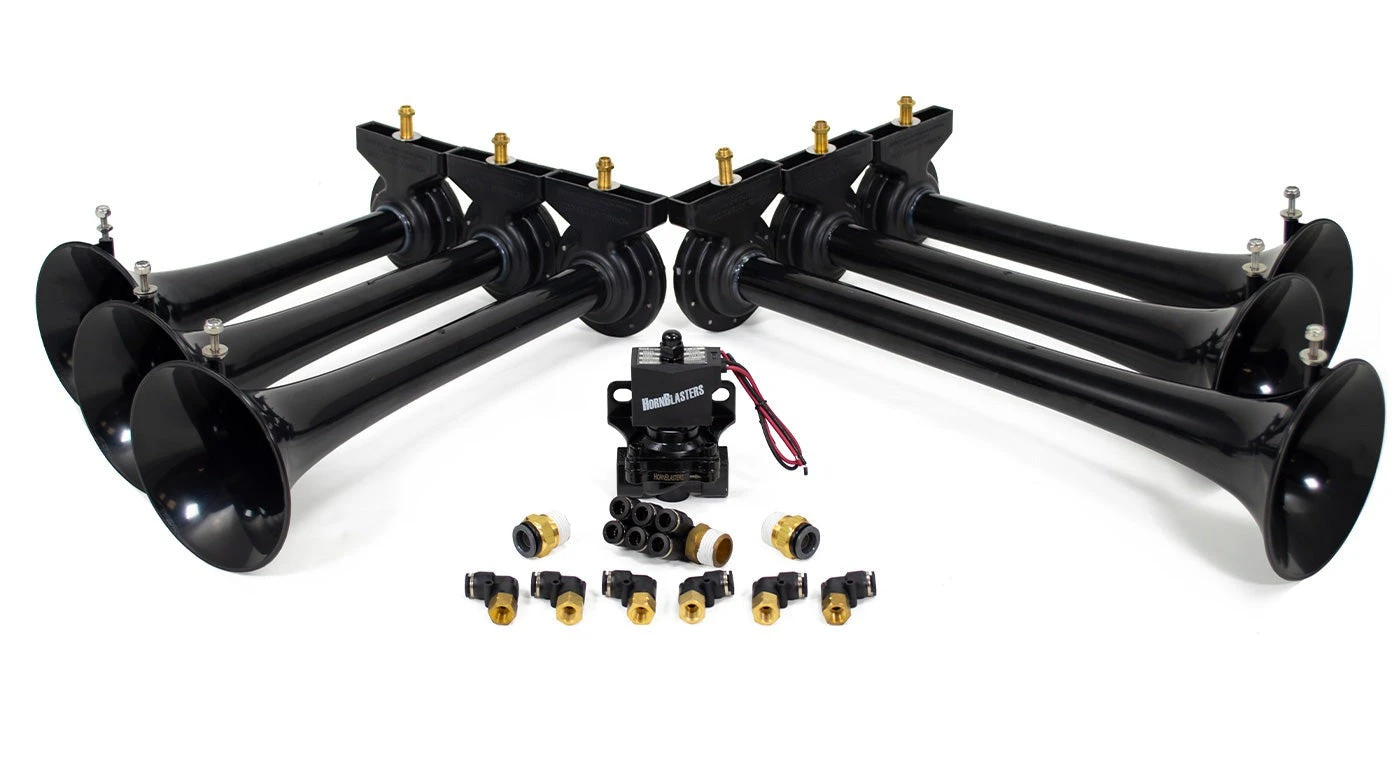

• Shocker S6 train horns
• Black Widow 1/2″ NPT stainless steel electric air balve
• 5-gallon 8 port air tank
• Viair 485C air compressor
• 110/150 PSI pressure switch w/ Built-in 40 amp relay
• HornBlasters 200 PSI stainless steel liquid-filled air gauge
• Remote mountable intake filter
• Spare air filter elements
• 10 ft of 5/16 in D.O.T. approved air line
• 17 ft of 1/2 in D.O.T. Approved air line
• 6 ft of 3/8″ air line (for air compressors air intake)
• 22ft of 10-gauge red wire
• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire

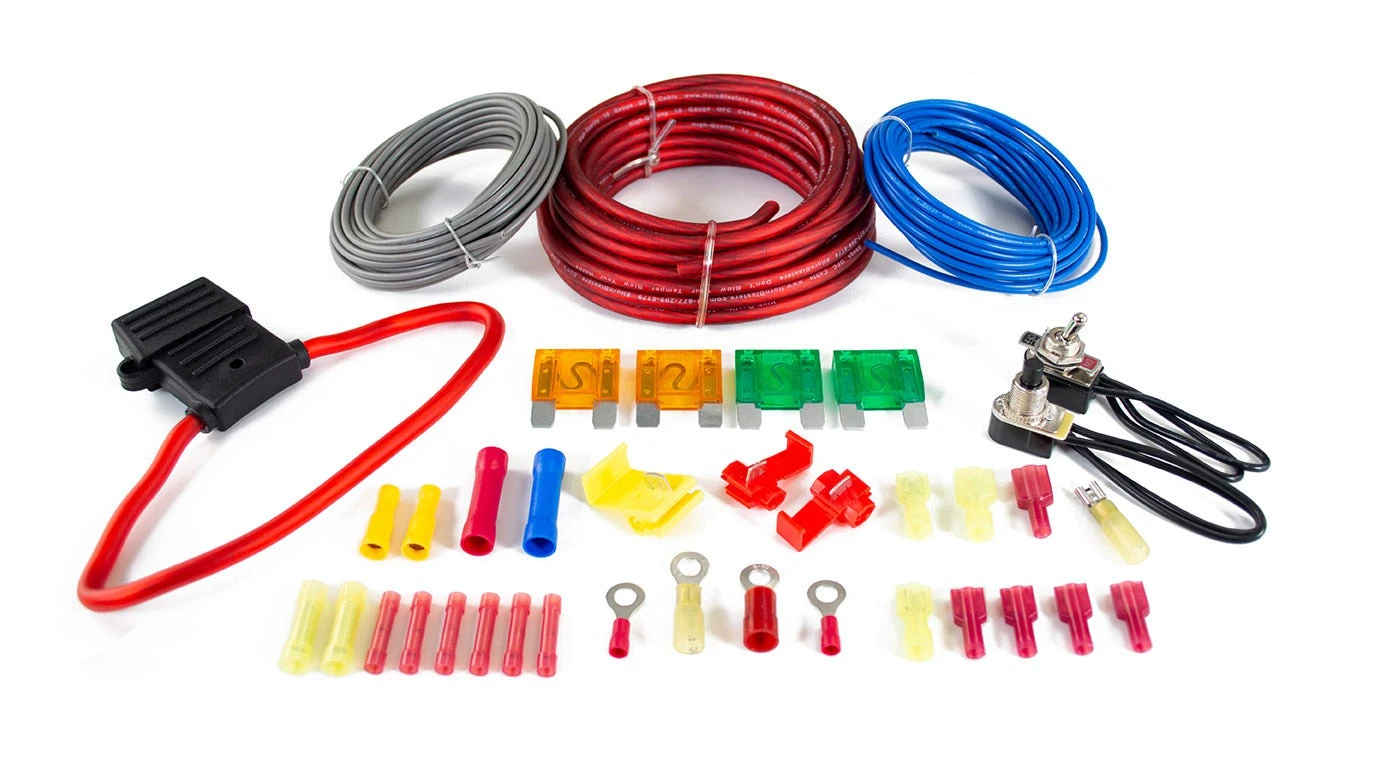

• Complete wiring kit with fuse holder & fuses
• Brass NPT fittings kit including a safety blowoff
• Mounting hardware
• Air line cutter
• Detailed instructions
• Earplugs

• Part Number: HK-S6-5485K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: Shocker S6 train horn
• Horn Material: High-impact fiberglass reinforced ABS
• Horn Measurements

• № 1 19.50″ (495.30 mm)	№ 2 16.25″ (412.75 mm)
  № 3 16.25″ (412.75 mm)	№ 4 14.75″ (374.65 mm)
  № 5 14.75″ (374.65 mm)	№ 6 12.75″ (323.85 mm)

• Horn Flare: 5″ (127 mm)
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Air Compressor: Viair 485C air compressor
• Average Fill Time: 7 Min from zero PSI, 1 Min 15 Sec refill
• Air Flow: 2.24 CFM
• Max Amperage: 23 amps
• Duty Cycle: 100% @ 150 PSI
• Compressor Length: 11.5″ (292.1 mm)
• Compressor Width: 4.30″ (109.22 mm)
• Compressor Height: 6.5″ (165.4 mm)
• Compressor Weight: 11 lb (4.99 Kg)

* Supply Voltage: 13.8 Volts

5-Gallon Air Tank Dimensional Drawing

• HornBlasters Shocker S6 5485 instruction manual
• HornBlasters Shocker S6 5485 air compressor wiring diagram
