Nathan AirChime P5 544K Train Horn Kit

GO AHEAD, TOOT YOUR OWN HORN.

Get ready to blow minds and make ears perk up with our Nathan AirChime P5 544K train horn kit! This kit combines a classic and authentic train horn from the 50s with a powerful onboard air system. The result? A train horn system that will make even the most dedicated train horn enthusiasts green with envy.

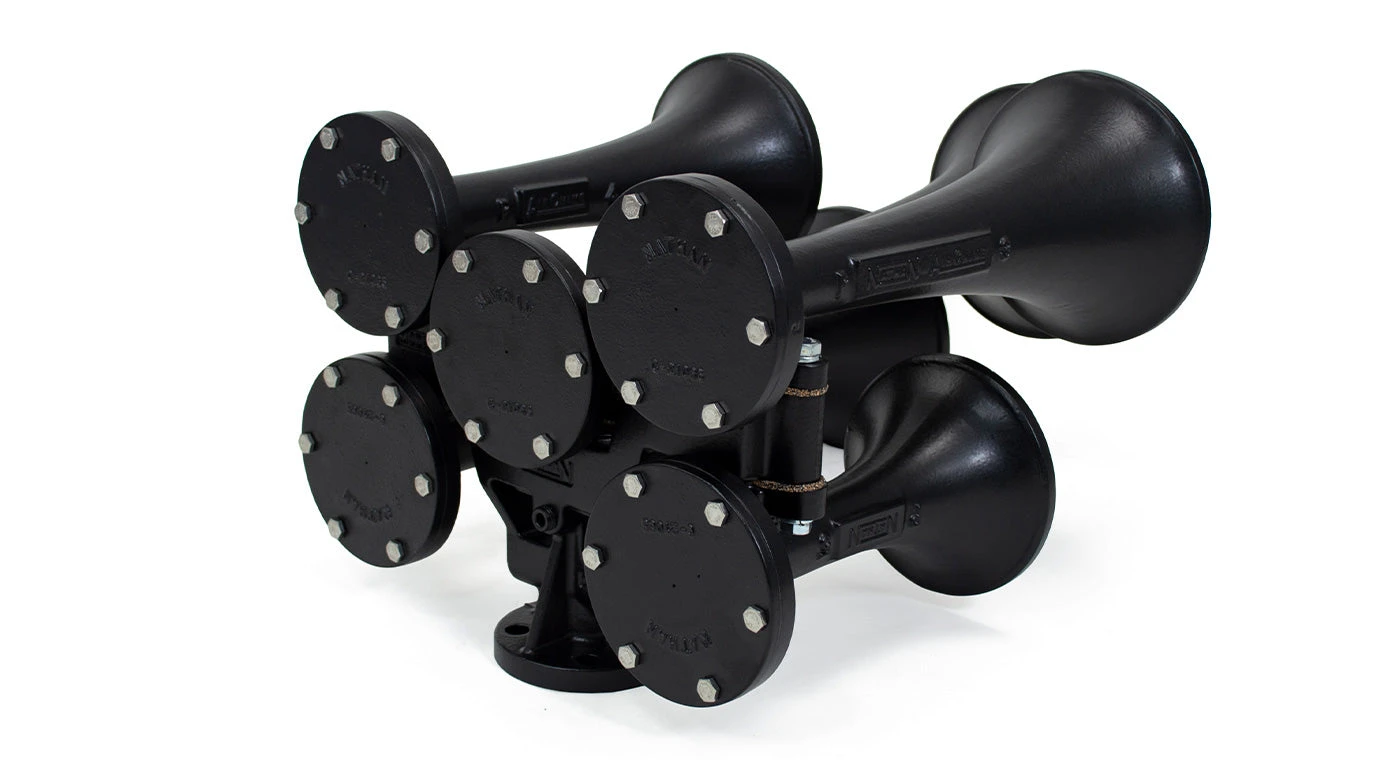

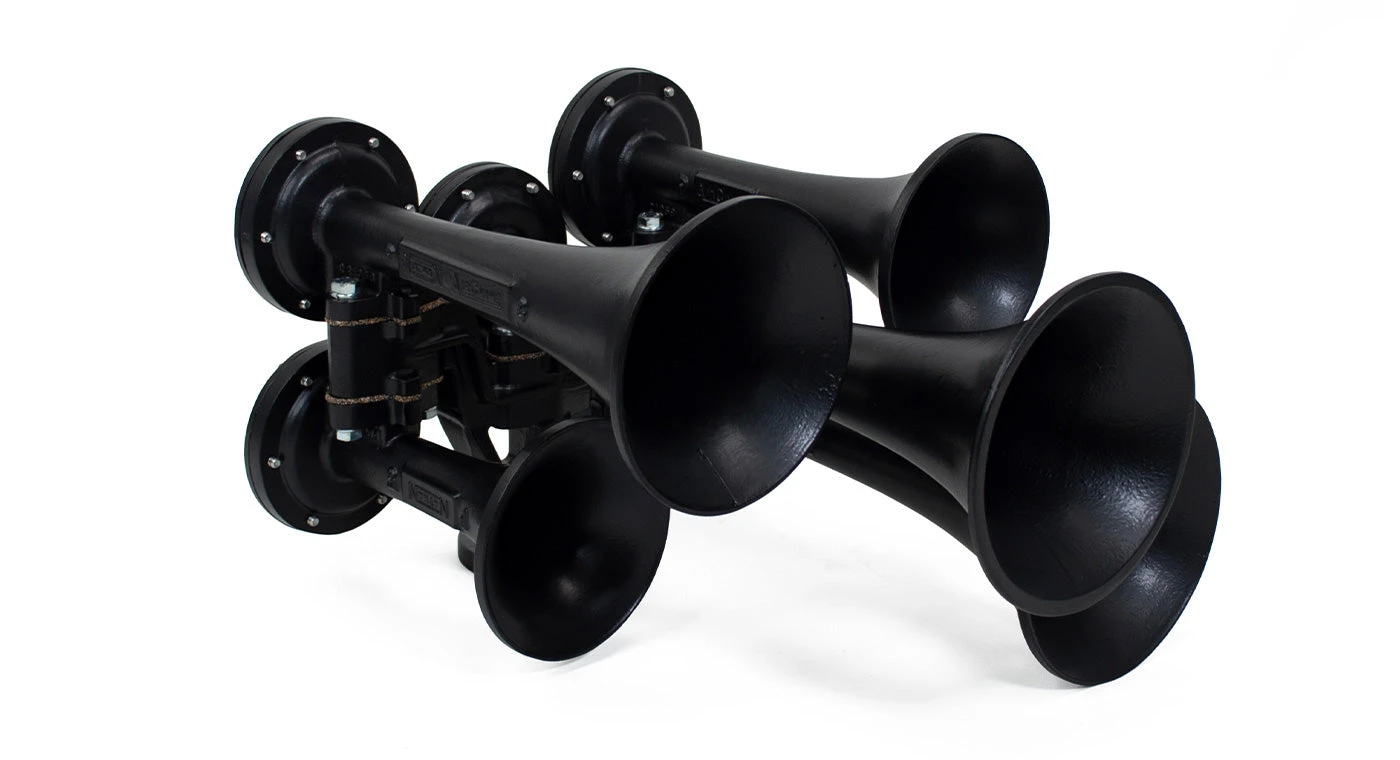

The Nathan P5 train horn is made of sand-cast aluminum, built to last and bring that classic train horn sound to your ride. Paired with the HornAir 544K onboard air system, this kit will give you a massive 5 seconds of continuous blast time, plus the ability to inflate tires in an emergency.

Ready to be heard from miles away? This kit will fill you up fast with a 1-minute and 30-second recharge time and stealth black air compressor. So, let the good times roll and start turnin’ up the volume with our Nathan AirChime P5 544K kit!

• Classic & Authentic Sound: Experience the unmistakable tone of the 50s with the Nathan Airchime P5’s sand-cast aluminum construction.
• Robust & Reliable: Built with industrial-grade stainless steel internals, this horn is a genuine piece from retired locomotives, ensuring unmatched durability.
• Versatile Air System: With the HornAir 544K, not only enjoy up to 5-6 seconds of continuous honking but also inflate tires during emergencies.
• Rapid Recovery: The stealth black 1NM air compressor ensures you’re always ready, recovering the tank in roughly 90 seconds.

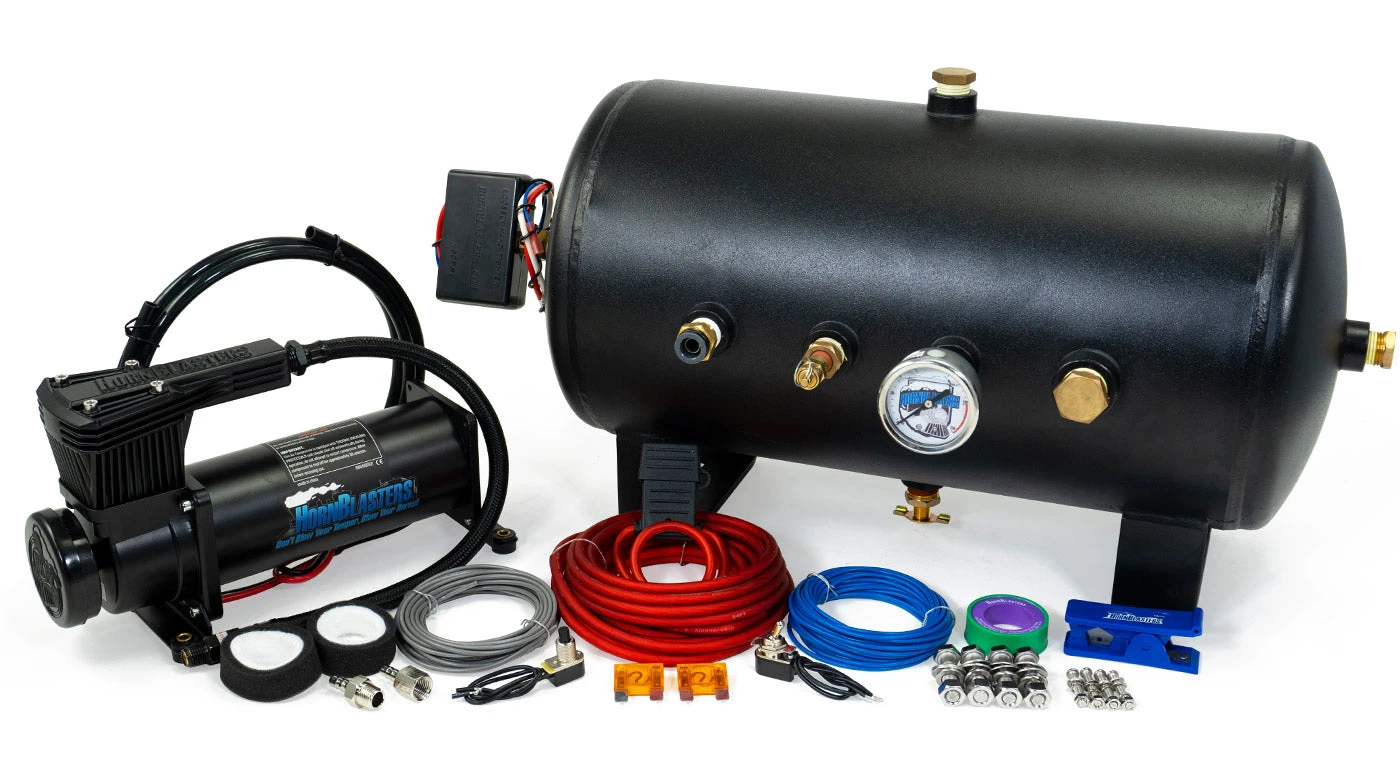

• All-inclusive Package: This kit includes everything needed from start to finish to get you up and honking in no time.

***All Nathan Airchime Horns have a 7-10 Business Day Lead Time!!***

• Nathan Airchime P5 train horn

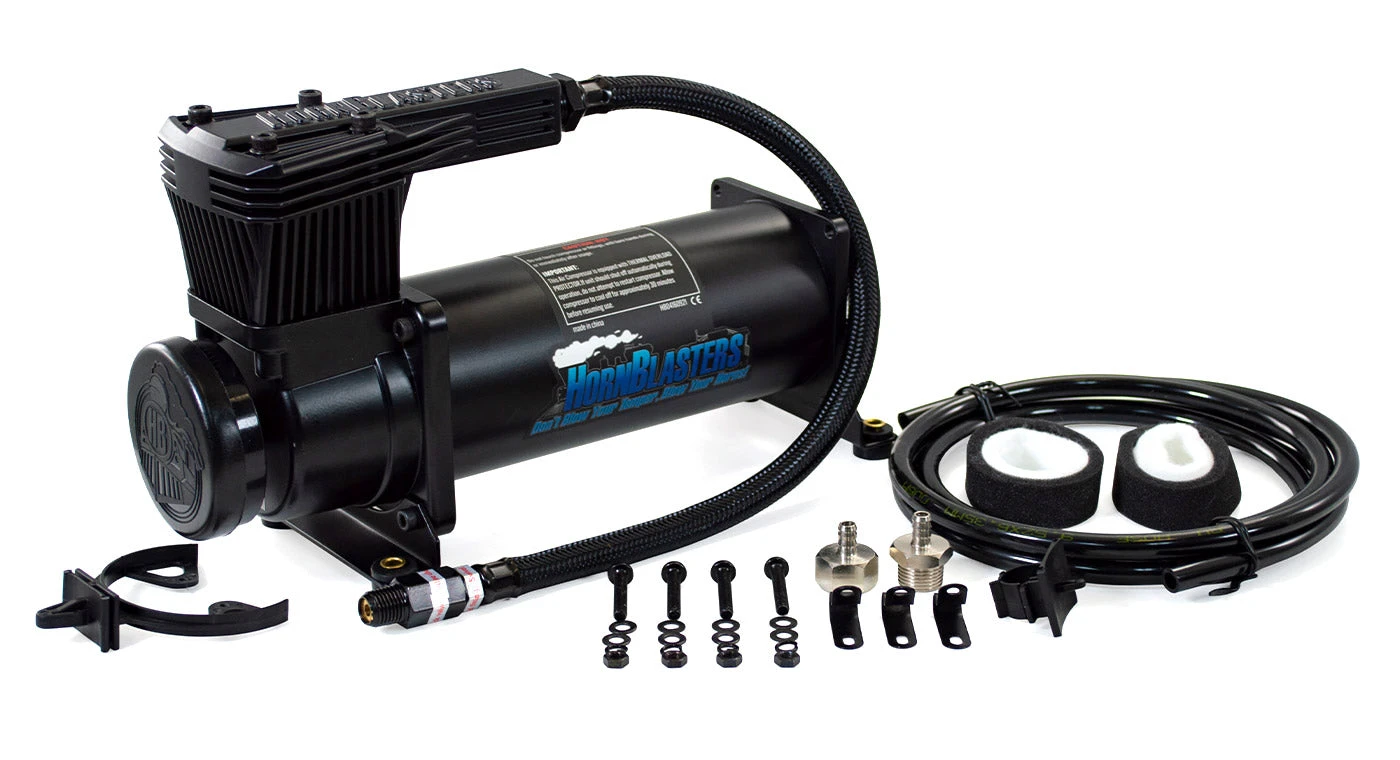

• HORNBLASTERS 1NM STEALTH BLACK AIR COMPRESSOR
• HornAir 5-gallon 8 port air tank
• 110/150 PSI pressure switch w/ 40 amp relay
• Remote mountable air filter housing
• Spare air filter elements
• 17′ of 1/2in D.O.T. approved air line
• Black Widow 1/2″ stainless steel electric air valve kit
• Brass NPT fitting kit including a safety blow-off & drain cock
• 22ft of 10-gauge red wire
• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire

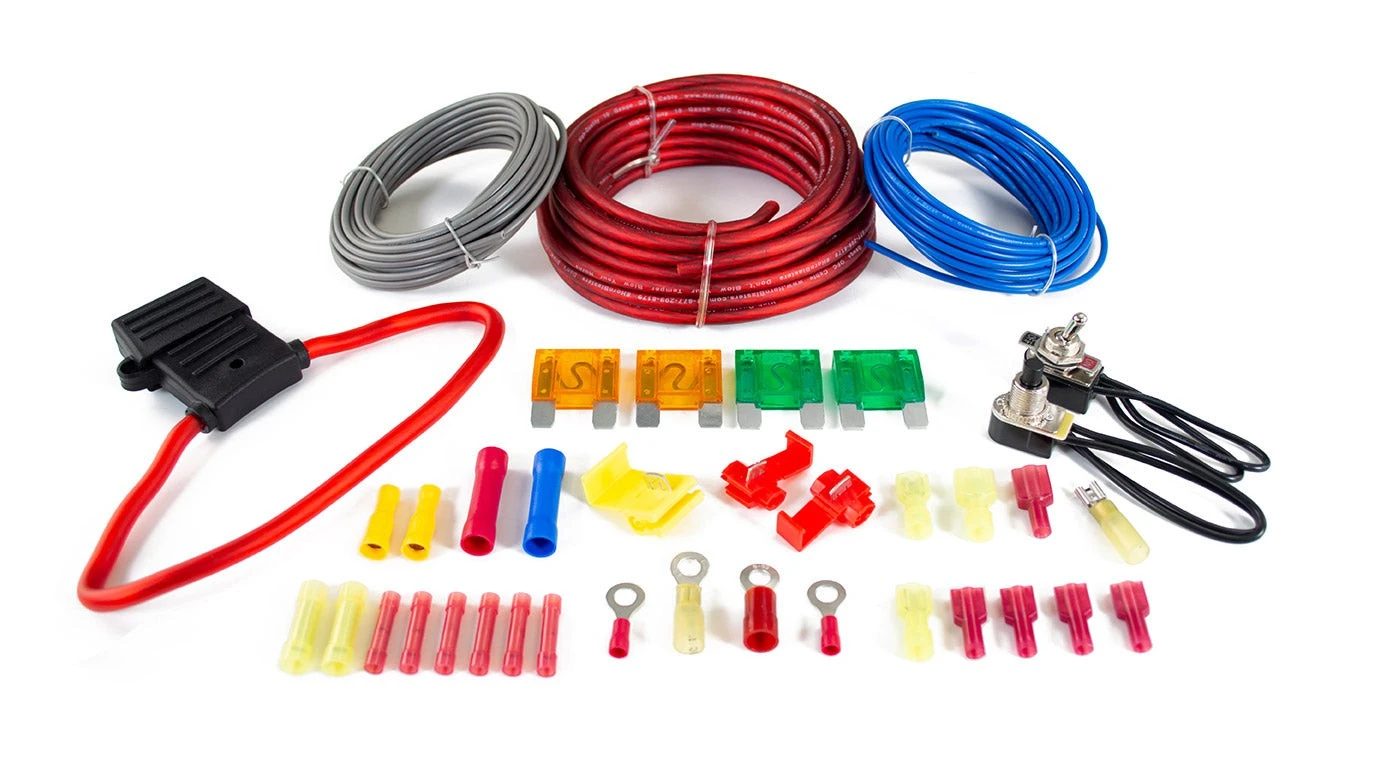

• Complete wiring kit with fuse holder & fuses
• Mounting hardware
• Detailed instructions

• Part Number: HK-P5-544K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: Nathan Airhchime P5 train horn
• Horn Length: 19.5″ (495.3 mm)
• Horn Width: 19.75″ (501.65 mm)
• Horn Height: 10″ (254 mm)
• Horn Weight: 30 lb (13.61 Kg)
• Port: 1/2″ NPT
• Fitting Size: ⅛″ M NPT
• Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Leader Hose/Check Valve: 1/4″ NPT
• Max Tank Size: 5-Gallons (18.93 Liters)
• Max amperage: 25 Amps
• Maximum duty cycle: 100% @ 100 PSI
• Flow Rate @ 0 PSI: 1.75 CFM
• Compressor length: 10.75″ (273.05 mm)
• Compressor width: 4″ (101.6 mm)
• Compressor height: 6.75″ (171.45 mm)
• Weight: 10.1 lb (4.58 Kg)

* Supply Voltage: 13.8 Volts

5-Gallon Air Tank Dimensional Drawing
