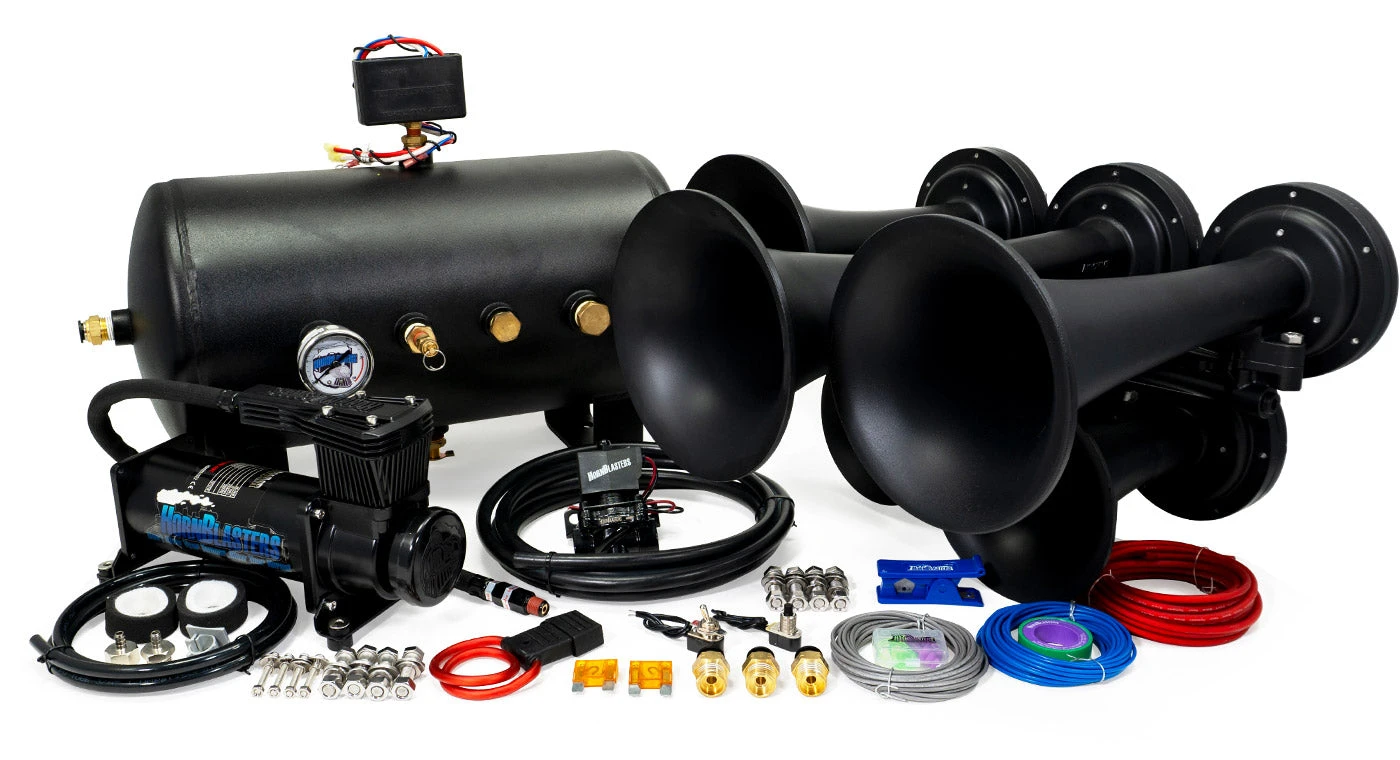

Nathan AirChime K5HA 544K Train Horn Kit

LIKE A RUNAWAY FREIGHT TRAIN

Introducing the Nathan AirChime K5HA train horn kit, a powerful solution that’ll make even the most distracted drivers take notice! With its incredible volume and durability, the K5HA reigns supreme in the train horn world, with die-cast aluminum and stainless steel diaphragms built to withstand any weather.

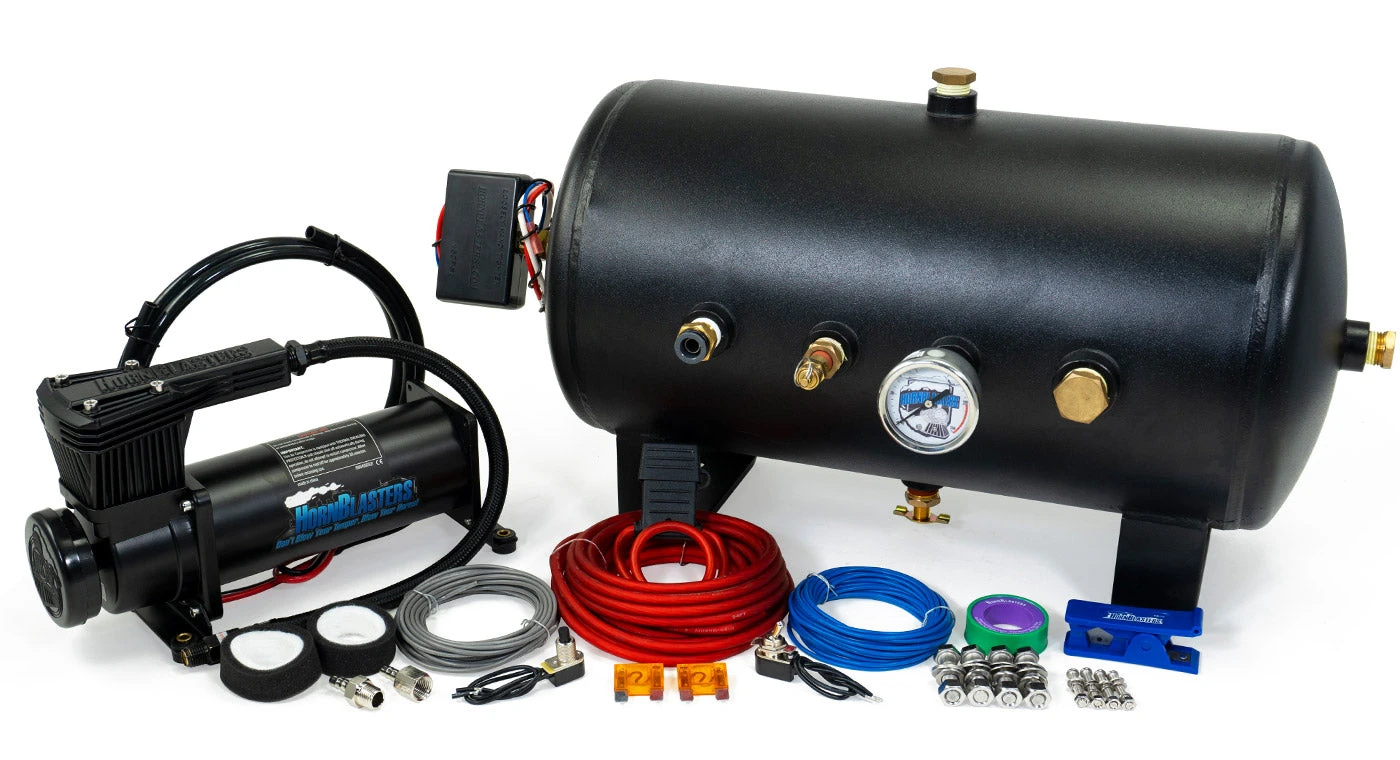

The HornAir 544K onboard air system complements the K5HA’s power, featuring a 5-gallon tank for up to 5 seconds of continuous honking, and a quick recharge time of just 1.5 minutes from 110 to 150 PSI. This complete kit includes everything you need to transform your vehicle into a force to be reckoned with on the road, along with easy-to-follow instructions.

• Premium Sound & Build: Experience unparalleled volume with the K5HA, built with die-cast aluminum and stainless steel internals.
• Swift Recovery: The HornAir 544K air system ensures minimal downtime with a rapid 90-second recovery.
• Railroad Authenticity: Genuine railroad-use horn, delivering unmatched sound intensity on the roads.
• Complete Power Kit: Featuring a robust 1NM air compressor and a generous 5-gallon tank that provides roughly 5 seconds of honk time.
• User-Friendly Installation: Comprehensive kit with all essentials and clear instructions for a hassle-free setup.

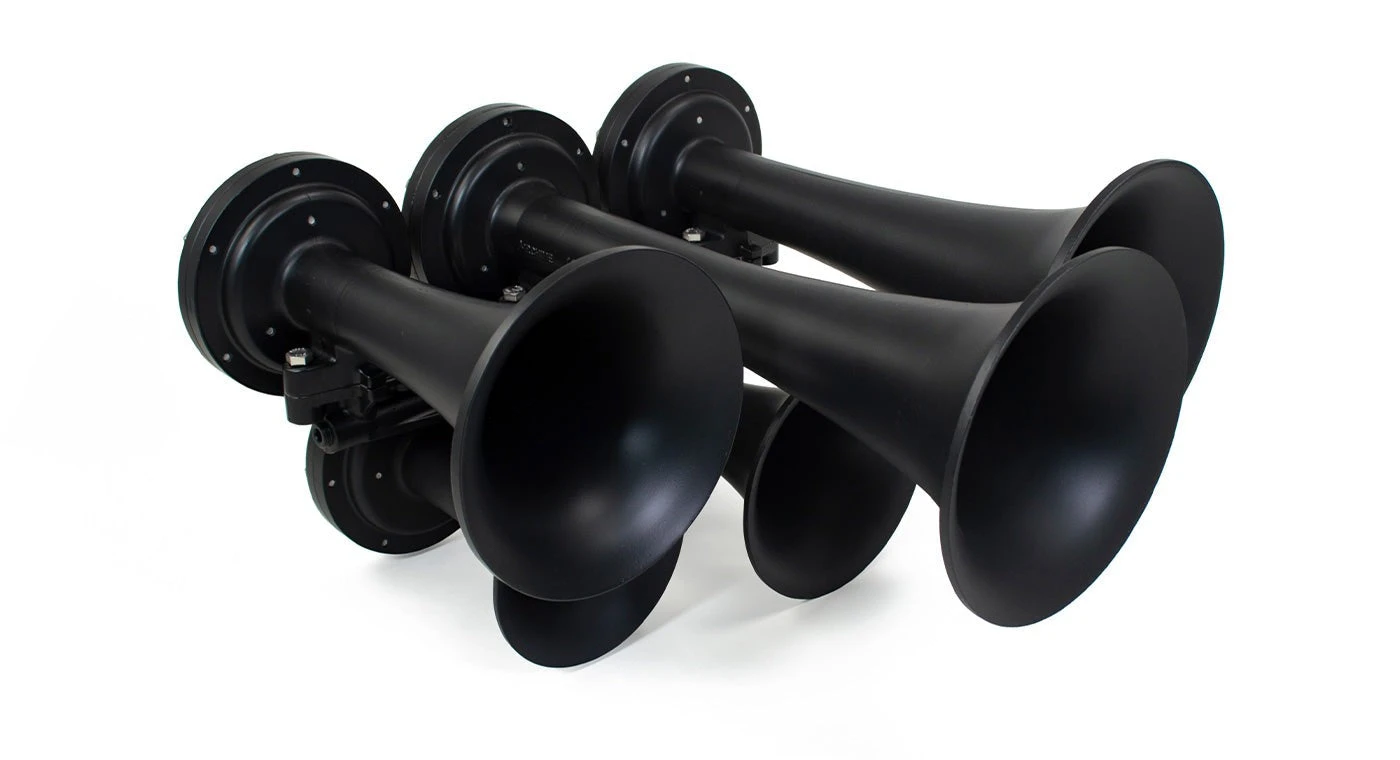

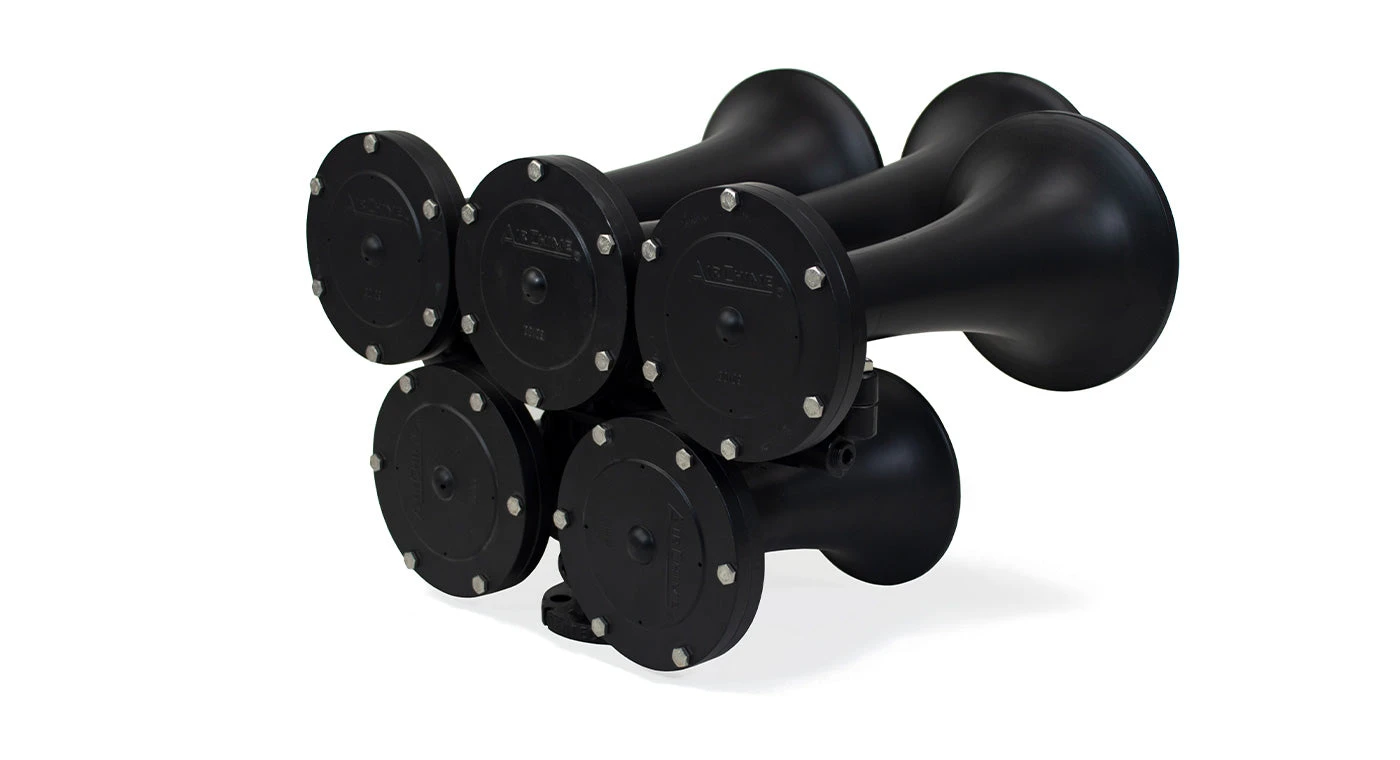

• Nathan Airchime K5HA train horn
• 5-gallon 8 port air tank

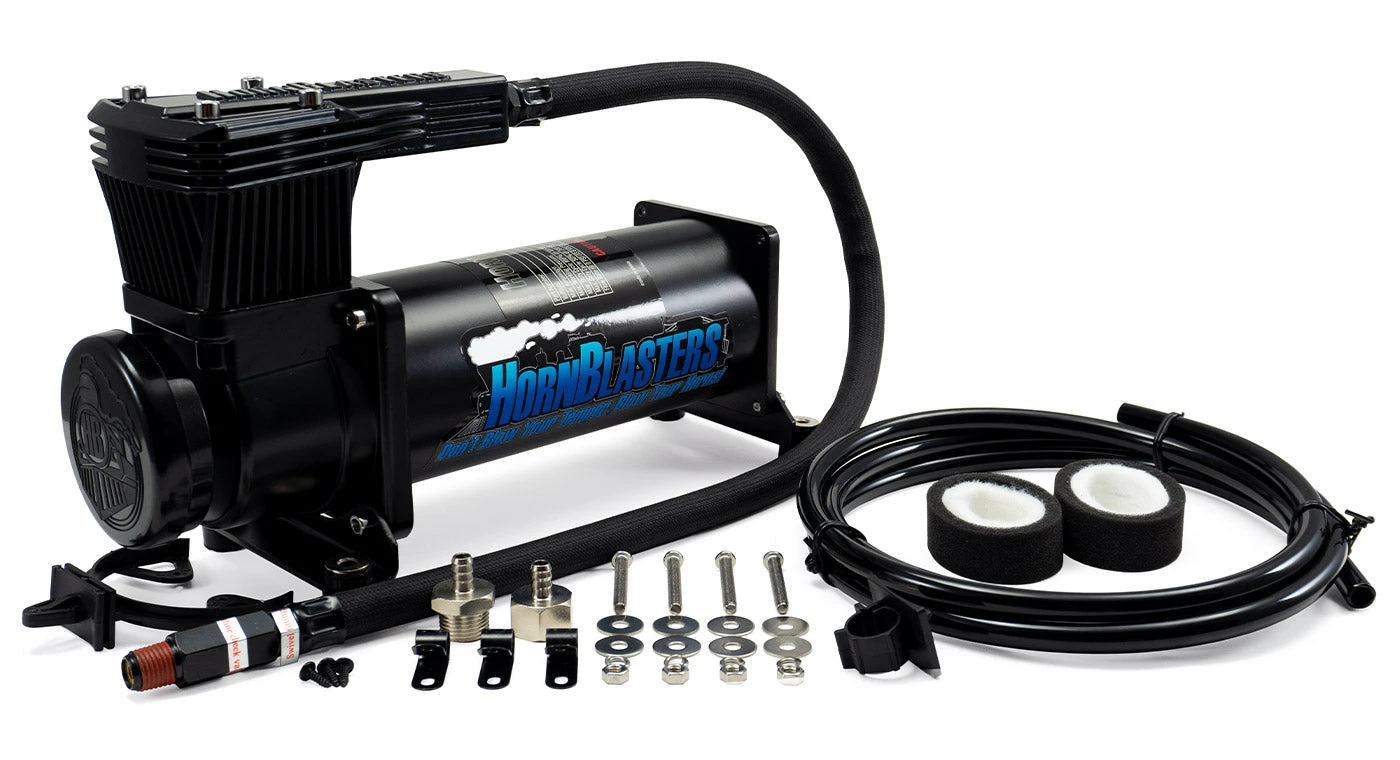

• HORNBLASTERS 1NM STEALTH BLACK AIR COMPRESSOR
• 110/150 PSI Pressure switch w/ 40 amp relay
• Spare air filter elements
• 17′ of 1/2″ D.O.T. approved air line

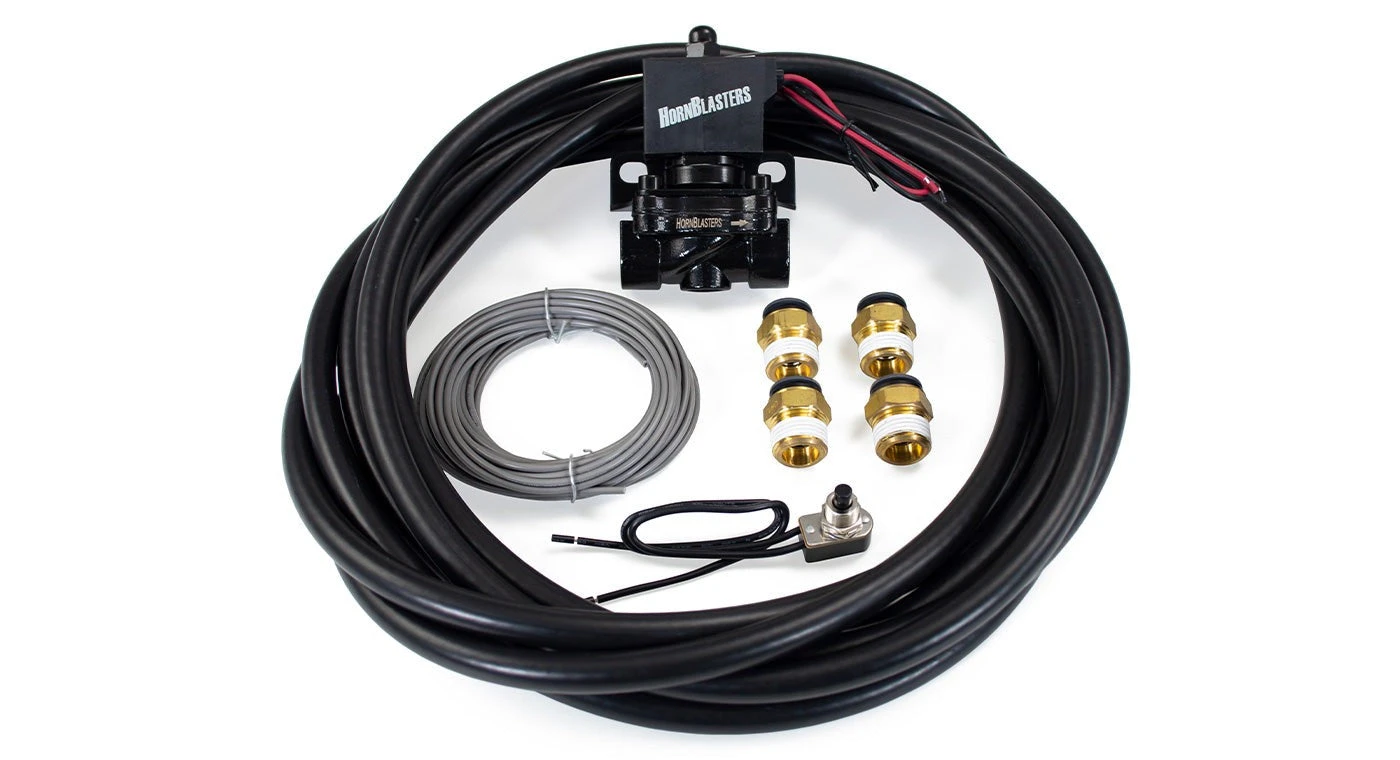

• Black Widow 1/2″ stainless steel electric air valve kit
• 22ft of 10-gauge red wire
• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire

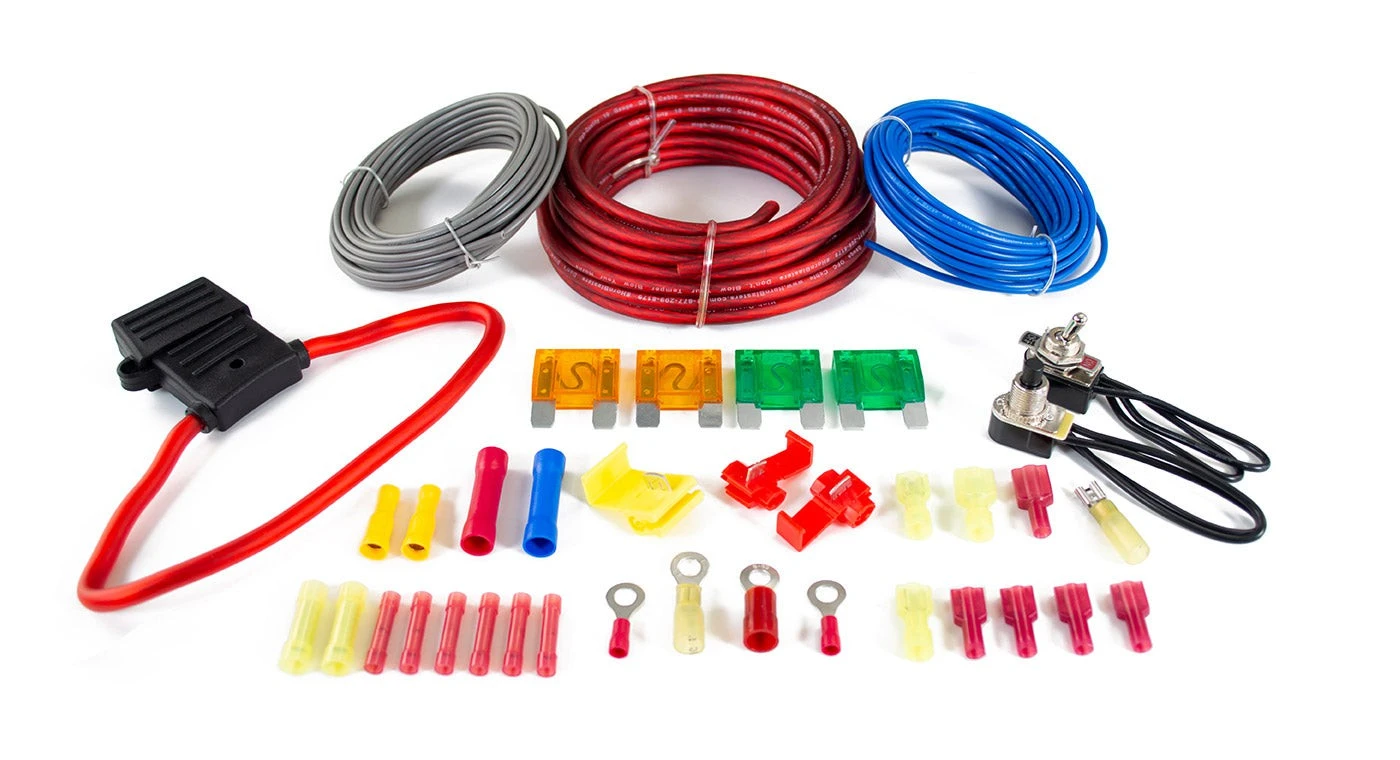

• Complete wiring kit with fuse holder & fuses
• All necessary fittings including a safety blow-off & drain cock
• Detailed Installation Instructions

• Part Number: HK-K5-544K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: Nathan AirChime K5HA (K5 high mount American tune)
• Horn Material: Cast Aluminum
• Horn Length: 19″ (482.6 mm)
• Horn Width: 18″ (457.2 mm)
• Horn Height: 12″ (304.8 mm)
• Horn Weight: 37 lb (16.78 Kg)
• Horn Air Inlet: ½″ NPT
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Tank Ports: x7 1/2″ NPT, x1 3/4″ NPT
• Leader Hose/Check Valve: 1/4″ NPT
• Max amperage: 25 Amps
• Maximum duty cycle: 100% @ 100 PSI
• Flow Rate @ 0 PSI: 1.75 CFM
• Compressor length: 10.75″ (273.05 mm)
• Compressor width: 4″ (101.6 mm)
• Compressor height: 6.75″ (171.45 mm)
• Weight: 10.1 lb (4.58 Kg)

* Supply Voltage: 13.8 Volts

5-Gallon Air Tank Dimensional Drawing
