Katrina 544K Nightmare Edition Train Horn Kit

UNLEASH THE STORM

Hit them with a torrent of train horn sound from our Katrina 544K nightmare edition train horn kit. With 5 large metal horns on a sturdy metal frame, this is one of the loudest 5-chime horns we carry. The kit comes with a stealthy black finish to match our all-black HornAir 544K onboard air system, providing 7-10 seconds of continuous blast time and supporting other onboard air applications like tire inflation and the use of air tools. The kit also includes a 5-gallon 8-port air tank powered by a constant-duty 1NM air compressor.

• Unyielding Sonic Intensity: The Katrina 544K, with its 5 large metal horns on a robust frame, stands as one of our loudest 5-chime offerings, guaranteeing a tidal wave of sound that leaves an indelible mark.
• Stealthy Aesthetics, High Performance: Sporting an all-black stealth finish, the HornAir 544K onboard air system provides 7-10 seconds of honk time.
• Versatility at Its Best: Beyond its impressive sound, the kit supports a variety of onboard applications, from inflating tires to powering air tools.
• All-Inclusive Installation Package: Ease of setup is assured with standard 1/2″ push-to-connect fittings, a comprehensive fitting kit, a safety blow-off, a drain cock, and a precision stainless steel liquid-filled air pressure gauge.
• Extended Air Reservoir: The Sizeable 5-gallon, 8-port air tank ensures you have ample air for prolonged honks and diverse applications, optimizing performance and ensuring readiness at all times.

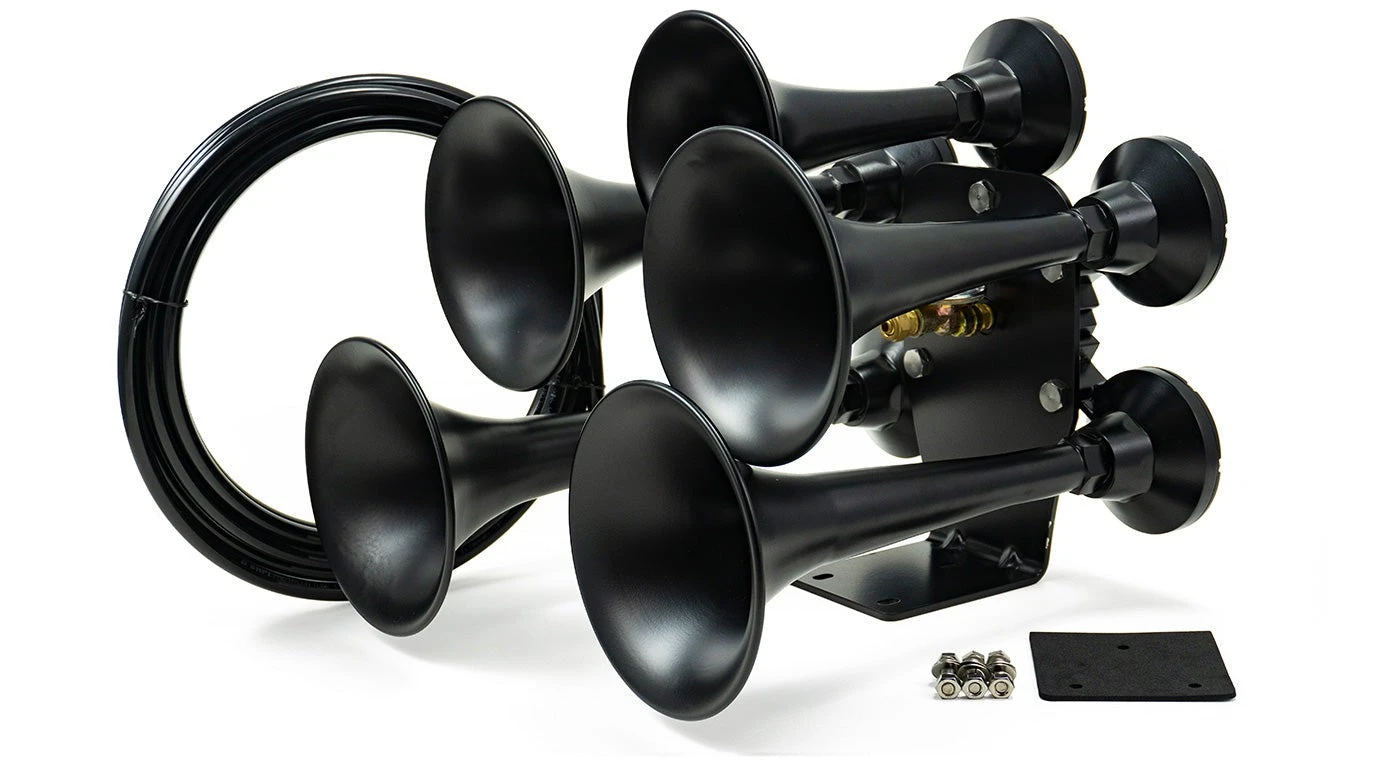

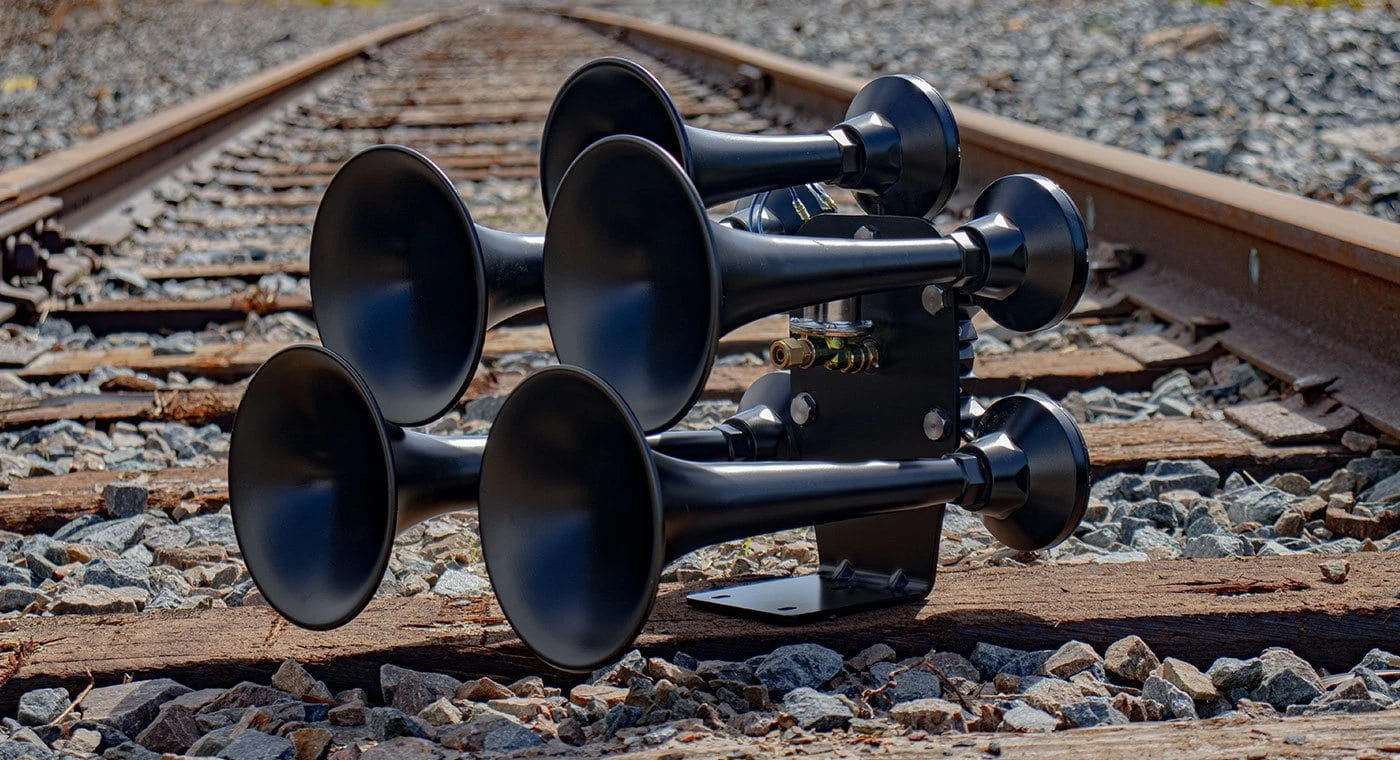

• Katrina 5 chime train horn
• 5-gallon 8 port air tank

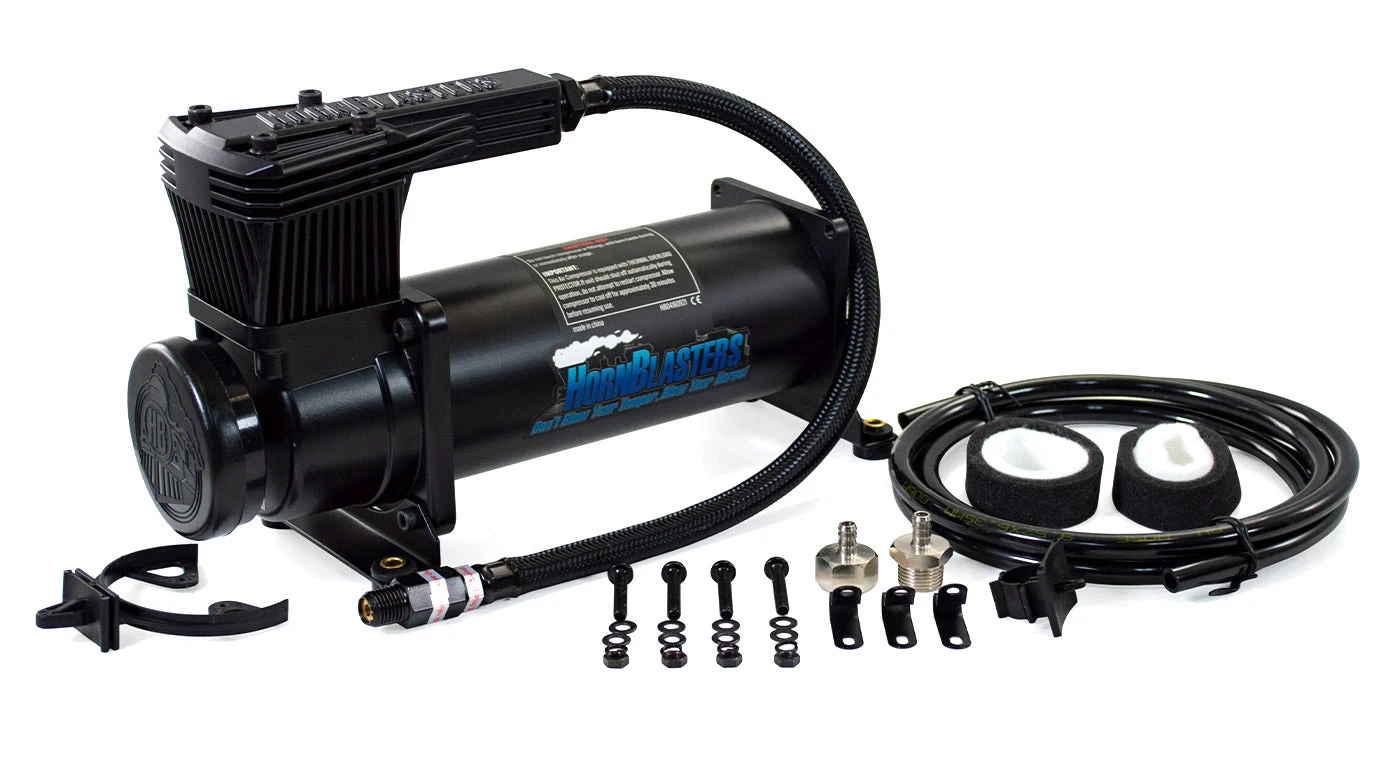

• HornBlasters 1NM Air Compressor
• 110/150 PSI pressure switch w/ built-in 40 amp relay
• Remote mount air filter housing
• Spare air filter elements
• 10ft of 1/2″ air line
• Brass fitting kit with drain cock & safety blow-off
• HornBlasters 200 PSI stainless steel liquid-filled air gauge
• 22ft of 10-gauge red wire
• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire

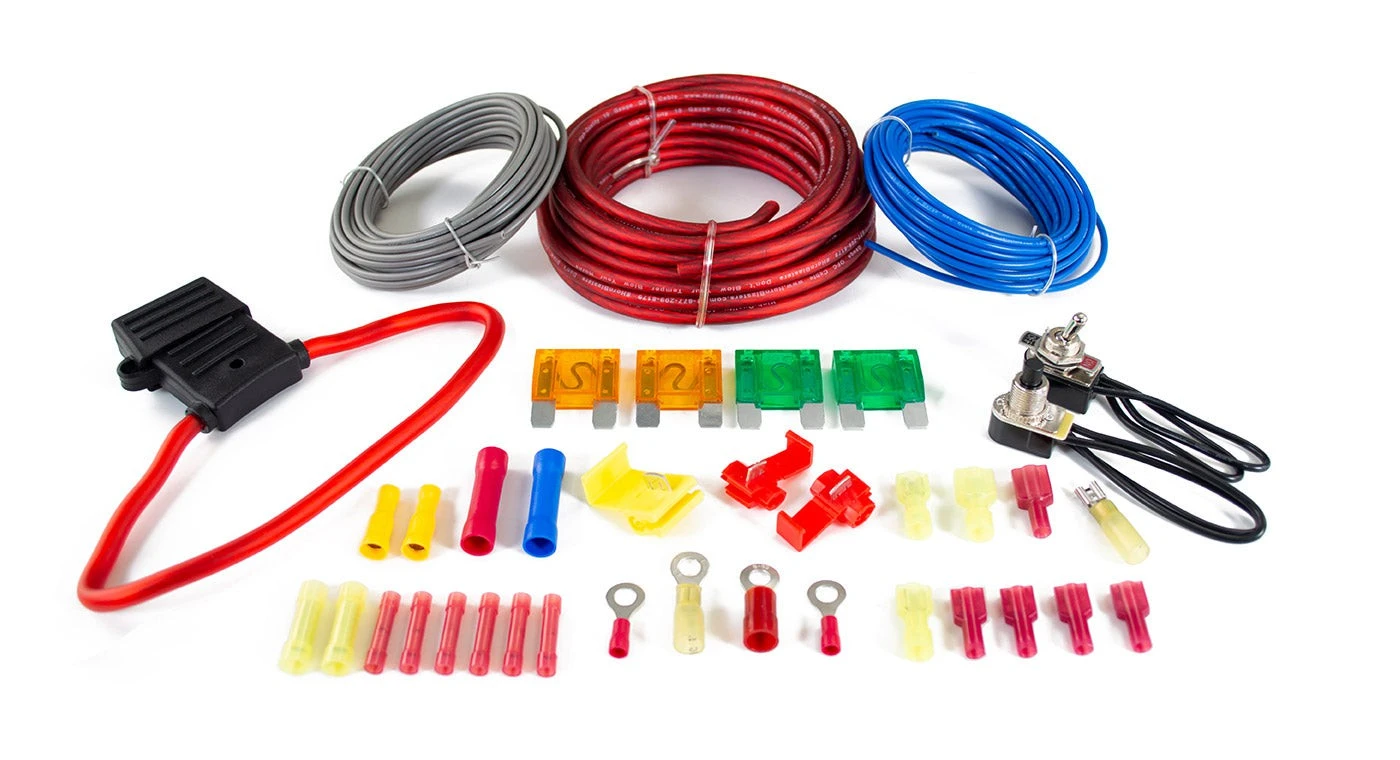

• Complete wiring kit with fuse holder & fuses
• Mounting hardware
• Air line cutter
• Earplugs
• Installation instructions

• Part Number: HK-C5B-544K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: Katrina train horn
• Air Inlet Fitting: 1/2″ air line
• Horn Length: 17″ (43.18 cm)
• Horn Width: 16″ 40.64 cm)
• Horn Height: 13.5″ (342.9 mm)
• Horn Weight: 19.8 lb (8.98 Kg)
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Tank Ports: x7 1/2″ NPT, x1 3/4″ NPT
• Max amperage: 25 Amps
• Maximum duty cycle: 100% @ 100 PSI / 50% @ 200 PSI
• Flow Rate @ 0 PSI: 1.75 CFM
• Compressor length: 10.75″ (273.05 mm)
• Compressor width: 4″ (101.6 mm)
• Compressor height: 6.75″ (171.45 mm)

* Supply Voltage: 13.8 Volts

5-Gallon Air Tank Dimensional Drawing

• HornBlasters Katrina 544K instruction manual
• HornBlasters Katrina 544K compressor wiring diagram
