Overview
SMALL THINGS COME IN GREAT PACKAGES

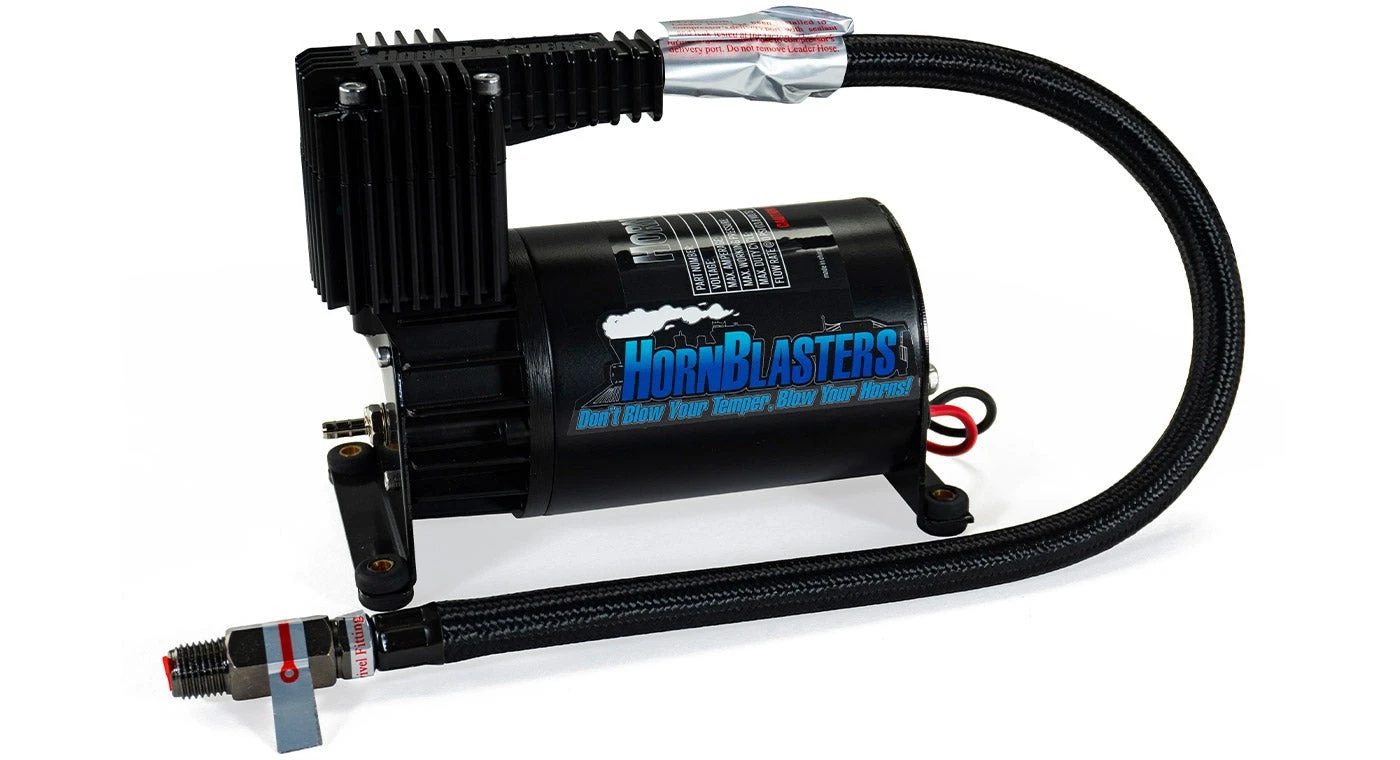

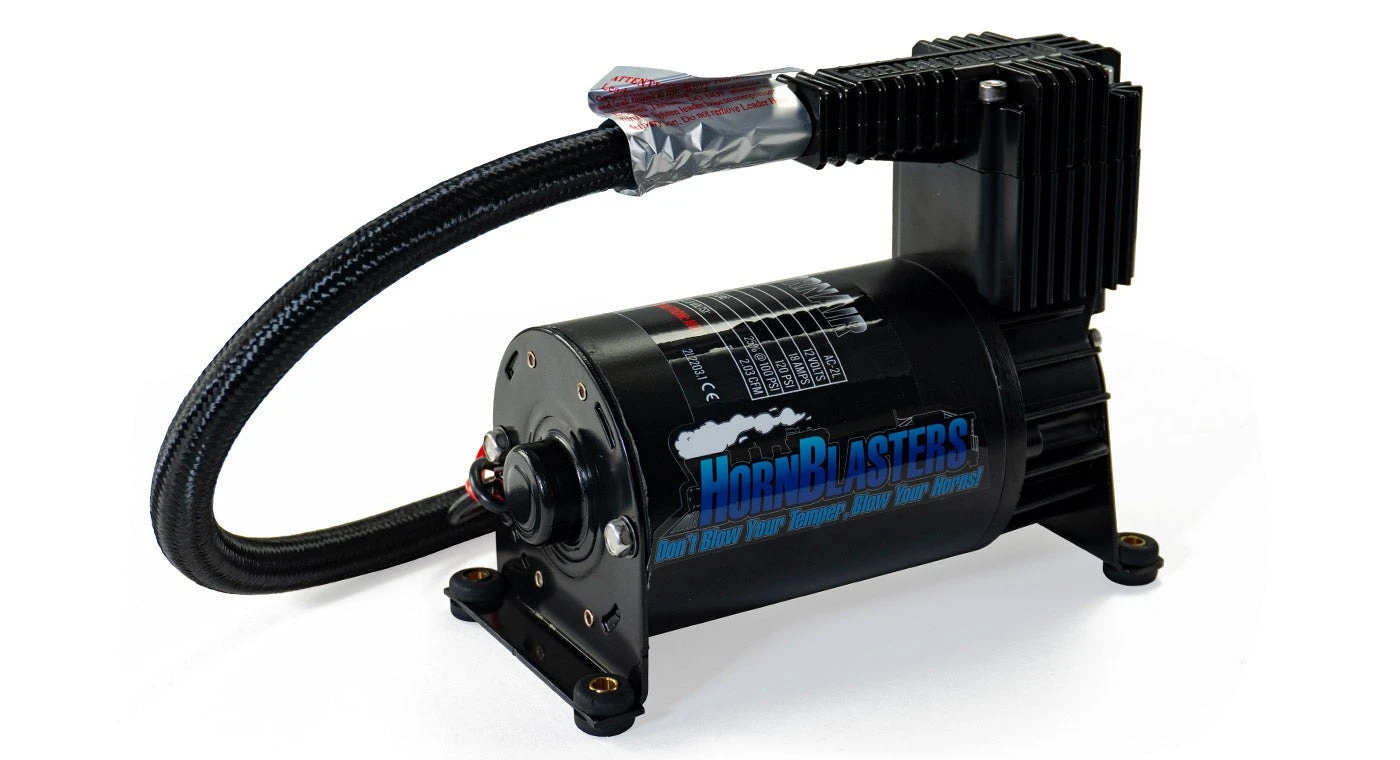

Size doesn’t always dictate performance, and our HornBlasters 2L Air Compressor is living proof. Specifically designed for those on a budget or with builds where space is a premium, this mini compressor packs a punch well above its weight class.
-
Rapid Refill: Fills a 1.5-gallon air tank from 90-120 PSI in a jaw-dropping 35 seconds, ensuring you’re always ready to make some noise.
-
Weather-Resistant: Comes with an air filter relocation kit, safeguarding your unit against the harshest elements.
-
Quality Components: Features a 1/4″ NPT stainless steel leader hose and check valve, highlighting our commitment to durability and performance.
- 25% Duty Cycle: Designed to perform, it offers a 25% duty cycle at 100 PSI, promising longer operational time between rests.
Get your HornBlasters 2L Air Compressor today and experience the bliss of high performance in a compact package. (Viable replacement for Viair 275c)

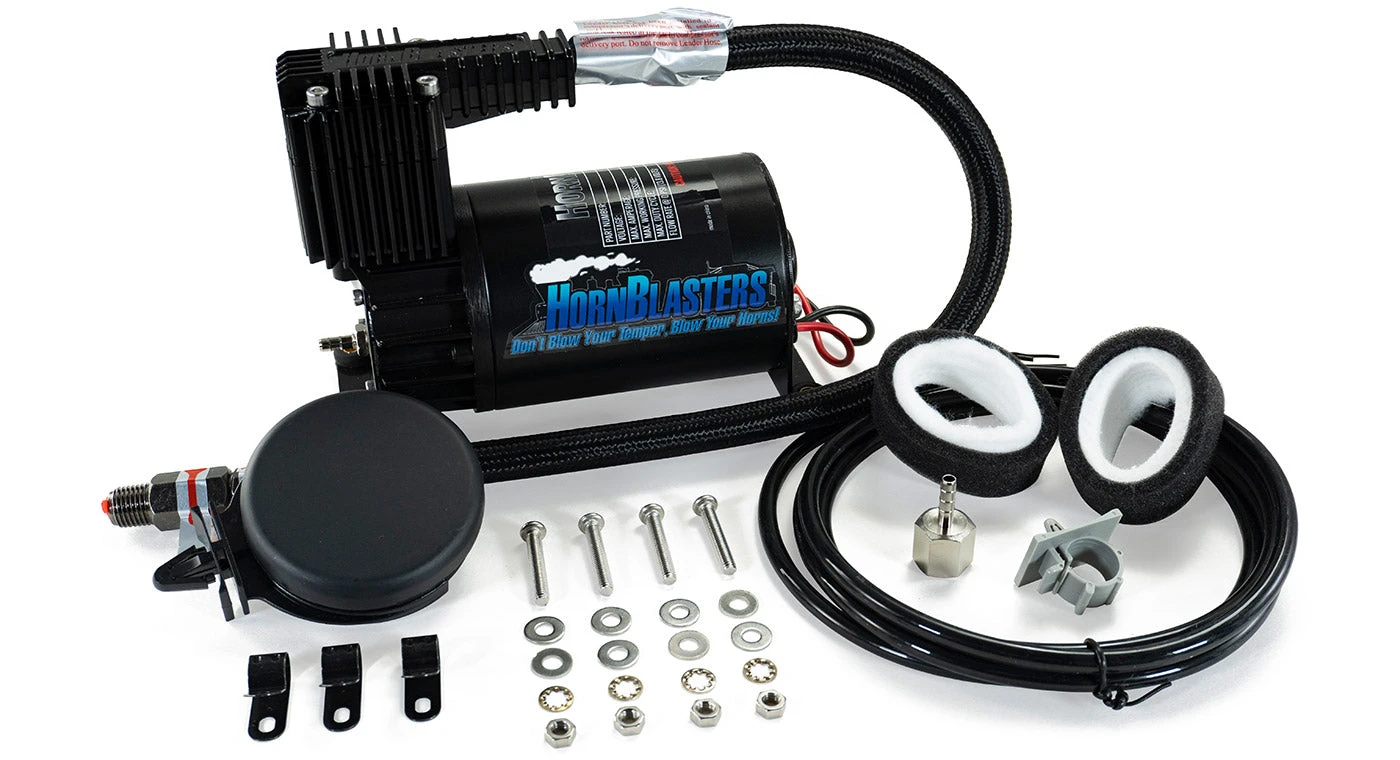

Includes
- HB-2L AIR COMPRESSOR
- 1/4″ NPT STAINLESS STEEL LEADER HOSE & CHECK VALVE
- AIR FILTER HOUSING & SPARE AIR FILTERS
- NECESSARY COMPONENTS FOR RELOCATING THE AIR FILTER
- STAINLESS MOUNTING HARDWARE
Specifications / Fill Rates
- Part number: AC-2L
- Leader Hose/Check Valve: 1/4″ NPT
- Max Tank Size: 2.5-Gallons (9.5 Liters)
- Max amperage: 18 Amps
- Maximum duty cycle: 25% @ 100 PSI
- Flow Rate @ 0 PSI: 2.03 CFM
- Maximum working pressure: 150 PSI
- Compressor length: 6.5″ (165.10 mm)
- Compressor width: 3.5″ (88.90 mm)
- Compressor height: 4.5″ (114.30 mm)
- Weight: 5.2 lb (2.36 Kg)
| 1.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 1 min. 05 sec. (± 10 sec.) |
| 85 to 105 PSI | 14 sec. (± 5 sec.) |
| 0 to 150 PSI | 1 min. 39 sec. (± 10 sec.) |
| 110 to 150 PSI | 28 sec. (± 05 sec.) |
| 1.5 GALLON TANK | FILL RATE |
| 0 to 120 PSI | 2 min. 10 sec. (± 10 sec.) |
| 90 to 120 PSI | 35 sec. (± 05 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 2 min. 29 sec. (± 10 sec.) |
| 85 to 105 PSI | 36 sec. (± 5 sec.) |
| 0 to 150 PSI | 4 min. 7 sec. (± 10 sec.) |
| 110 to 150 PSI | 1 min. 28 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.03 | 10 | 0 | 57.5 | 10 |
| 10 | 1.17 | 12 | 1.0 | 32.0 | 13 |
| 20 | 1.11 | 13 | 2.0 | 30.0 | 14 |
| 30 | 1.04 | 15 | 3.0 | 28.5 | 16 |
| 40 | 1.01 | 15 | 4.0 | 26.5 | 16 |
| 50 | 0.97 | 16 | 5.0 | 24.5 | 17 |
| 60 | 0.92 | 16 | 6.0 | 22.5 | 17 |
| 70 | 0.88 | 17 | 7.0 | 21.5 | 18 |
| 80 | 0.83 | 17 | 8.0 | 20.0 | 18 |
| 90 | 0.79 | 17 | 9.0 | 18.5 | 18 |
| 100 | 0.76 | 18 | 10.0 | 17.0 | 17 |
| 110 | 0.72 | 18 | |||
| 120 | 0.69 | 18 | |||
| 130 | 0.65 | 18 | |||
| 140 | 0.62 | 17 | |||
| 150 | 0.57 | 17 |
* Supply Voltage: 13.8 Volts
