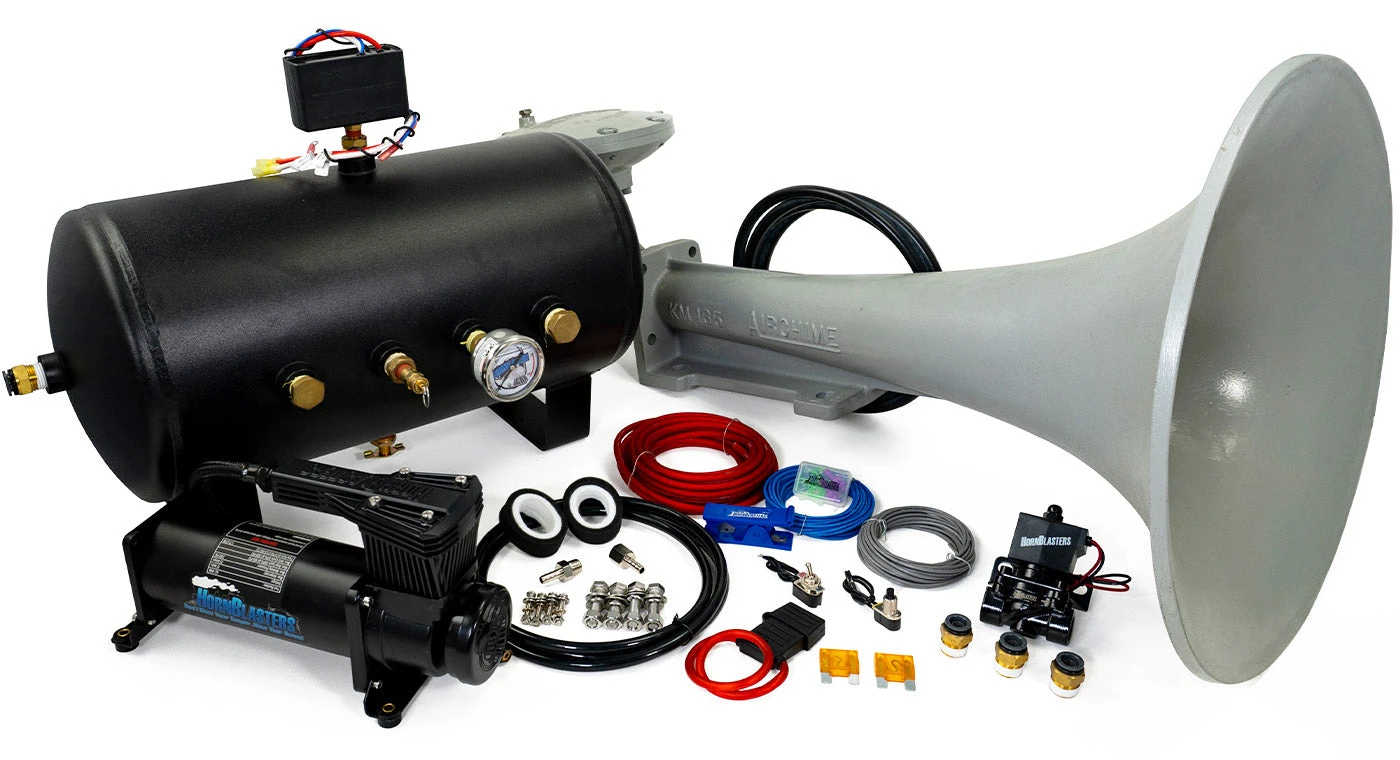

Dreadnought Horn Kit

AIR SUPERIORITY IN KIT FORM

Experience the raw power of a genuine battleship horn with HornBlasters’ Dreadnought Horn. Designed for humongous sea vessels, this horn delivers a commanding sound that’s truly unmatched. Powered by the HornBlasters 1NM air compressor and paired with a 5-gallon 8-port air tank, make a bold statement with this unparalleled sound experience.

• Unrivaled Power: Experience the authentic roar of a battleship horn, designed originally for massive sea vessels, ensuring a dominant presence on the road.
• Built to Last: Crafted from super rugged cast aluminum, this USA-made horn stands as a testament to top-tier quality durability.
• Remarkable Range: With its powerful sound, the Dreadnought horn can command attention from distances up to 2-3 miles away.
• Versatile Kit Superiority: Fueled by the HornBlasters 1NM air compressor and a generous 5-gallon 8-port air tank, this kit not only promises up to 5 seconds of commanding honk time but also the capability to air up tires and operate small air tools.

**Please note that these units must be delivered on a pallet, and as such, there is a $275 shipping charge. If delivery is to a residential address, it’s an additional $150 (This includes lift gate service). You will be contacted after you have made the purchase to confirm shipping arrangements.**

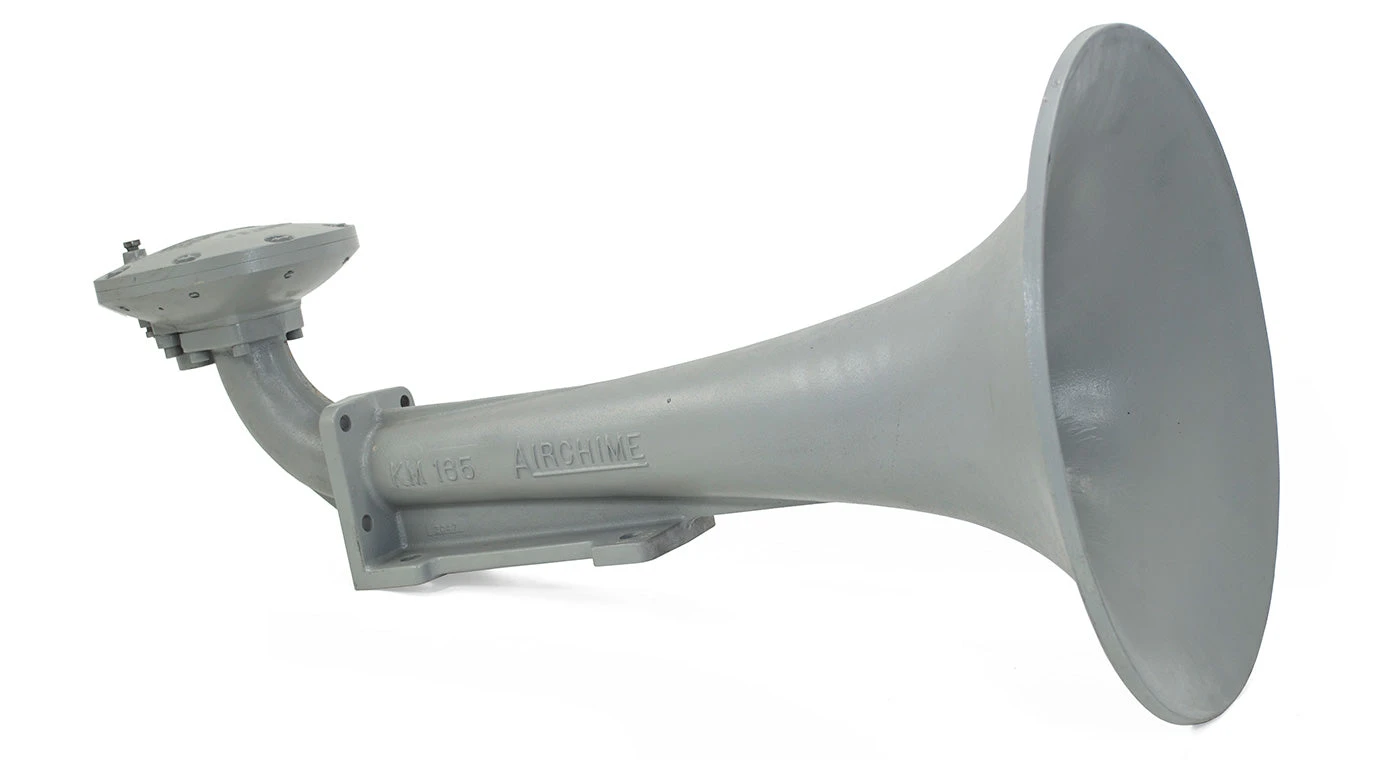

• Dreadnought Horn (KM165)
• 1/2″ NPT Black Widow stainless steel electric air valve
• 5-gallon 8 port air tank

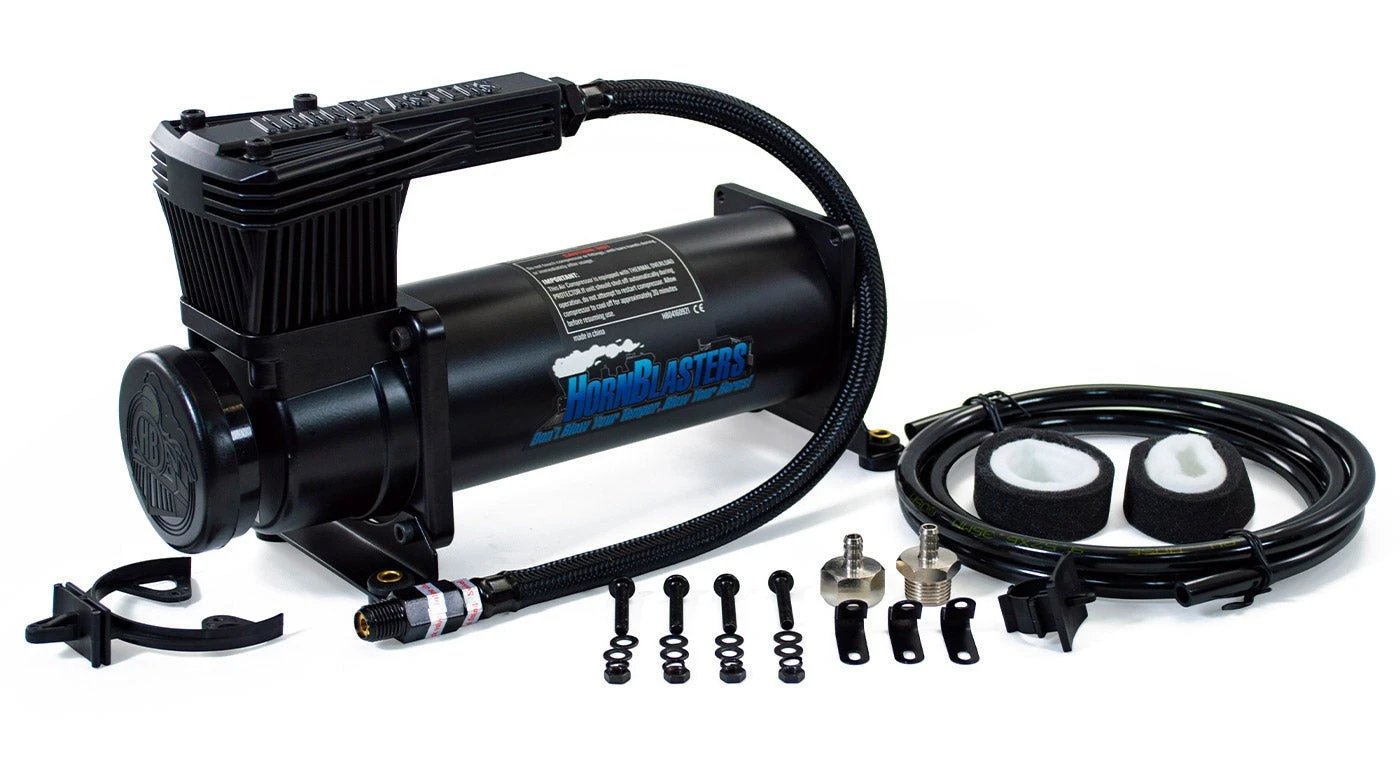

• AC-1NM Stealth Black Air Compressor
• 110/150 PSI pressure switch w/ 40 amp relay
• Remote mountable intake filter
• Spare air filter elements
• 10ft of 5/16″ D.O.T. approved air line
• 17ft of 1/2″ D.O.T. approved air line
• 6 ft of 3/8″ air line (for air compressors air intake)
• HornBlasters 200 PSI stainless steel liquid-filled air gauge
• 22ft of 10-gauge red wire
• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire

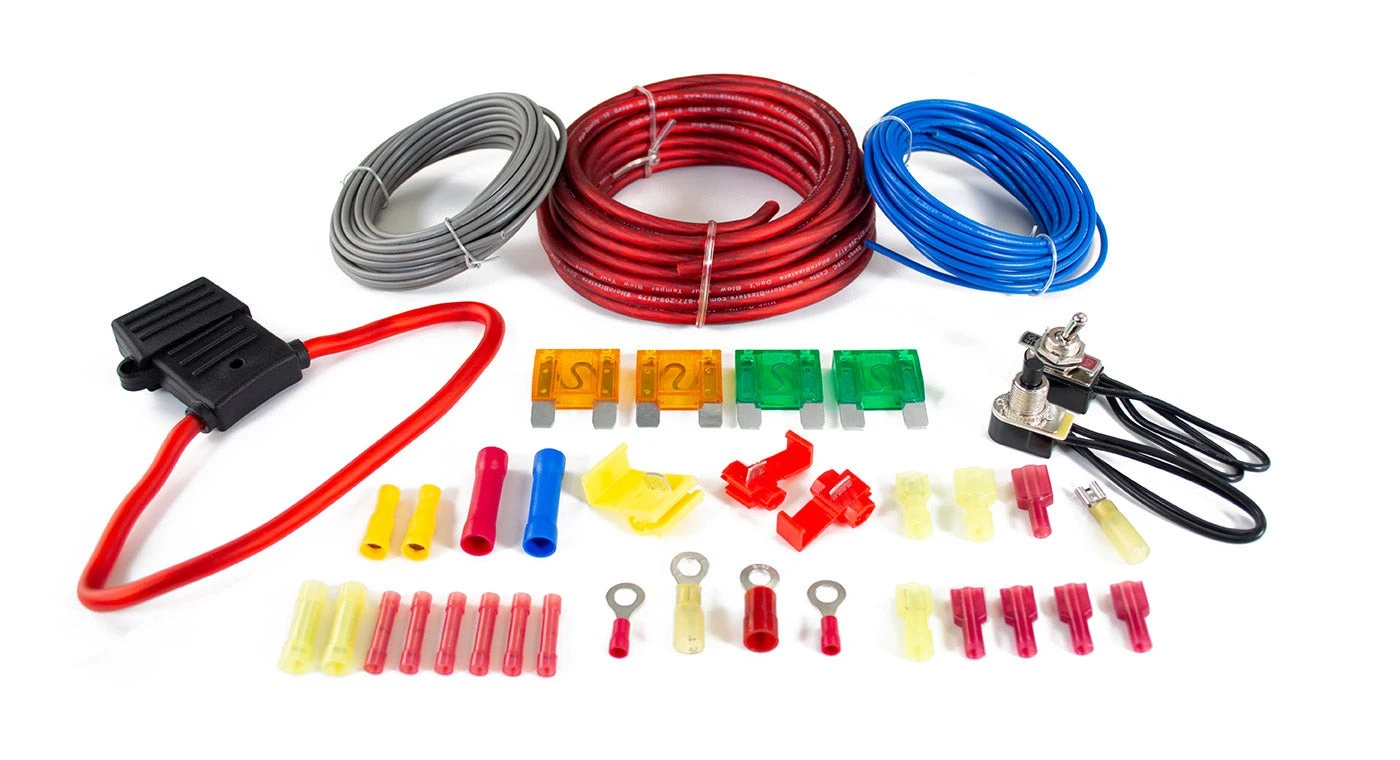

• Complete wiring kit with fuse holder & fuses
• Brass NPT fitting kit with safety blowoff & drain cock
• Mounting hardware
• Air line cutter
• Detailed instructions
• Earplugs

• Part Number: HK-BS165-544K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: KM165 Destroyer Horn
• Horn Length: 34″ (864 mm)
• Horn Width: 18″ (457 mm)
• Horn Height: 18″ (457 mm)
• Horn Weight: 31 lbs (14Kg)
• Horn Material: Cast Aluminum
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Tank Ports: x7 1/2″ NPT, x1 3/4″ NPT
• Air Compressor: AC-1NM Air Compressor
• Max amperage: 25 Amps
• Maximum duty cycle: 100% @ 100 PSI
• Flow Rate @ 0 PSI: 1.75 CFM
• Compressor length: 10.75″ (273.05 mm)
• Compressor width: 4″ (101.6 mm)
• Compressor height: 6.75″ (171.45 mm)

* Supply Voltage: 13.8 Volts

5-Gallon Air Tank Dimensional Drawing
