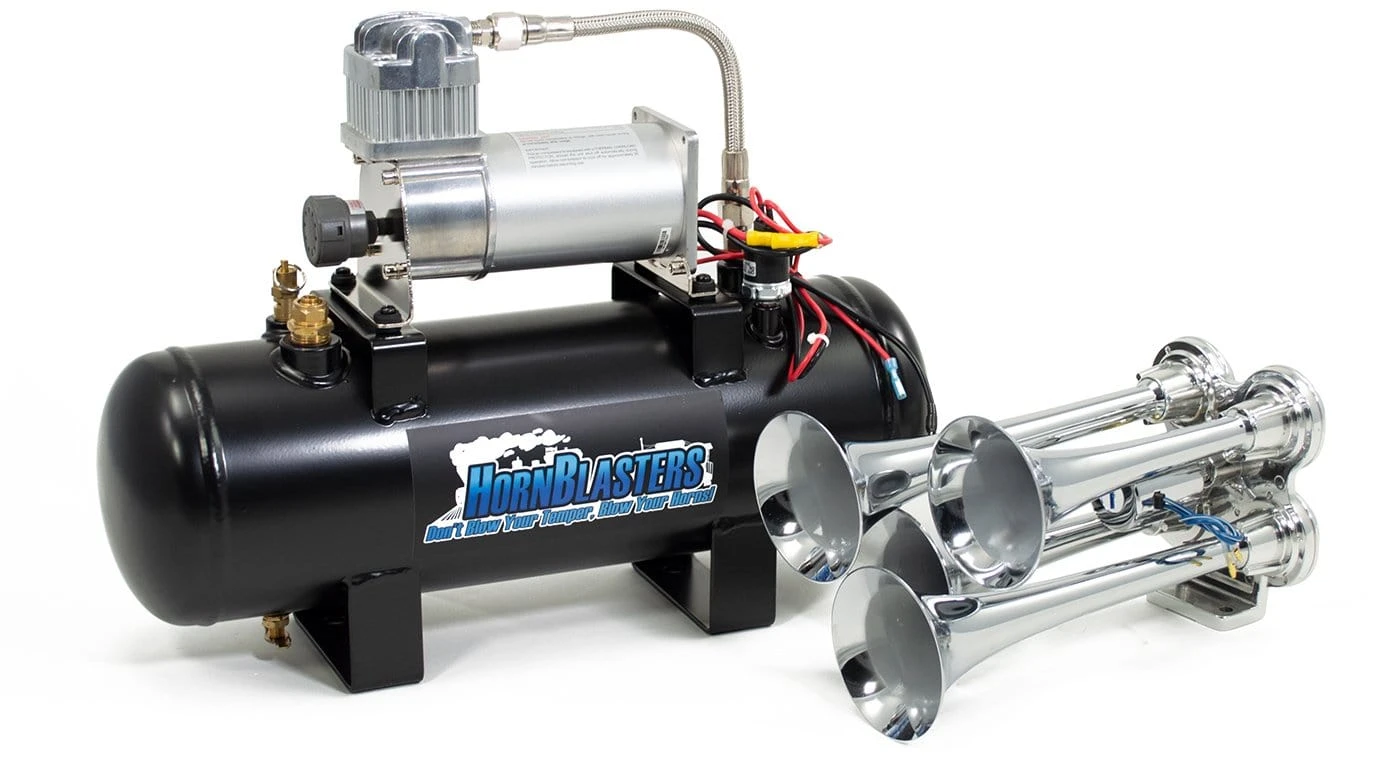

Bullet 228H Air Horn Kit

HONK HONK! PEW PEW!

Prepare for liftoff with the pocket-rocket of air horns, the Bullet 228H! This budget-friendly, bite-sized blaster rivals the roar of monstrous train horns, making it perfect for beginners and tight spaces. Pre-plumbed and pre-wired, it’s a breeze to install.

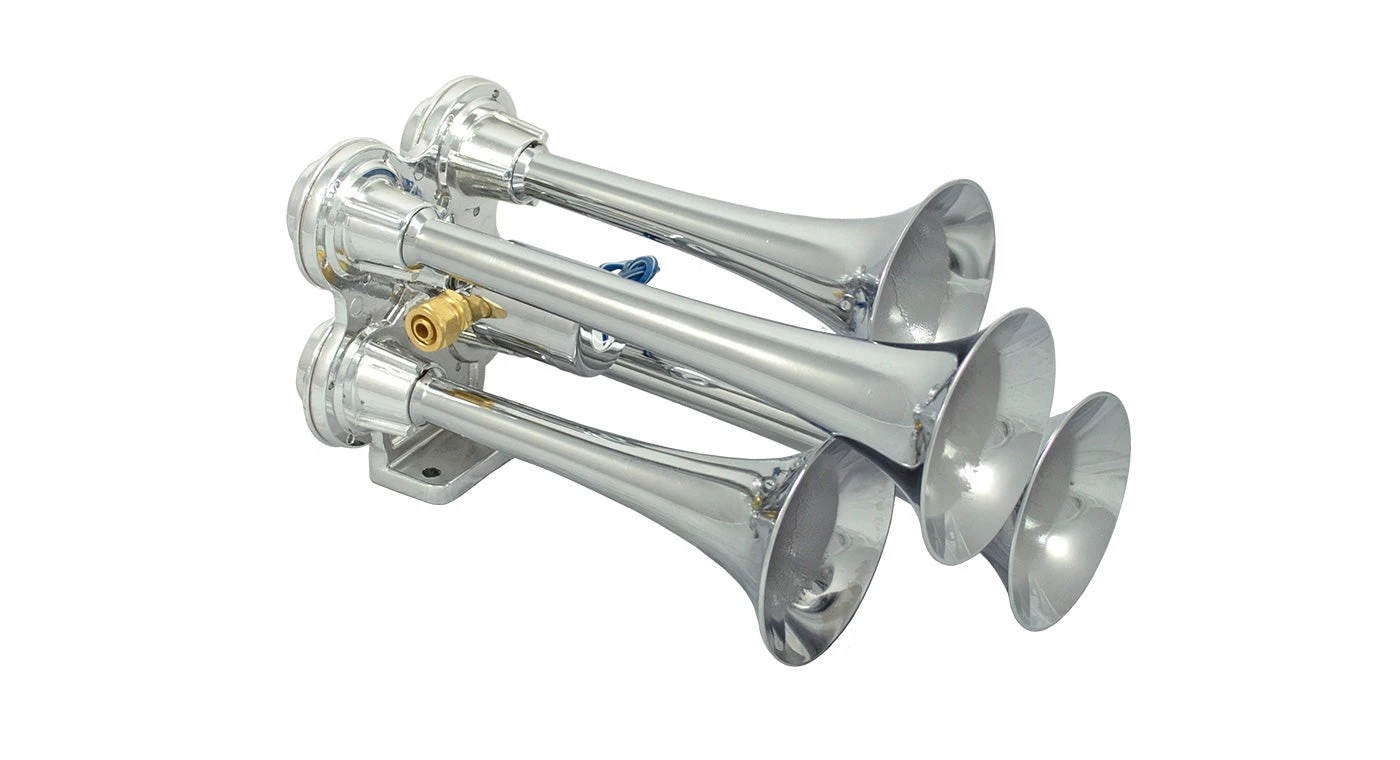

Though the Bullet air horn is a mere foot long, it belts out a sound that’ll leave a lasting impression. The 1/4″ valve comes pre-installed, so you’ll be honking in no time.

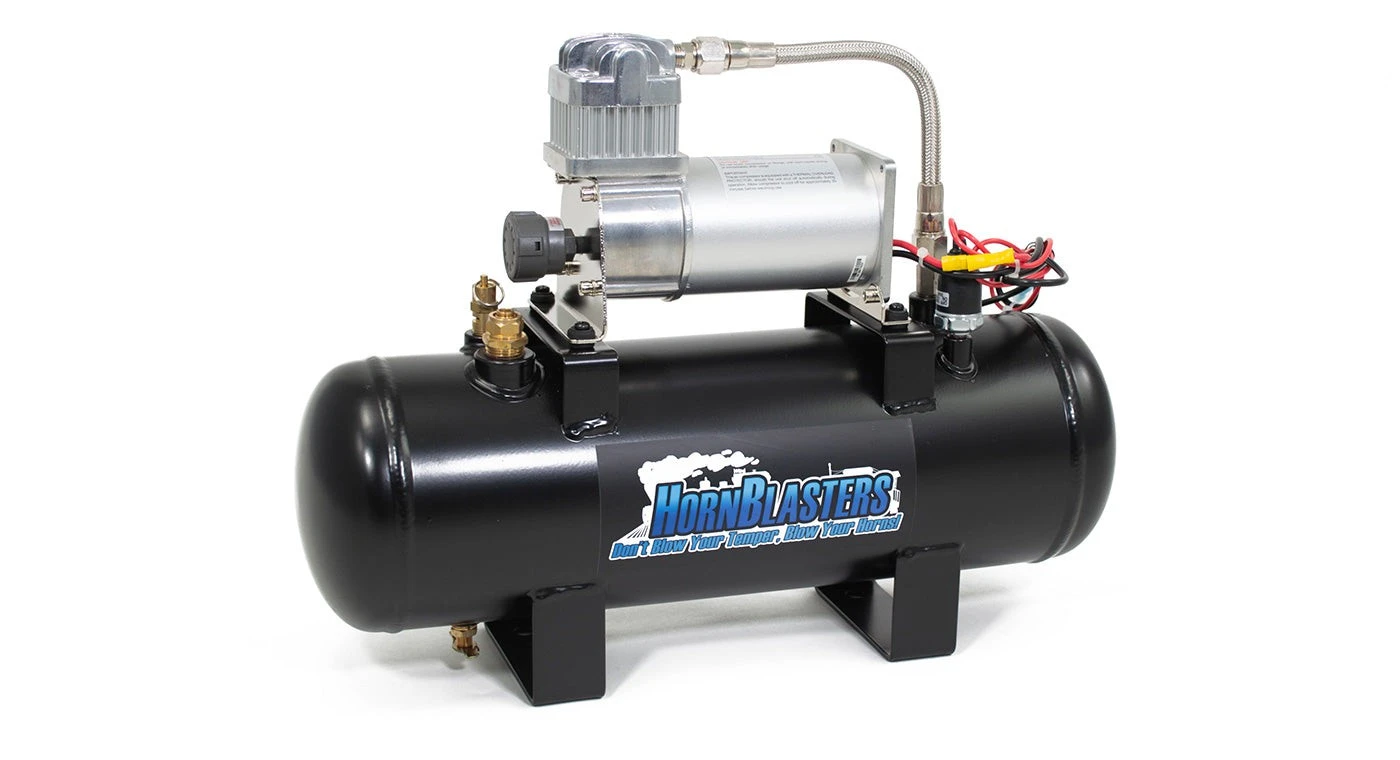

Teamed up with the HornAir 228H air source unit, this dynamic duo delivers a compact yet potent punch. The 2-gallon air tank supplies up to 5 seconds of blast time, while the 280C air compressor recharges from 110-145 PSI in a mere 75 seconds.

• Pocket-Sized Power: Despite its compact size, the Bullet air horn blasts a sound rivaling that of formidable train horns, making it the ideal choice for both novices and those with space constraints.
• Hassle-Free Installation: This kit includes everything needed from start to finish. With a pre-assembled air source unit, pre-installed fittings, and a horn with a pre-installed air valve, you’ll be up and honking in no time.
• Efficient Air System: The HornAir 228H unit, equipped with a 2-gallon tank, provides up to 5 seconds of honk time, and with the speedy 280C air compressors, recovering the tank in a roughly 75 seconds.

(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc… Failure to mount this product as directed will void the warranty)

**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

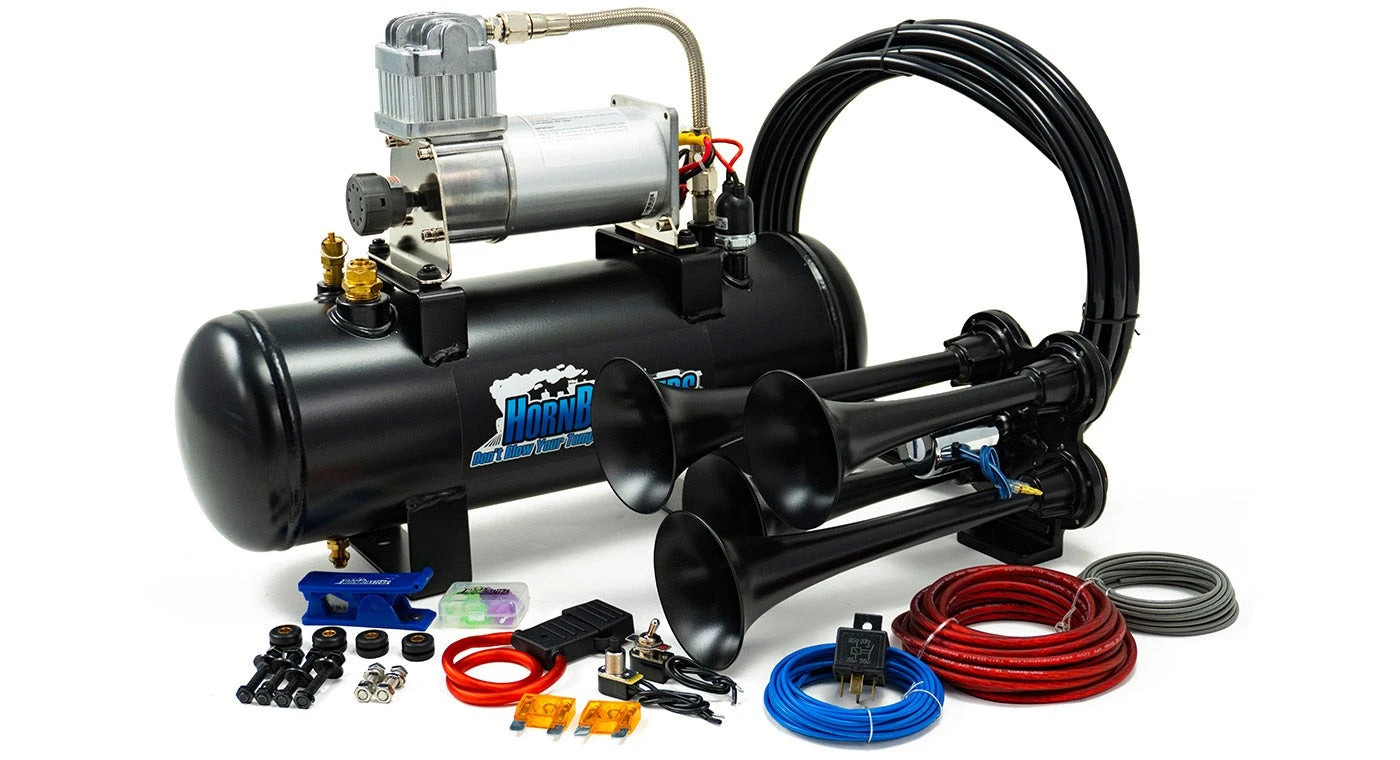

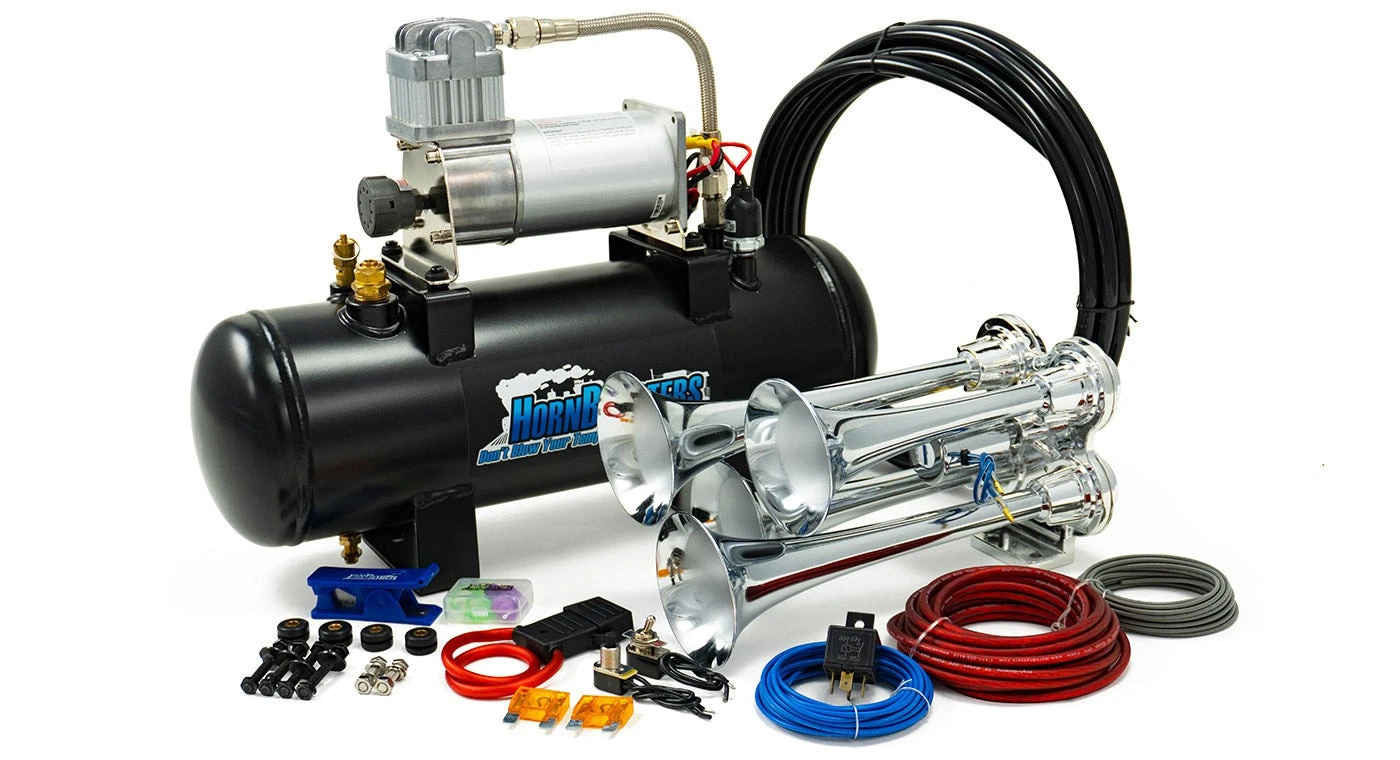

• HornBlasters Bullet air horn
• HornBlasters 228H air source unit
• 17ft 1/2in DOT Spec air line
• Pre-installed 1/4″ electric air valve
• 22ft of 10-gauge red wire
• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire

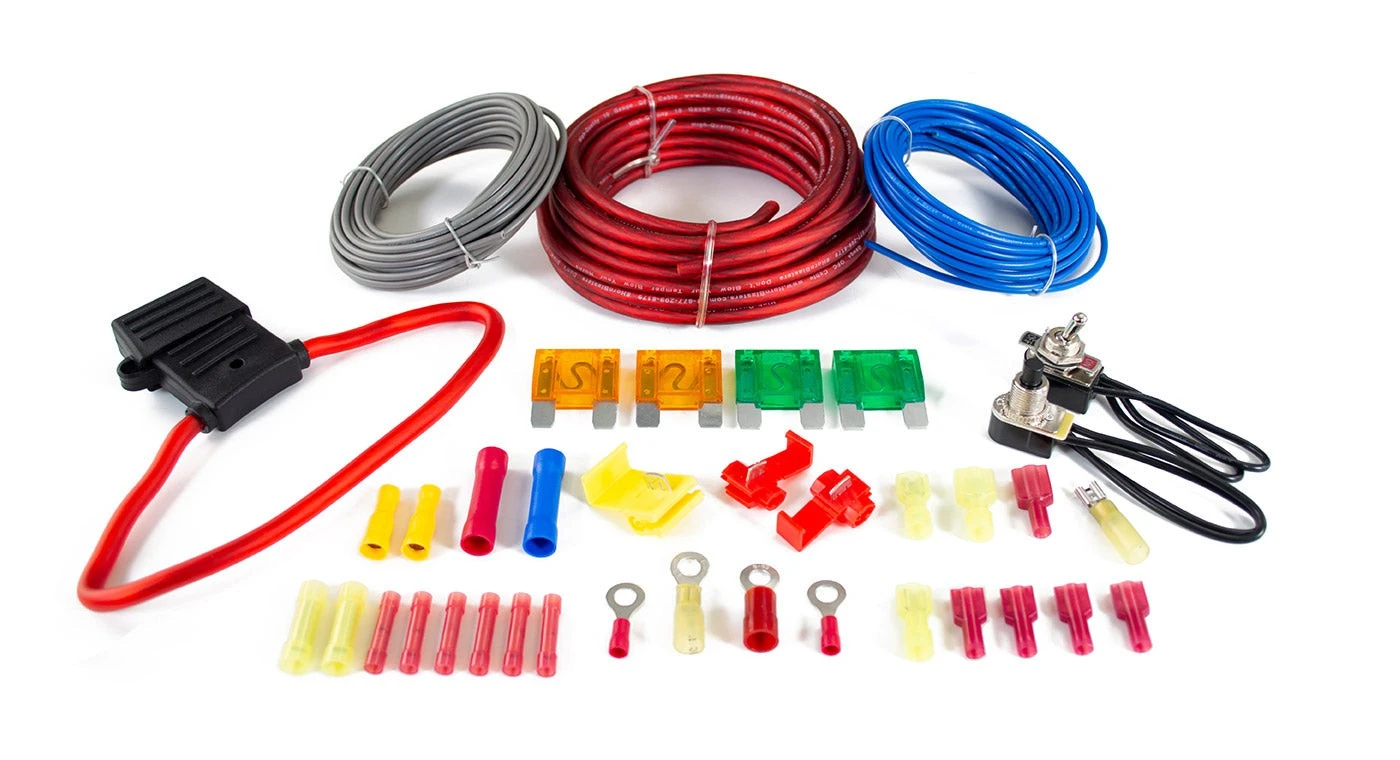

• Complete wiring kit with fuse holder & fuses
• All fittings & mounting hardware
• Air line cutter
• Earplugs
• Detailed instructions

• Part Number: HK-B4-228H
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn Air Inlet: 1/2″ air line
• Horn Length: 11.15″ (283.21 mm)
• Horn Width: 5.70″ (144.78 mm)
• Horn Height: 6.00″ (152.4 mm)
• Horn Weight: 5 lb (2.27 Kg)
• Air Unit: HornBlasters 228H air source unit
• Air Source Length: 18.9″ (480.6 mm)
• Air Source Width: 5.9″ (149.86 mm)
• Air Source Height: 13.7″ (347.98 mm)
• Air Source Weight: 17.15 lb (7.78 Kg)
• Air Tank: 2-gallon 5 port air tank
• Volume: 2 Gal (8.8 L)
• Air Compressor: 280C air compressor
• Max Amperage: 19 amps
• Maximum Duty Cycle: 30% @ 100 PSI

* Supply Voltage: 13.8 Volts

• HornAir 228H air source unit manual
• HornAir 228H air source unit dimensional drawing
• HornBlasters Bullet 228H instructions manual
