Battleship Horn Kit

DO YOU SPEAK BATTLESHIP? WE DO.

Upgrade to the king of the seas and the roads! Introducing the KM-135 Air Horn, fit for battleships, aircraft carriers, and now the baddest of the bad vehicles. This epic horn delivers a deep and thundering sound that will leave the paint on the walls, but just barely.

Don’t just settle for a horn, bring your set up to the next level with a purpose-built 5-gallon 8-port air tank. It’s not just for show, this tank has room for all your pneumatic needs, from tire inflation to air suspension.

Powering this beastly system is the heavy-duty HornBlasters 1NM compressor, capable of filling this mighty 5-gallon tank in just 2 minutes (± 10 sec.). Don’t be content with just any horn, upgrade to the KM-135 Air Horn and be the envy of all who hear you.

• Marine-Grade Power: Featuring the KM-135 Air Horn, originally designed for battleships and aircraft carriers, this kit brings a thunderous, paint-shaking sound to the toughest vehicles on the road.
• Multifunctional Air System: Equipped with a robust 5-gallon air tank, prepare for versatile pneumatic applications, from tire inflation to supplying air to air suspension.
• Quick Recovery: Driven by the heavy-duty HornBlasters 1NM compressor, this kit recovers in roughly 2 minutes, offering minimal downtime and maximum impact.
• Unparalleled Sound: Ensure your presence is unmistakably felt and heard for distances stretching up to 2-3 miles.

**Please note that these units must be delivered on a pallet, and as such, there is a $275 shipping charge. If delivery is to a residential address, it’s an additional $150 (This includes lift gate service). You will be contacted after you have made the purchase to confirm shipping arrangements.**

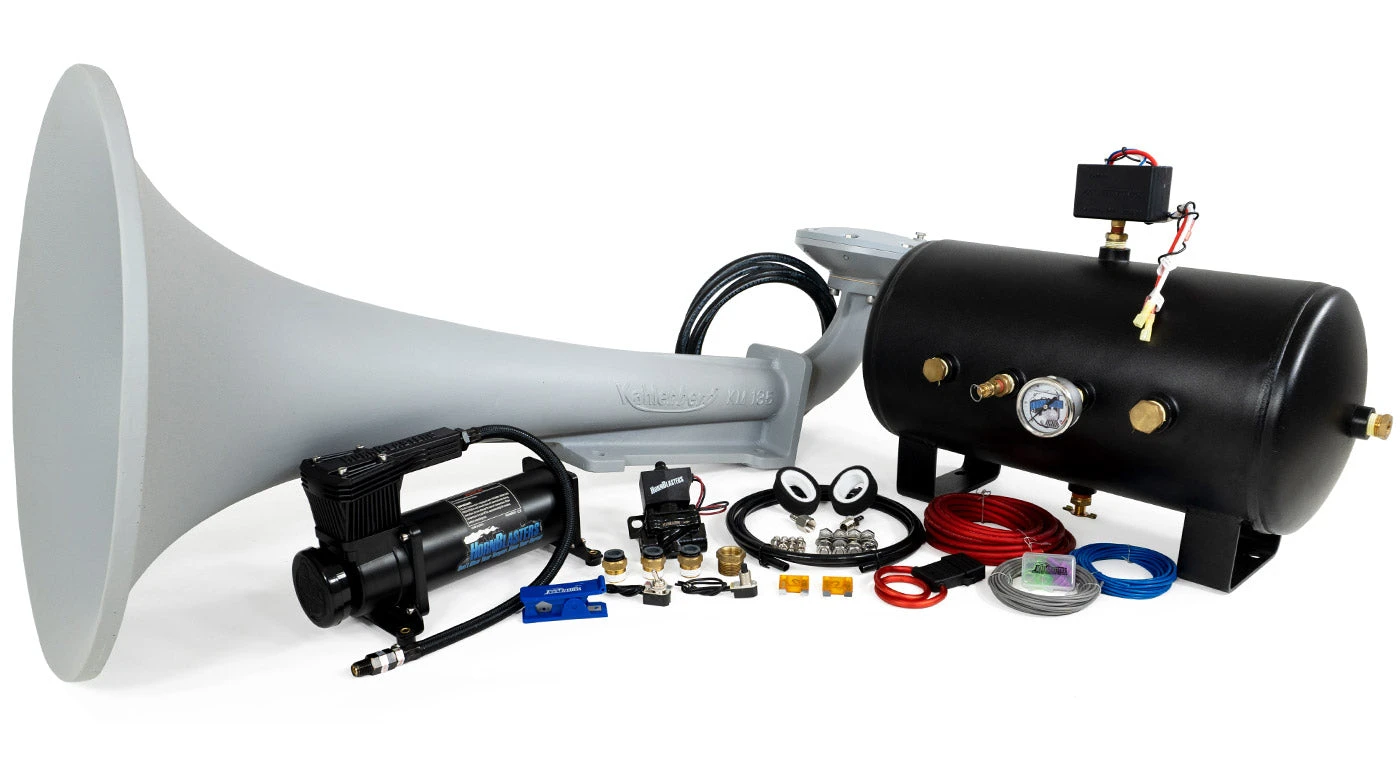

• Battleship Horn (KM135)
• 1/2″ NPT Black Widow stainless steel electric air valve
• 5-gallon 8 port air tank

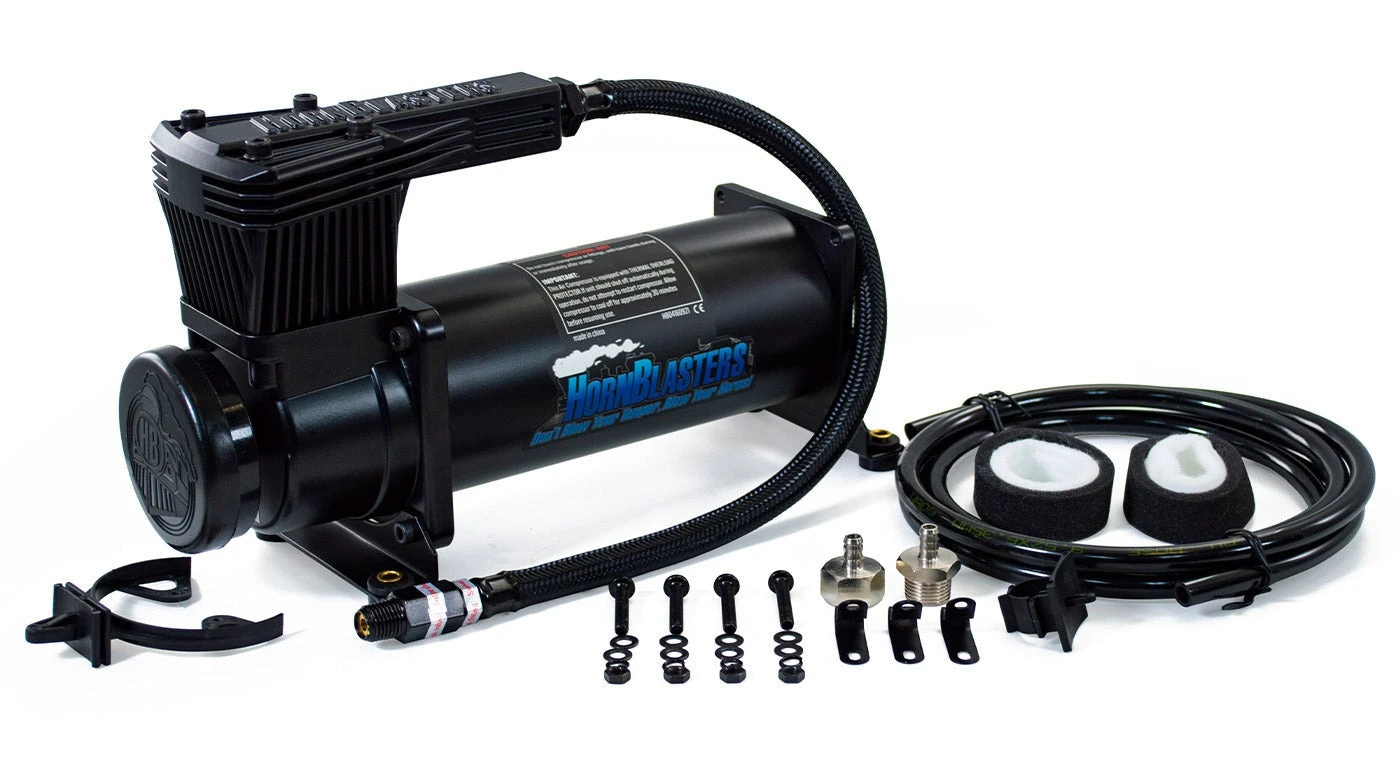

• HORNBLASTERS 1NM STEALTH BLACK Air Compressor
• 110/150 PSI pressure switch w/ 40 amp relay
• Remote mountable intake filter
• Spare air filter elements
• 17ft of 1/2″ D.O.T. approved air line
• 6 ft of 3/8″ air line (for air compressors air intake)
• HornBlasters 200 PSI stainless steel liquid-filled air gauge
• 22ft of 10-gauge red wire
• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire
• Complete wiring kit with fuse holder & fuses
• Brass NPT fitting kit with safety blowoff & drain cock
• Mounting hardware
• Air line cutter
• Detailed instructions
• Earplugs

• Part Number: HK-BS135-544K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC

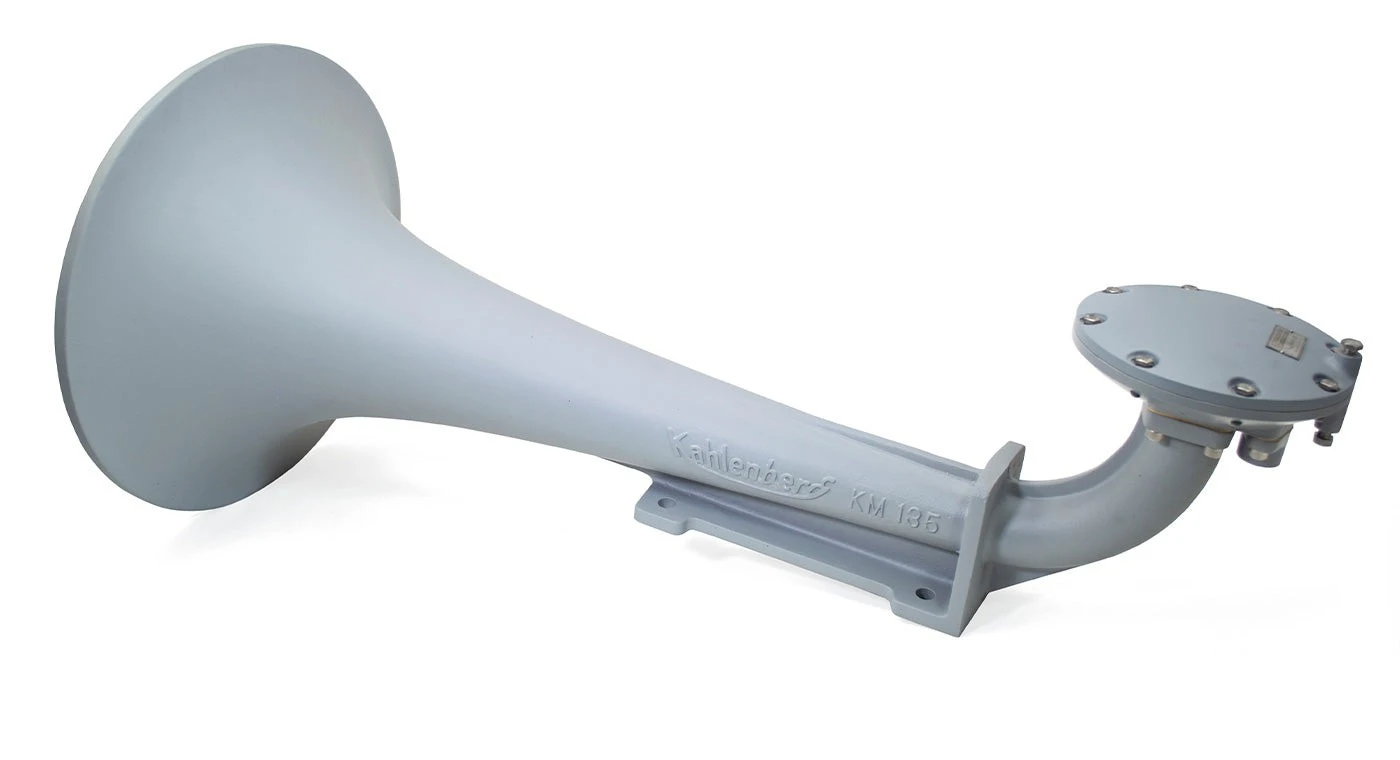

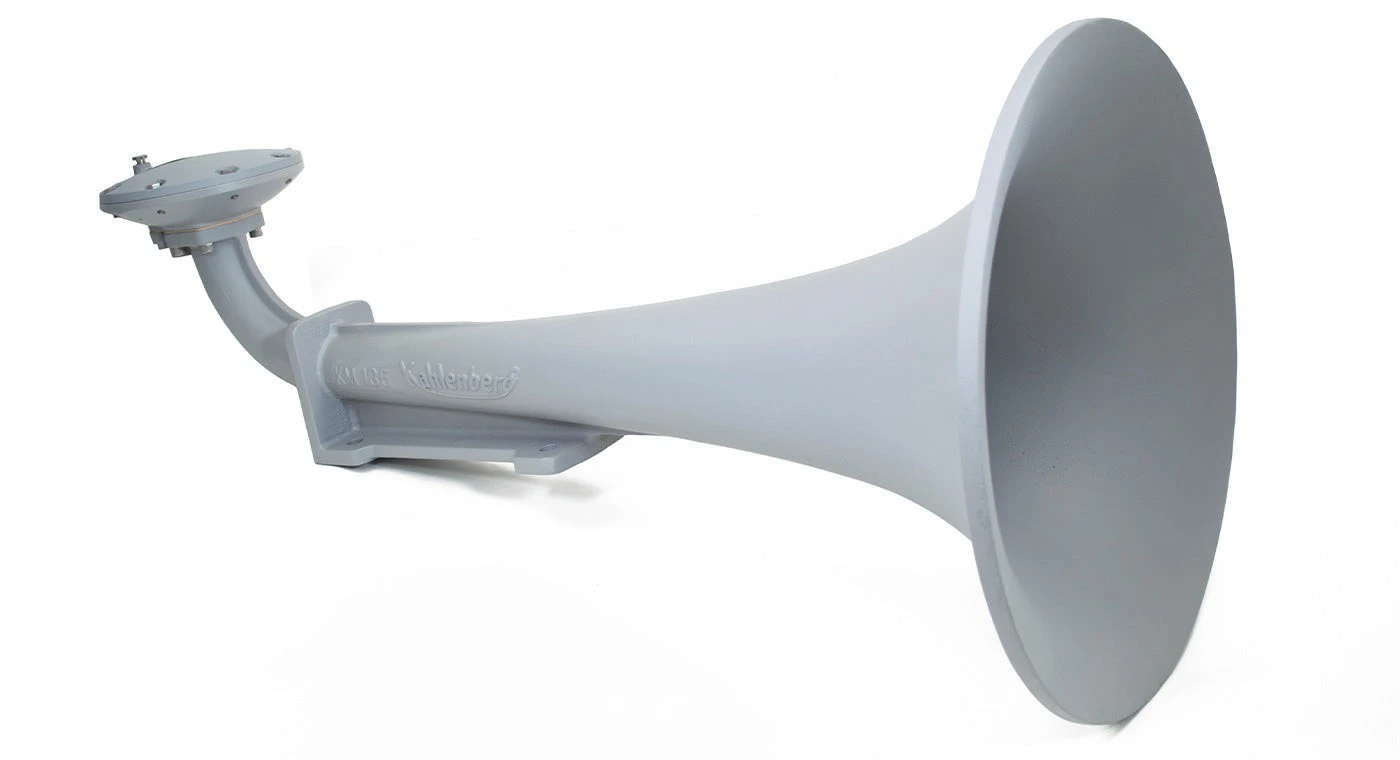

• Horn: BS135 Battleship Horn
• Horn Length: 42″ (1066.8 mm)
• Horn Width: 20″ (508 mm)
• Horn Height: 20″ (508 mm)
• Horn Weight: 45 lbs (14Kg)
• Horn Material: Cast Aluminum
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Tank Ports: x7 1/2″ NPT, x1 3/4″ NPT
• Max amperage: 25 Amps
• Maximum duty cycle: 100% @ 100 PSI
• Flow Rate @ 0 PSI: 1.75 CFM
• Maximum working pressure: 200 PSI
• Compressor length: 10.75″ (273.05 mm)
• Compressor width: 4″ (101.6 mm)
• Compressor height: 6.75″ (171.45 mm)

5-Gallon Air Tank Dimensional Drawing
